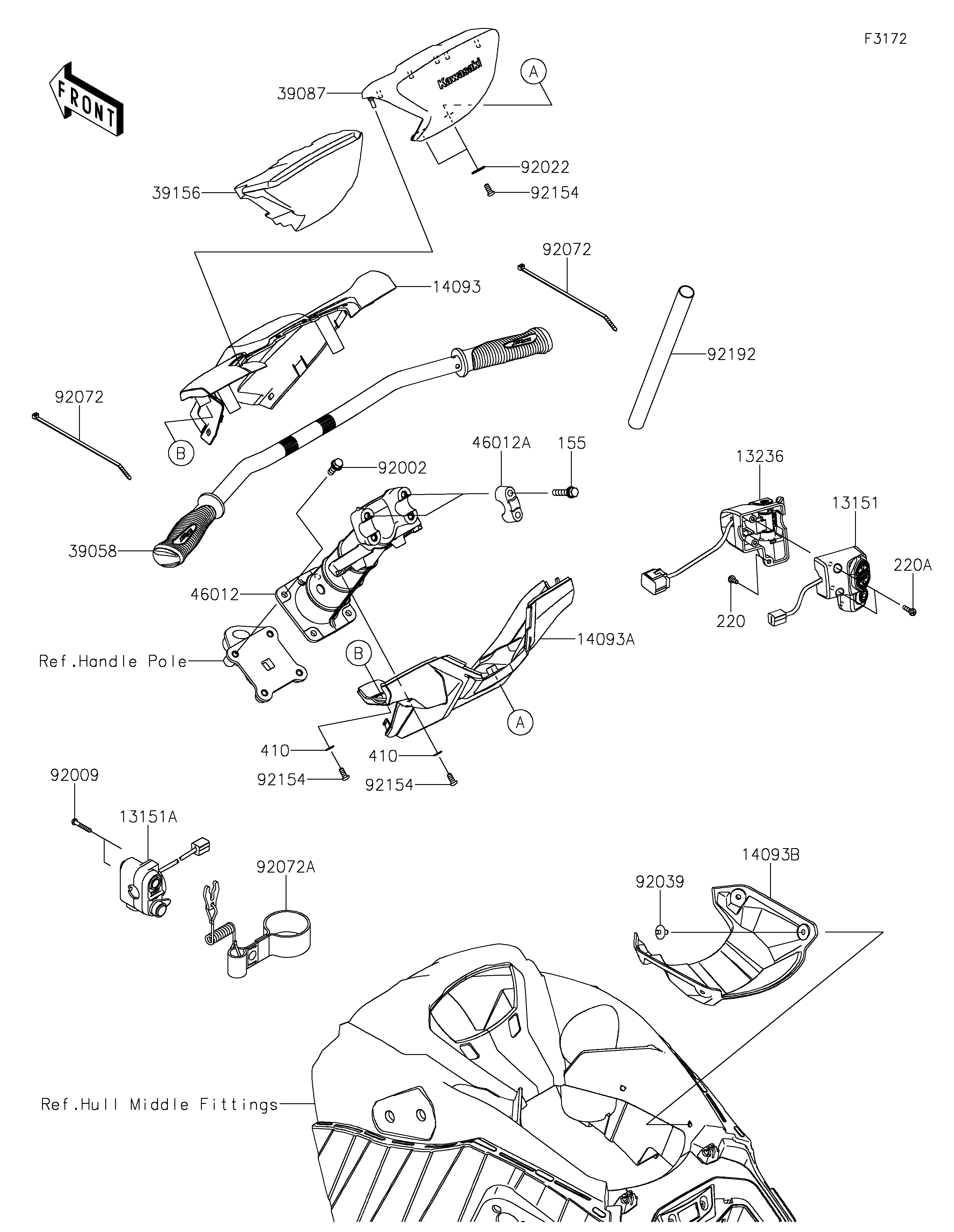

2022 JET SKI® STX® 160X - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13151
13151A
13236
14093
14093A
14093B
39058
39087
39156
46012
46012A
92002
92009
92022
92039
92072
92072
92072A
92154
92154
92154
92192
155
220
220A
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP 13151 13151-0587 1
SWITCH-COMP,STOP&START 13151A 13151-3722 1
LEVER-COMP,THROTTLE 13236 13236-0820 1
COVER,HOLDER,FR 14093 14093-0900 1
COVER,HOLDER,RR 14093A 14093-0901 1
COVER,HANDLE POLE 14093B 14093-1270 1
HANDLE-COMP,L.GREEN 39058 39058-0041-290 1
PAD-HANDLE,L.GREEN 39087 39087-0014-290 1
PAD,INNER 39156 39156-2457 1
HOLDER-HANDLE 46012 46012-0394 1
HOLDER-HANDLE,UPP 46012A 46012-3720 2
BOLT,8X25 92002 92002-3774 4
SCREW,5X30 92009 92009-3836 2
WASHER,6.5X20X1.5 92022 92022-3710 2
RIVET 92039 92039-3785 4
BAND,L=188.85 92072 92072-0105 2
BAND,TETHER SWITCH 92072A 92072-0891 1
BOLT,SOCKET,6X14 92154 92154-3988 8
TUBE,35X37X200 92192 92192-1990 1
BOLT-WSP-SMALL,8X40 155 155R0840 4
SCREW-PAN-CROS,5X14 220 220R0514 1
SCREW-PAN-CROS,5X25 220A 220R0525 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 6
