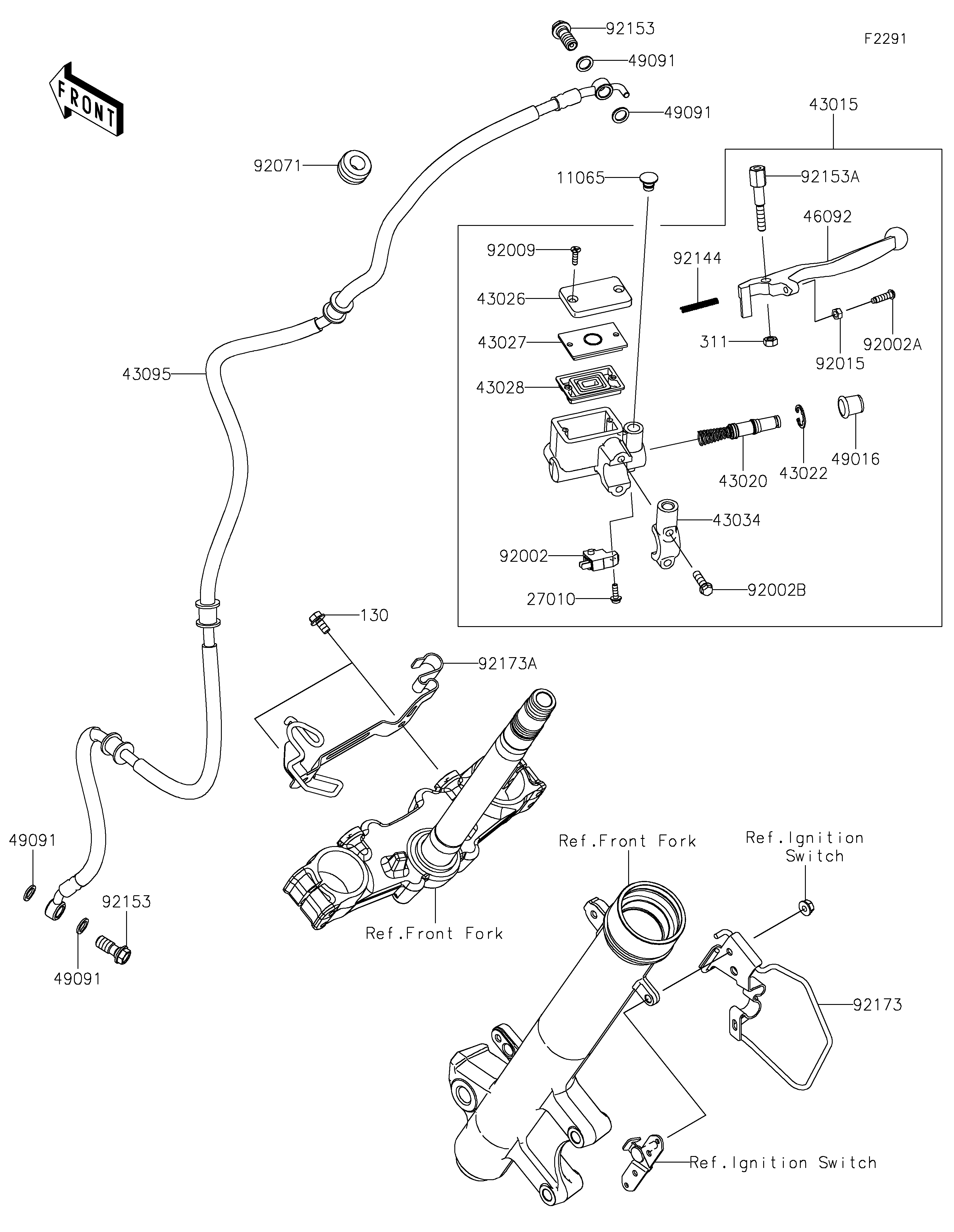

2023 KLR®650 Adventure - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11065
27010
43015
43020
43022
43026
43027
43028
43034
43095
46092
49016
49091
49091
49091
49091
92002
92002A
92002B
92009
92015
92071
92144
92153
92153
92153A
92173
92173A
130
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,DUMMY 11065 11065-0921 1
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0788 1
PISTON-COMP-BRAKE 43020 43020-1104 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-1057 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE 43034 43034-0145 1
HOSE-BRAKE,FR M/C-FR CALIPER 43095 43095-1882 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1175 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,ADJUST 92002A 92002-1893 1
BOLT 92002B 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,ADJUST 92015 92015-1642 1
GROMMET,12.2X26X16 92071 92071-0785 1
SPRING,RETURN 92144 92144-1103 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,LEVER SET 92153A 92153-0790 1
CLAMP 92173 92173-2348 1
CLAMP 92173A 92173-2350 1
BOLT-FLANGED,6X12 130 130BA0612 2
NUT-HEX,6MM 311 311BB0600 1
