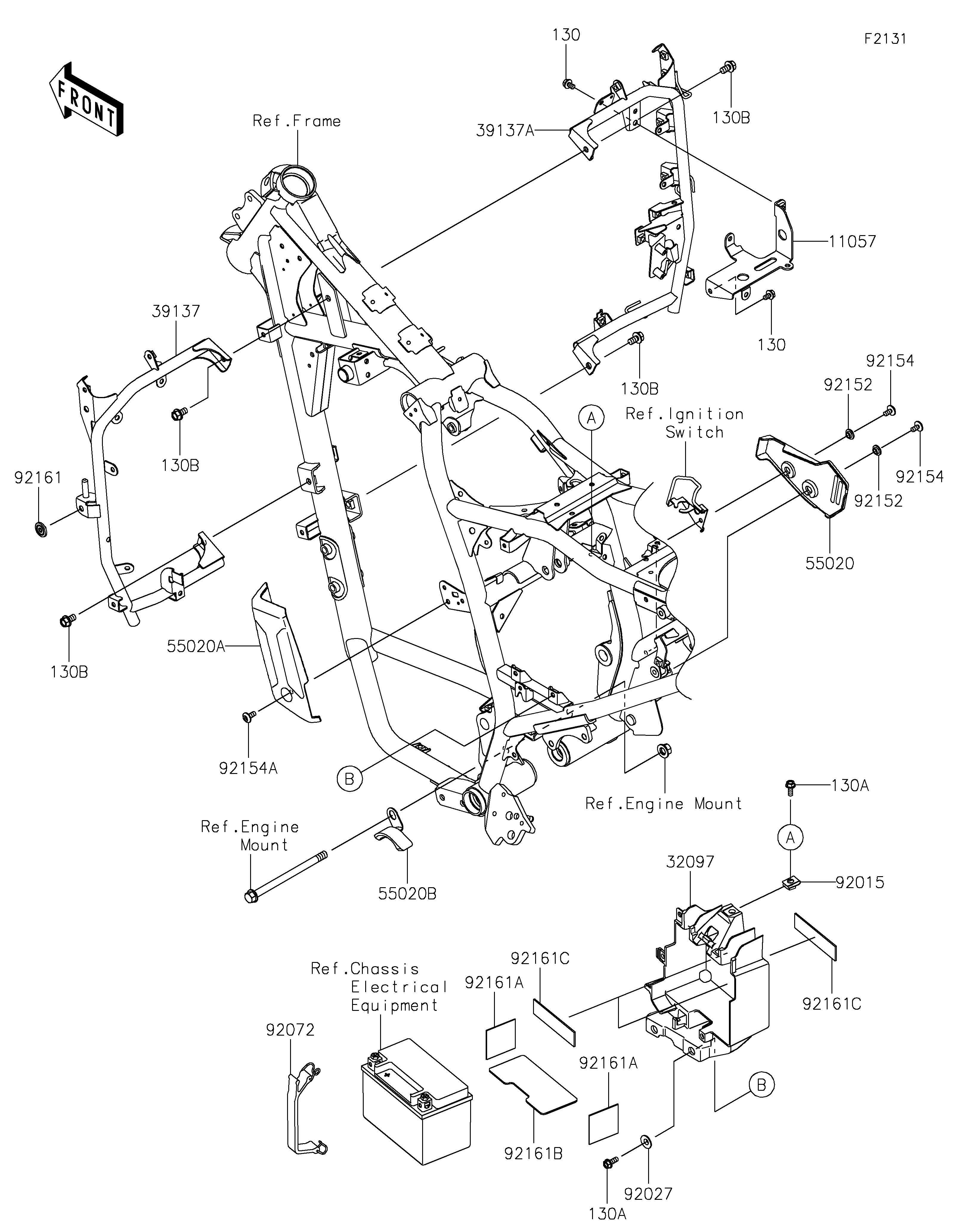

2023 KLR®650 Adventure - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
32097
39137
39137A
55020
55020A
55020B
92015
92027
92072
92152
92152
92154
92154
92154A
92161
92161A
92161A
92161B
92161C
92161C
130
130
130A
130A
130B
130B
130B
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11057 11057-7886 1
CASE-BATTERY 32097 32097-0565 1
STAY-COMP,LH 39137 39137-0710 1
STAY-COMP,RH 39137A 39137-0711 1
GUARD,HEEL 55020 55020-2330 1
GUARD 55020A 55020-2335 1
GUARD,CHAIN 55020B 55020-2390 1
NUT,6MM 92015 92015-1671 1
COLLAR 92027 92027-1794 2
BAND,BATTERY 92072 92072-0839 1
COLLAR,6.3X9.5X4.1 92152 92152-1571 2
BOLT,SOCKET,6X12 92154 92154-2706 2
BOLT,SOCKET,6X14 92154A 92154-4285 1
DAMPER,8X22X10 92161 92161-1685 1
DAMPER,60X140X1 92161A 92161-1868 2
DAMPER,BATTERY 92161B 92161-2353 1
DAMPER,25X100X2 92161C 92161-2354 3
BOLT-FLANGED,6X10 130 130BA0610 2
BOLT-FLANGED,6X16 130A 130BA0616 3
BOLT-FLANGED,8X14 130B 130BA0814 4
