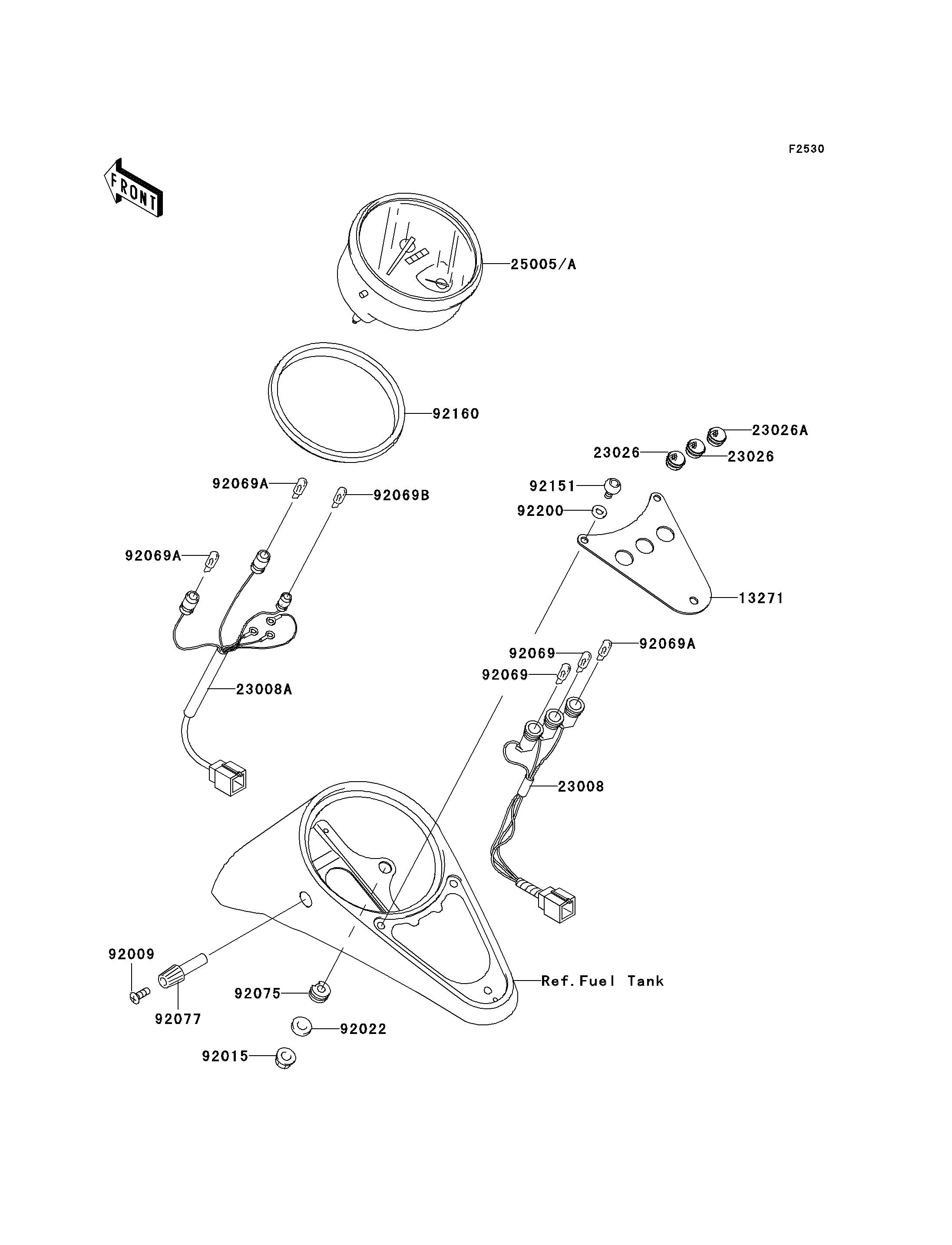

1999 Vulcan 1500 Drifter - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
13271
23008
23008A
23026
23026
23026A
92009
92015
92022
92069
92069
92069A
92069A
92069A
92069B
92075
92077
92151
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,PILOT LAMP 13271 13271-1142 1
SOCKET-ASSY,PILOT LAMP 23008 23008-1605 1
SOCKET-ASSY,SPEEDOMETER 23008A 23008-1613 1
LENS,GREEN 23026 23026-1171 2
LENS,BLUE 23026A 23026-1172 1
SCREW,3X8 92009 92009-1799 1
NUT,FLANGED,5MM 92015 92015-1259 2
WASHER,5.2X16X1.2 92022 92022-263 2
BULB,12V 3.4W,T10 92069 92069-1007 2
BULB,12V 1.7W,T10 92069A 92069-1059 3
BULB,12V 3W,T6.5 92069B 92069-1068 1
DAMPER,METER 92075 92075-1209 2
KNOB,TRIP 92077 92077-1117 1
BOLT,SOCKET,6X10 92151 92151-1449 3
DAMPER,METER 92160 92160-1713 1
WASHER,6.2X10X1 92200 92200-1465 3
SPEEDOMETER,MPH 25005 25005-1654 1 CAUS
SPEEDOMETER,KPH 25005A 25005-1657 1 CN
