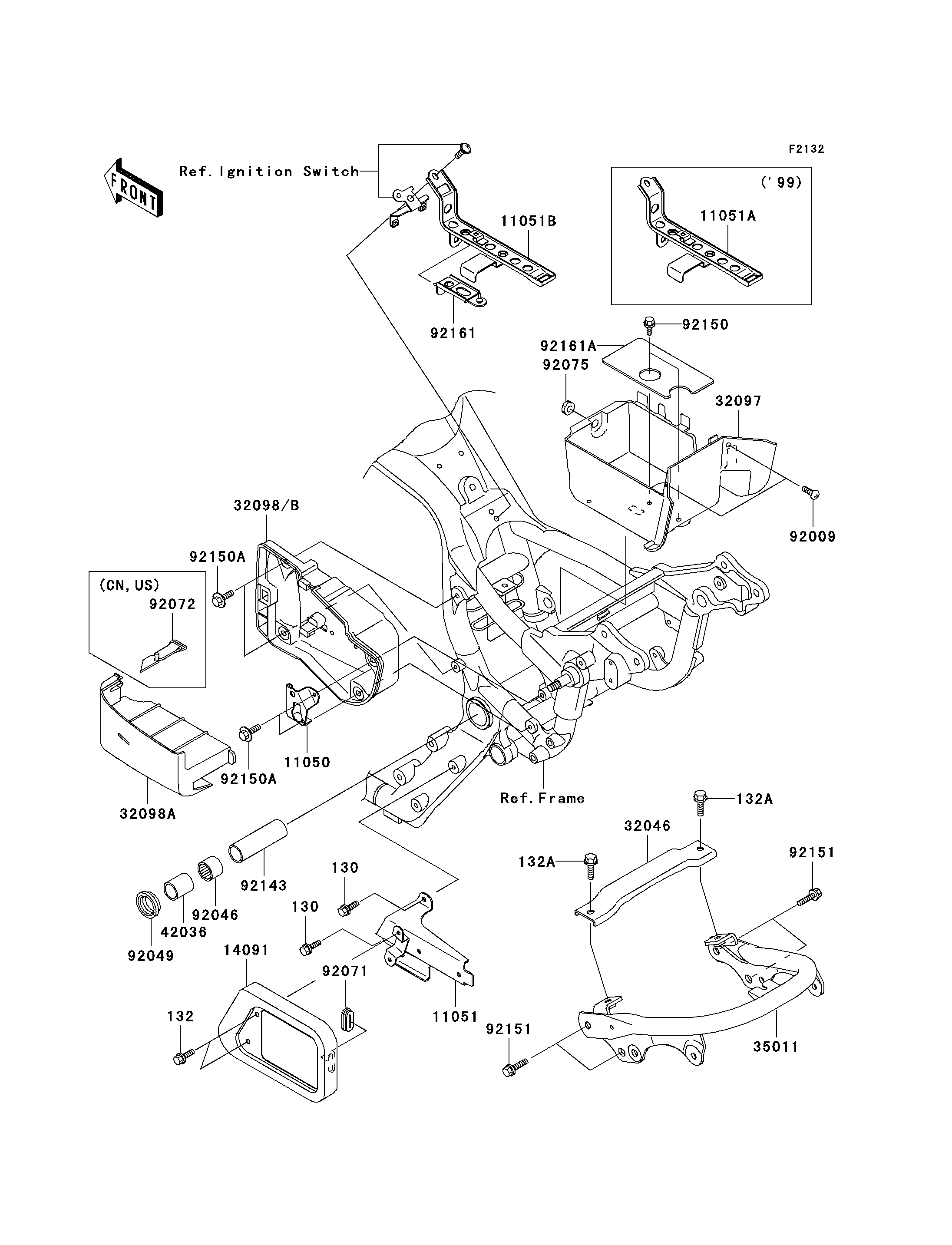

1999 Vulcan 1500 Drifter - Battery Case

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132A
132A
11050
11051
11051A
14091
32046
32097
32098A
35011
42036
92009
92046
92049
92071
92075
92143
92150
92150A
92150A
92151
92151
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0612 2
BOLT-FLANGED-SMALL 132 132E0612 2
BOLT-FLANGED-SMALL,8X16 132A 132J0816 2
BRACKET,SIDE COVER LOCK 11050 11050-1958 1
BRACKET,REGULATOR 11051 11051-1163 1
BRACKET,BATTERY BAND 11051A 11051-1798 1
COVER,REGULATOR 14091 14091-1079 1
BRACKET-SEAT 32046 32046-1478 1
CASE-BATTERY 32097 32097-1175 1
CASE-TOOL,COVER 32098A 32098-1126 1
STAY,SEAT 35011 35011-1968 1
SLEEVE,L=45 42036 42036-1330 2
SCREW,6X10 92009 92009-1402 2
BEARING-NEEDLE,BM2824 92046 92046-1202 2
SEAL-OIL 92049 92049-1181 2
GROMMET 92071 92071-1187 1
DAMPER 92075 92075-1067 1
COLLAR,20.2X27X90 92143 92143-1878 1
BOLT,6X14 92150 92150-1133 2
BOLT,6X16 92150A 92150-1198 4
BOLT,FLANGED,10X18 92151 92151-1440 4
DAMPER,BATTERY BAND 92161 92161-1096 1
DAMPER,BATTERY 92161A 92161-1097 1
CASE-TOOL 32098 32098-1125 1 CNUS
CASE-TOOL 32098B 32098-1127 1 CA
BAND,L=470 92072 92072-1331 1 CNUS
