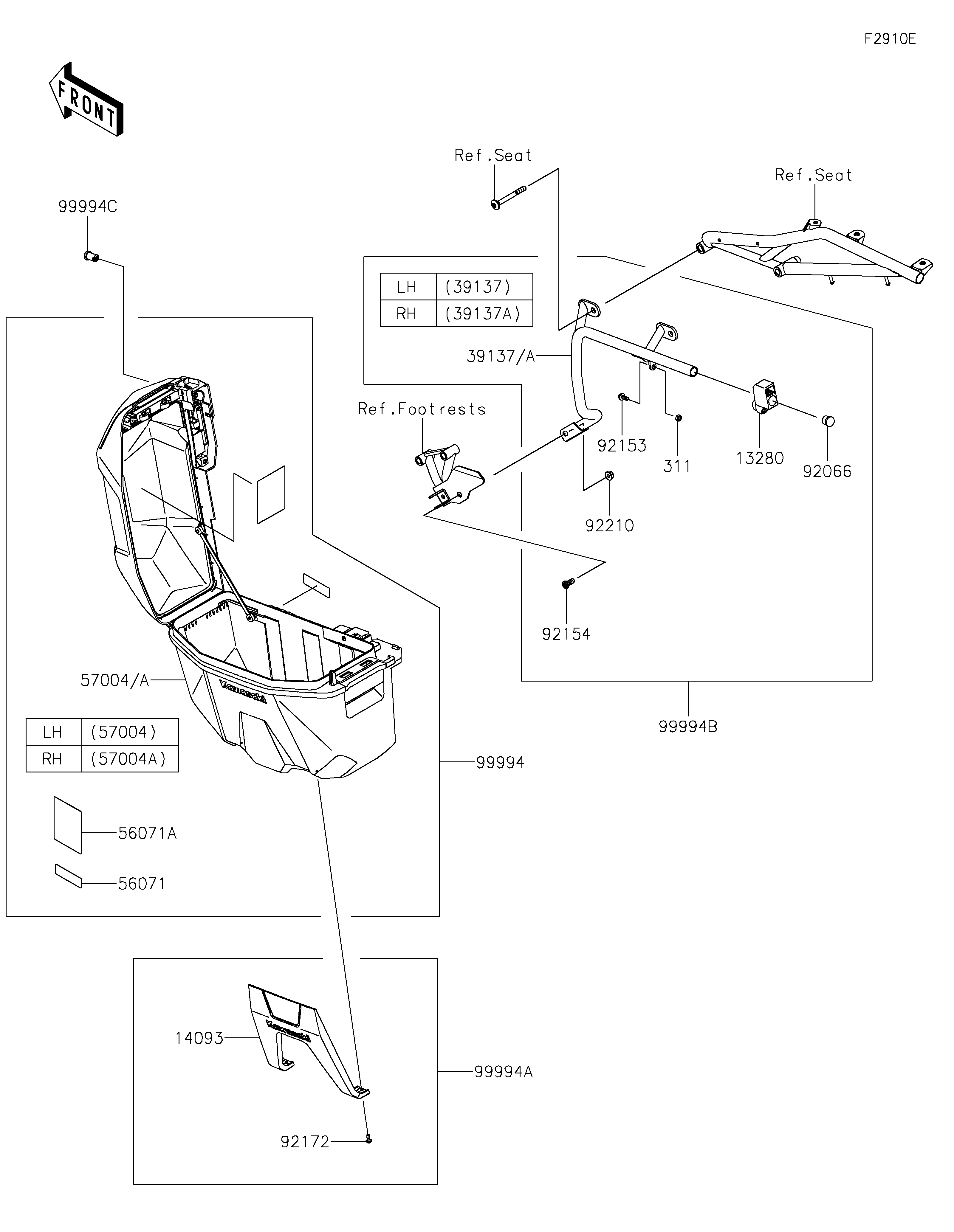

2022 KLR®650 - Accessory(Pannier Case)

DOWNLOAD PDF
SELECT A NEW PART
13280
14093
39137
39137A
56071
56071A
57004
57004A
92066
92153
92154
92172
92210
99994
99994A
99994B
99994C
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,PANNIER 13280 13280-1314 2
COVER,PANNIER,M.P.SILVER 14093 14093-1068-GU 2
STAY-COMP,LH 39137 39137-0708 1
STAY-COMP,RH 39137A 39137-0709 1
LABEL-WARNING,PICTOGRAM 56071 56071-0457 2
LABEL-WARNING,PICTOGRAM 56071A 56071-1042 2
BAG-ASSY,PANNIER,LH 57004 57004-0015 1
BAG-ASSY,PANNIER,RH 57004A 57004-0016 1
PLUG 92066 92066-1484 2
BOLT,FLANGED,6X14 92153 92153-1571 2
BOLT,SOCKET8X20 92154 92154-1711 2
SCREW,SOCKET,5X14 92172 92172-0823 4
NUT,FLANGED,8MM 92210 92210-0304 2
SIDECASES 99994 99994-1490 1
PANEL-SIDECASES,M.P.SILVER 99994A 99994-1491-GU 1
FITTING-SIDECASES 99994B 99994-1492 1
ROTOR(2PC) 99994C 99994-1566 1
NUT-HEX,6MM 311 311BA0600 2
