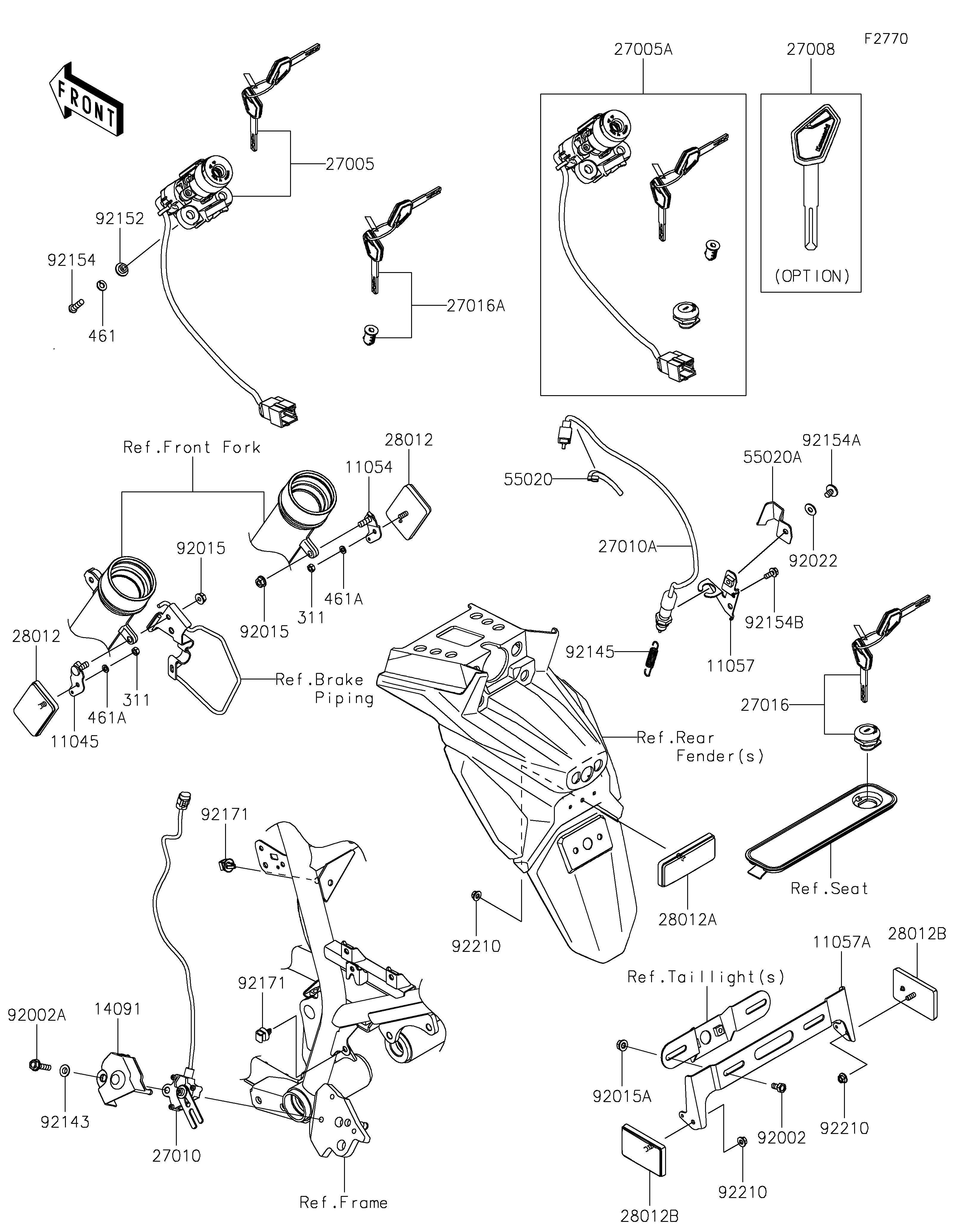

2022 KLR®650 - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
11045
11054
11057
11057A
14091
27005
27005A
27008
27010
27010A
27016
27016A
28012
28012
28012A
28012B
28012B
55020
55020A
92002
92002A
92015
92015
92015A
92022
92143
92145
92152
92154
92154A
92154B
92171
92171
92210
92210
92210
311
311
461
461A
461A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR,FR 11045 11045-1354 1
BRACKET,REFLECTOR,FR 11054 11054-1889 1
BRACKET,REAR BRAKE 11057 11057-4313 1
BRACKET,REFLECTOR,RR 11057A 11057-4368 1
COVER,SIDE STAND SWITCH 14091 14091-1553 1
SWITCH-ASSY-IGNITION 27005 27005-0702 1
SWITCH-ASSY-IGNITION 27005A 27005-5189 1
KEY-LOCK,BLANK 27008 27008-0688 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0118 1
SWITCH,REAR BRAKE 27010A 27010-0969 1
LOCK-ASSY,TOOL COVER 27016 27016-5419 1
LOCK-ASSY,TANK CAP 27016A 27016-5421 1
REFLECTOR-REFLEX 28012 28012-1003 2
REFLECTOR-REFLEX 28012A 28012-1077 1
REFLECTOR-REFLEX 28012B 28012-1088 2
GUARD,50X30 55020 55020-2334 1
GUARD,REAR BRAKE 55020A 55020-2378 1
BOLT,6X12 92002 92002-1132 2
BOLT,FLANGED,6X25 92002A 92002-1582 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 2
NUT,FLANGED,6MM 92015A 92015-1367 2
WASHER,6.2X15X1.2 92022 92022-2373 1
COLLAR 92143 92143-1331 1
SPRING,REAR BRAKE 92145 92145-1896 1
COLLAR,6.15X10.15X6 92152 92152-1535 2
BOLT,TORX,6X22 92154 92154-1858 2
BOLT,SOCKET,6X10 92154A 92154-2558 1
BOLT,FLANGED,5X12 92154B 92154-2893 1
CLAMP 92171 92171-0640 2
NUT,FLANGED,5MM 92210 92210-0007 3
NUT-HEX,5MM 311 311AB0500 2
WASHER-SPRING,6MM 461 461DA0600 2
WASHER-SPRING,5MM 461A 461DB0500 2
