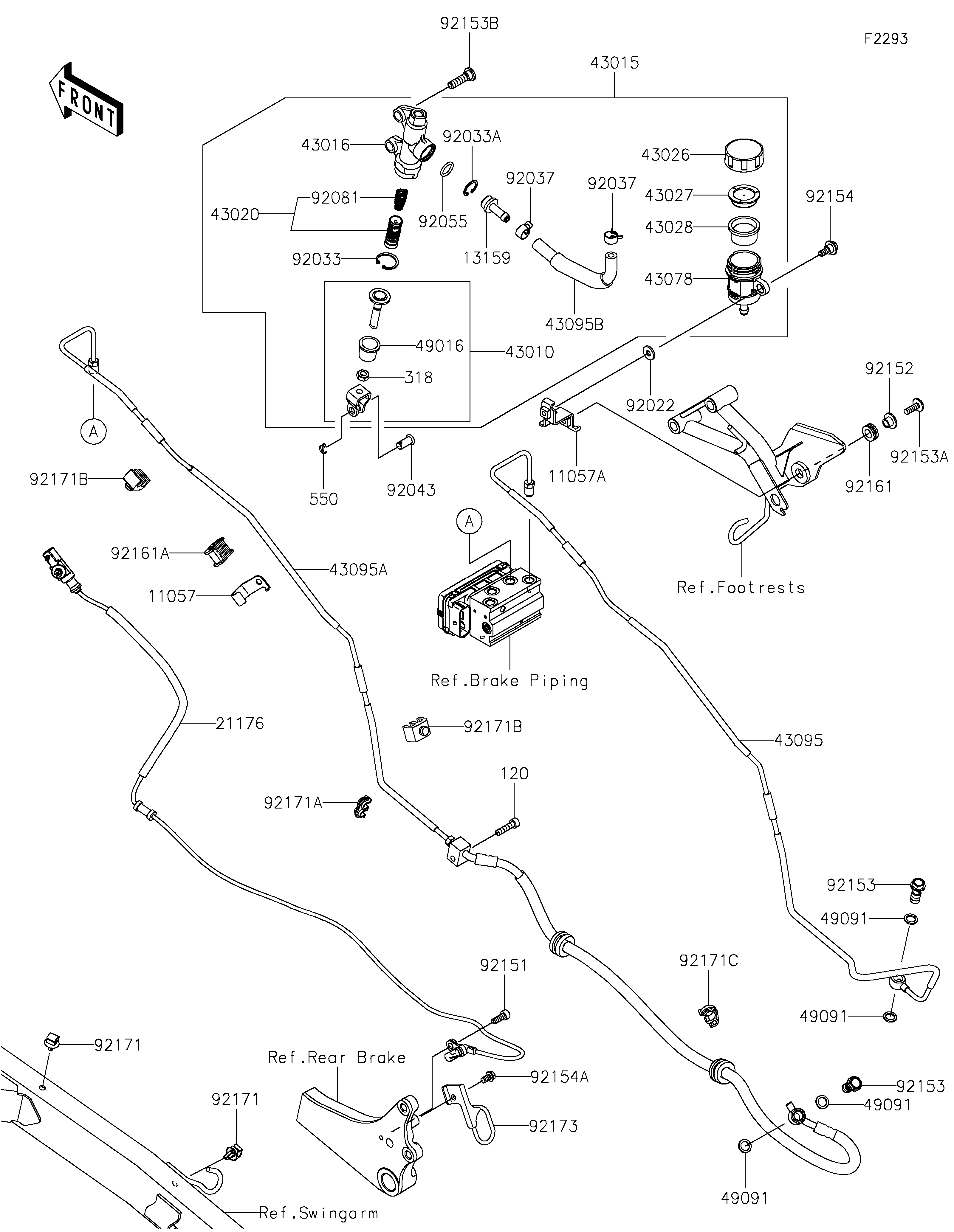

2022 KLR®650 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
11057A
13159
13159
21176
21176
43010
43010
43015
43015
43016
43016
43020
43020
43026
43026
43027
43027
43028
43028
43078
43078
43095
43095
43095A
43095A
43095B
43095B
49016
49016
49091
49091
49091
49091
49091
49091
49091
49091
92022
92022
92033
92033
92033A
92033A
92037
92037
92037
92037
92043
92043
92055
92055
92081
92081
92151
92151
92152
92152
92153
92153
92153
92153
92153A
92153A
92153B
92153B
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92171
92171
92171
92171
92171A
92171A
92171B
92171B
92171B
92171B
92171C
92171C
92173
92173
120
120
318
318
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE HOSE 11057 11057-4377 1
BRACKET,RR MASTER CYLINDER 11057A 11057-4396 1
CONNECTOR 13159 13159-1065 1
SENSOR,SPEED,RR 21176 21176-0995 1
ROD-ASSY-BRAKE 43010 43010-0031 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0777 1
CYLINDER-MASTER,RR 43016 43016-1208 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-0009 1
PLATE-DIAPHRAGM 43027 43027-1053 1
DIAPHRAGM 43028 43028-1065 1
RESERVOIR 43078 43078-0060 1
HOSE-BRAKE,RR M/C-ABS UNIT 43095 43095-1758 1
HOSE-BRAKE,ABS UNIT-RR CALIPER 43095A 43095-1759 1
HOSE-BRAKE 43095B 43095-1762 1
COVER-SEAL,BRAKE PISTON 49016 49016-1103 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
WASHER,6.5X16X2 92022 92022-1565 1
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
CLAMP 92037 92037-1710 2
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT 92151 92151-1166 1
COLLAR 92152 92152-2770 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,6X18 92153A 92153-0816 1
BOLT,SOCKET,8X30 92153B 92153-1624 2
BOLT 92154 92154-0929 1
BOLT,FLANGED,6X10 92154A 92154-0950 1
DAMPER,10X18X6.5 92161 92161-2091 1
DAMPER 92161A 92161-2387 1
CLAMP 92171 92171-0640 2
CLAMP 92171A 92171-0817 1
CLAMP 92171B 92171-0818 2
CLAMP,BRAKE HOSE 92171C 92171-1819 1
CLAMP 92173 92173-2454 1
BOLT-SOCKET,6X25 120 120CB0625 1
NUT-HEX-SMALL,8MM 318 318BA0800 1
PIN-COTTER,2.0X15 550 550AA2015 1
