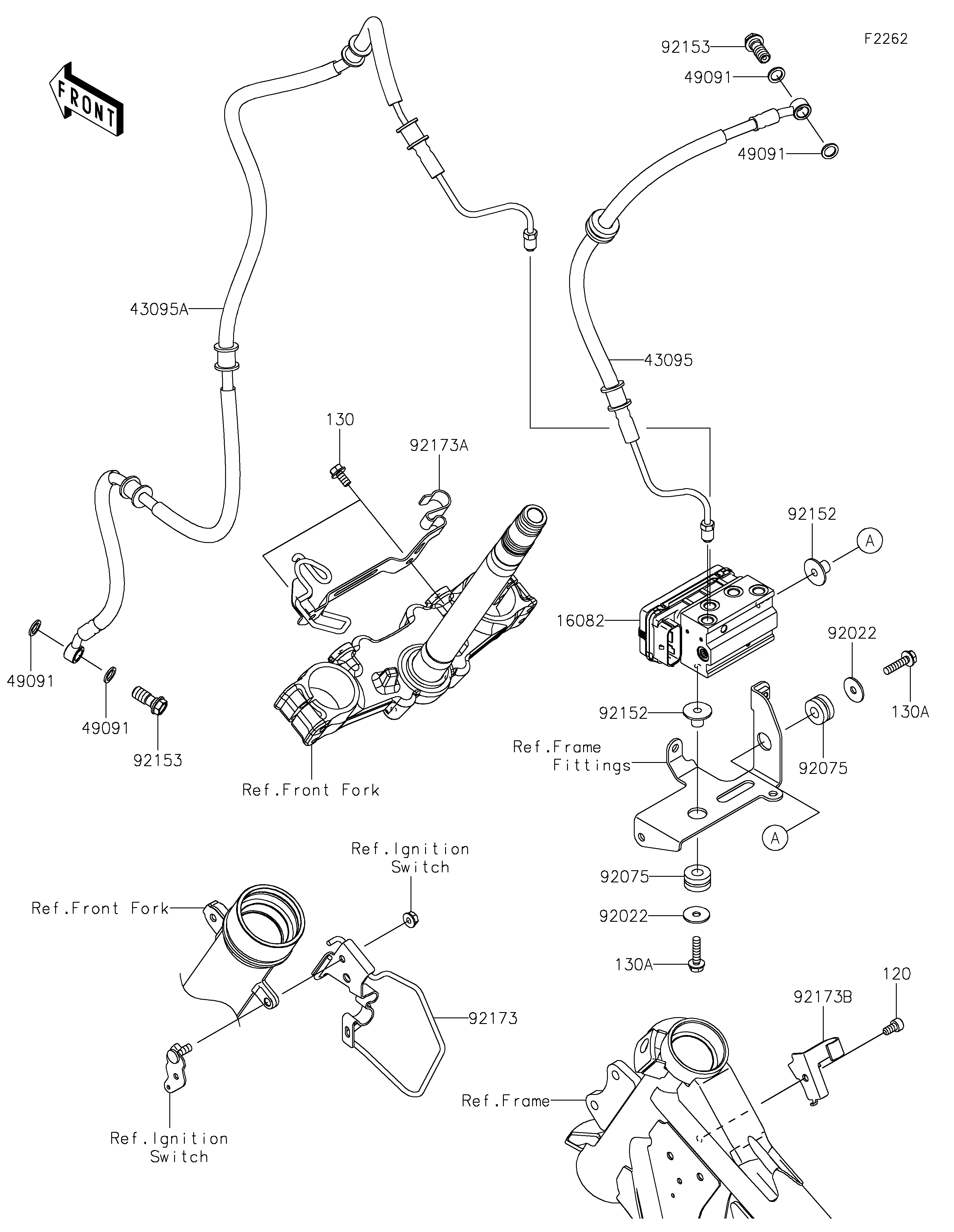

Parts Diagrams |
16082
43095
43095A
49091
49091
49091
49091
92022
92022
92075
92075
92152
92152
92153
92153
92173
92173A
92173B
120
130
130A
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PUMP-ASSY-OIL,ABS,BOSCH,10MB | 16082 | 16082-0852 | 1 | ||
| HOSE-BRAKE,FR M/C-ABS UNIT | 43095 | 43095-1756 | 1 | ||
| HOSE-BRAKE,ABS UNIT-FR CALIPER | 43095A | 43095-1757 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 4 | ||
| WASHER,6.5X22X1.6 | 92022 | 92022-237 | 2 | ||
| DAMPER | 92075 | 92075-209 | 2 | ||
| COLLAR,6.5X10X13.6 | 92152 | 92152-2204 | 2 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 2 | ||
| CLAMP | 92173 | 92173-2348 | 1 | ||
| CLAMP | 92173A | 92173-2350 | 1 | ||
| CLAMP | 92173B | 92173-2352 | 1 | ||
| BOLT-SOCKET,6X12 | 120 | 120CA0612 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 | ||
| BOLT-FLANGED,6X25 | 130A | 130BA0625 | 2 |
