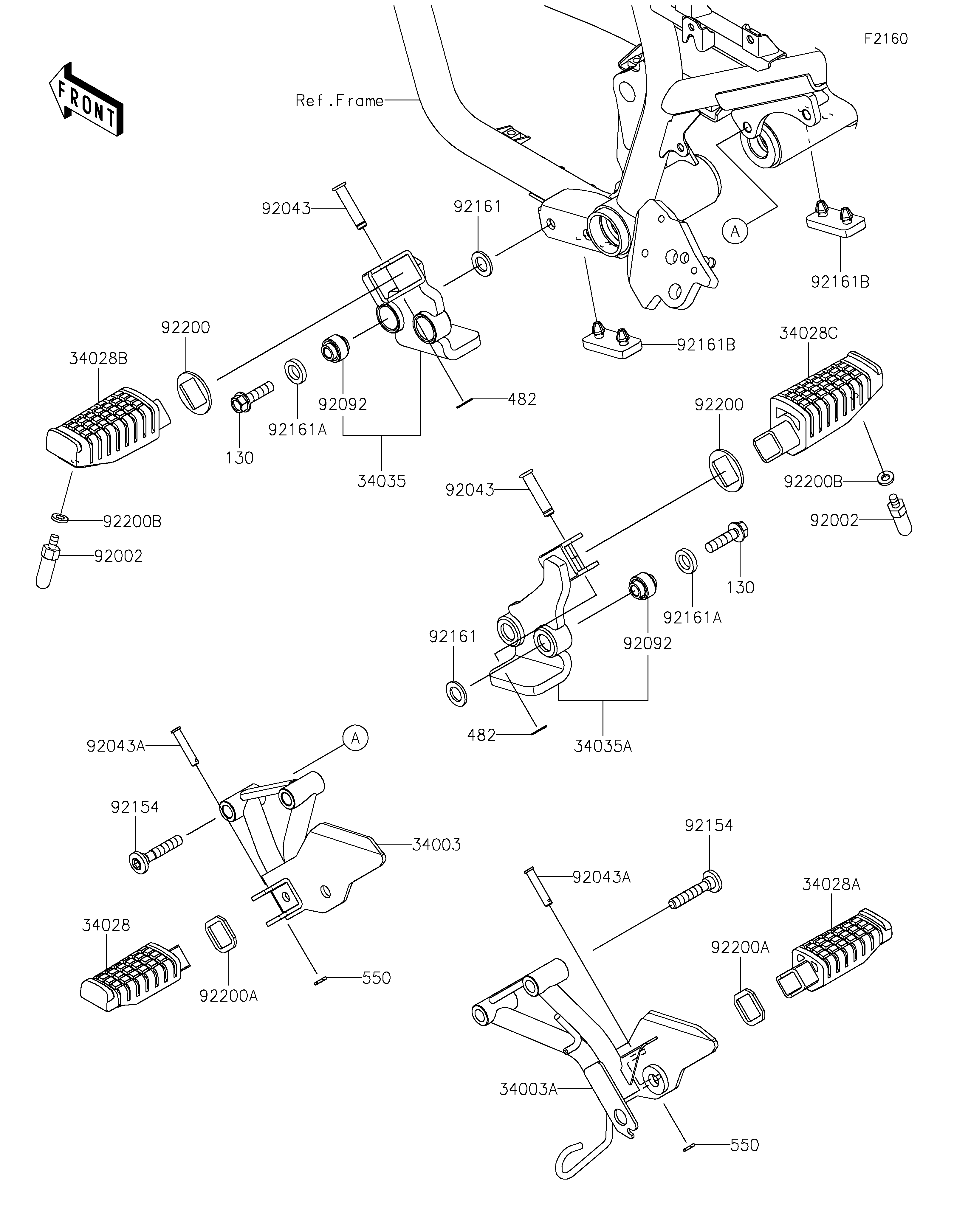

2022 KLR®650 - Footrests

DOWNLOAD PDF
SELECT A NEW PART
34003
34003A
34028
34028A
34028B
34028C
34028D
34028E
34035
34035A
34035B
34035C
92002
92002
92043
92043
92043A
92043A
92092
92092
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
130
130
482
482
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,RR,LH,F.S.BLACK 34003 34003-0185-18R 1
HOLDER-STEP,RR,RH,F.S.BLACK 34003A 34003-0193-18R 1
STEP,RR,LH 34028 34028-0134 1
STEP,RR,RH 34028A 34028-0135 1
STEP,FR,LH 34028B 34028-0136 1 ( - ML5KLEF1 NDA08566)
STEP,FR,RH 34028C 34028-0137 1 ( - ML5KLEF1 NDA08566)
STEP,FR,LH 34028D 34028-0402 1 (ML5KLEF1 NDA08567 - )
STEP,FR,RH 34028E 34028-0403 1 (ML5KLEF1 NDA08567 - )
HOLDER-ASSY-STEP,FR,LH 34035 34035-0001 1 ( - ML5KLEF1 NDA08566)
HOLDER-ASSY-STEP,FR,RH 34035A 34035-0002 1 ( - ML5KLEF1 NDA08566)
HOLDER-ASSY-STEP,FR,LH 34035B 34035-0003 1 (ML5KLEF1 NDA08567 - )
HOLDER-ASSY-STEP,FR,RH 34035C 34035-0004 1 (ML5KLEF1 NDA08567 - )
BOLT,BANK SENSOR 92002 92002-1995 2
PIN,8X36.5 92043 92043-1339 2
PIN,6X28 92043A 92043-1464 2
BUSHING-RUBBER,8.4X20X18 92092 92092-0039 4
BOLT,SOCKET,8X44 92154 92154-4427 4
DAMPER,12.5X21X2 92161 92161-0943 4
DAMPER,12.5X20X4 92161A 92161-0944 4
DAMPER 92161B 92161-2391 2
WASHER,FR STEP 92200 92200-0560 2 ( - ML5KLEF1 NDA08566)
WASHER,RR STEP 92200A 92200-0561 2
WASHER,6.5X13X2.0 92200B 92200-0562 2
WASHER,FR STEP 92200C 92200-2537 2 (ML5KLEF1 NDA08567 - )
BOLT-FLANGED,8X30 130 130CA0830 4
CIRCLIP-TYPE-E 482 482EA7000 2
PIN-COTTER,2.0X15 550 550AA2015 2
