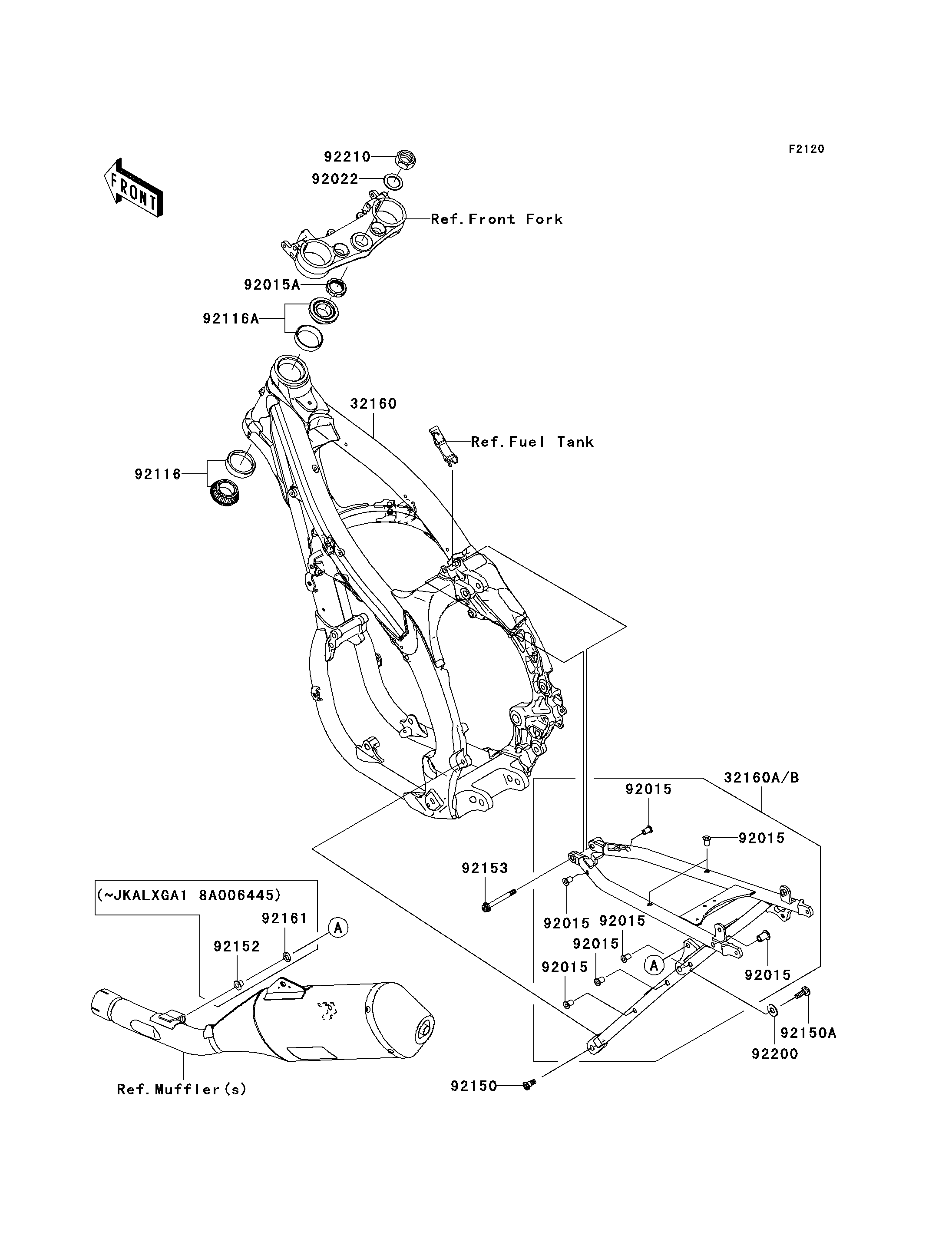

Parts Diagrams |
32160
32160A
32160B
92015
92015
92015
92015
92015
92015
92015
92015A
92022
92116
92116A
92150
92150A
92152
92153
92161
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME-COMP,FR | 32160 | 32160-0225 | 1 | ||
| FRAME-COMP,RR | 32160A | 32160-0288 | 1 | ( - JKALXGA1 8A006445) | |
| FRAME-COMP,RR | 32160B | 32160-0333 | 1 | (JKALXGA1 8A006446 - ) | |
| NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 8 | ||
| NUT,STEERING STEM,28MM | 92015A | 92015-1861 | 1 | ||
| WASHER,25X36X2.3 | 92022 | 92022-250 | 1 | ||
| BEARING-ROLLER,HI-CAP32006JRRS | 92116 | 92116-1069 | 1 | ||
| BEARING-ROLLER,HI-CAP320/28JRR | 92116A | 92116-1076 | 1 | ||
| BOLT,SOCKET,8X20 | 92150 | 92150-1760 | 1 | ||
| BOLT,8X25 | 92150A | 92150-1845 | 1 | ||
| COLLAR | 92152 | 92152-0624 | 1 | ( - JKALXGA1 8A006445) | |
| BOLT,SOCKET,8X74 | 92153 | 92153-1790 | 1 | ||
| DAMPER | 92161 | 92161-0564 | 1 | ( - JKALXGA1 8A006445) | |
| WASHER,10.5X24X1.5 | 92200 | 92200-0154 | 1 | ||
| NUT,24MM | 92210 | 92210-0066 | 1 |
| FRAME-COMP,FR | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,RR | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALXGA1 8A006445) |
| FRAME-COMP,RR | |
| REF # | 32160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (JKALXGA1 8A006446 - ) |
| NUT,POP,6MM,L=15 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,STEERING STEM,28MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,25X36X2.3 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP32006JRRS | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP320/28JRR | |
| REF # | 92116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X25 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALXGA1 8A006445) |
| BOLT,SOCKET,8X74 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | ( - JKALXGA1 8A006445) |
| WASHER,10.5X24X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,24MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
