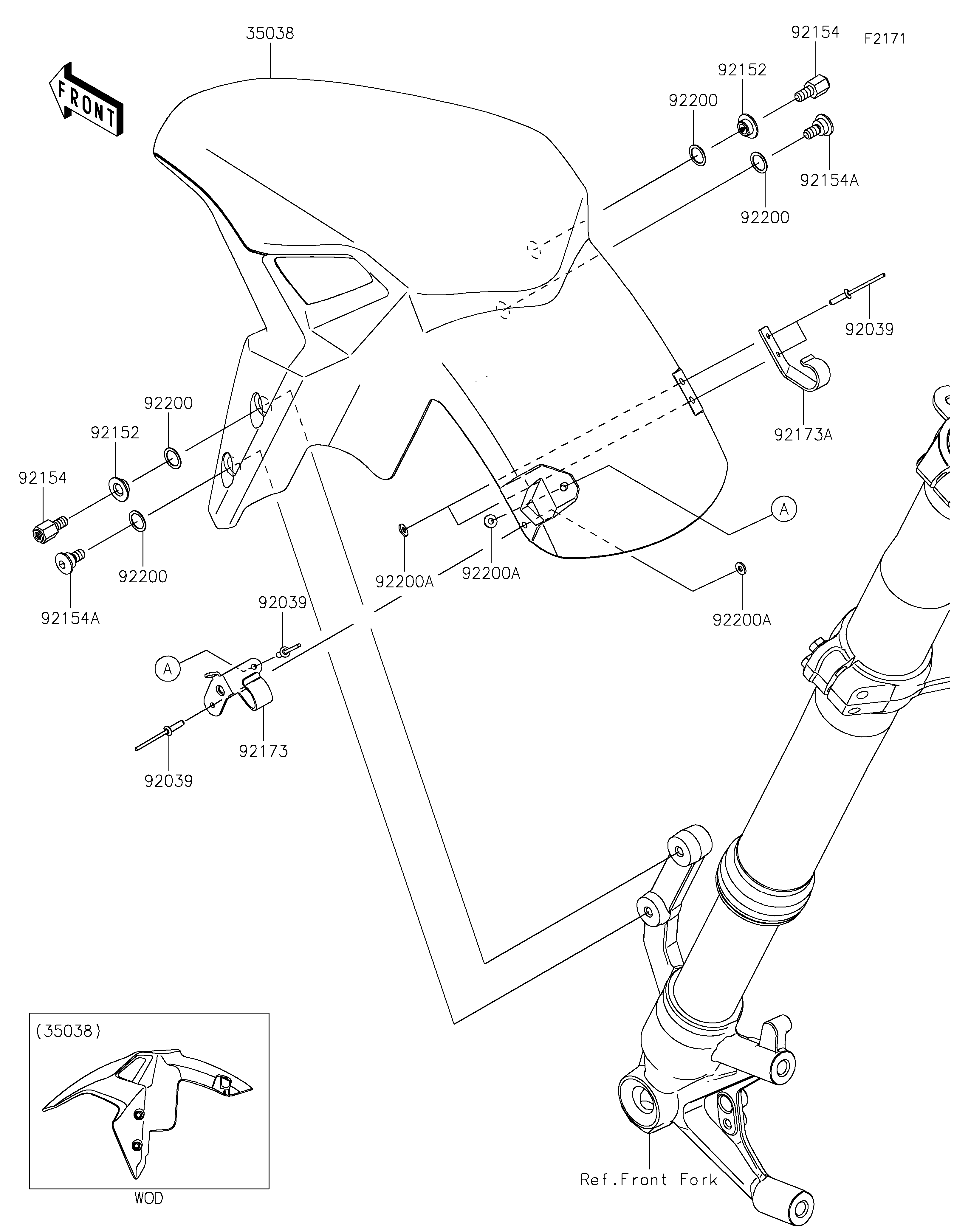

Parts Diagrams |
35038
92039
92039
92039
92152
92152
92154
92154
92154A
92154A
92173
92173A
92200
92200
92200
92200
92200A
92200A
92200A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FRONT,M.S.BLACK | 35038 | 35038-0023-660 | 1 | ||
| RIVET,3.2X9.5 | 92039 | 92039-0752 | 4 | ||
| COLLAR,6.5X10X5.3 | 92152 | 92152-1863 | 2 | ||
| BOLT,6MM | 92154 | 92154-0746 | 2 | ||
| BOLT,SOCKET,6X15 | 92154A | 92154-2660 | 2 | ||
| CLAMP,LH | 92173 | 92173-1600 | 1 | ||
| CLAMP,RH | 92173A | 92173-1601 | 1 | ||
| WASHER,10.4X14X0.5 | 92200 | 92200-1880 | 4 | ||
| WASHER,3.5X8X1 | 92200A | 92200-2480 | 4 |
| FENDER-FRONT,M.S.BLACK | |
| REF # | 35038 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET,3.2X9.5 | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X5.3 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X15 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,LH | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,RH | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.4X14X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,3.5X8X1 | |
| REF # | 92200A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
