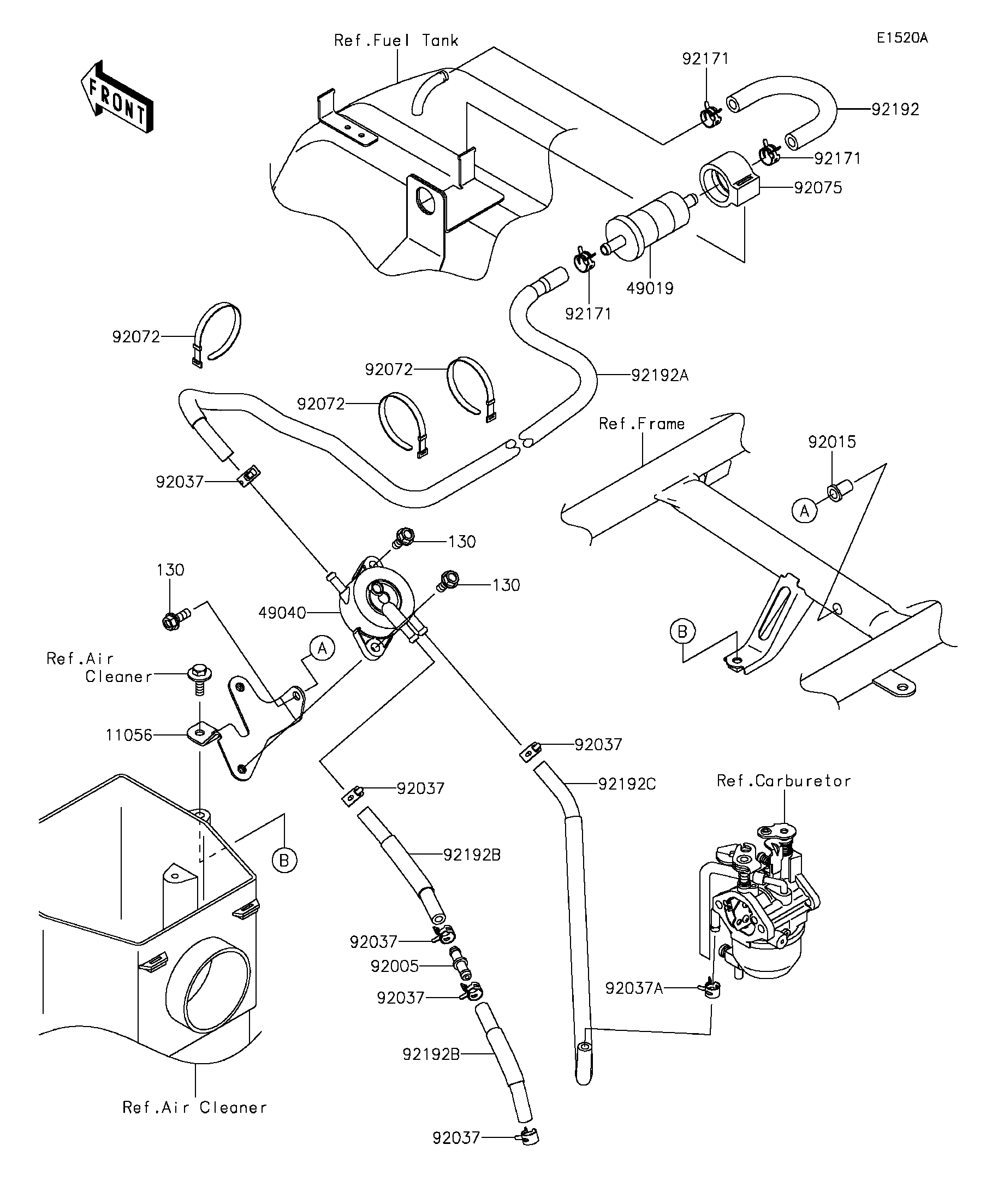

2016 MULE™ 610 4x4 XC SE - Fuel Pump(FGF)
11056
49019
49040
92005
92015
92037
92037
92037
92037
92037
92037
92037A
92072
92072
92072
92075
92171
92171
92171
92192
92192A
92192B
92192B
92192C
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,PUMP FUEL | 11056 | 11056-7402 | 1 | ||
| FILTER-FUEL | 49019 | 49019-1055 | 1 | ||
| PUMP-FUEL | 49040 | 49040-0005 | 1 | ||
| FITTING | 92005 | 92005-0789 | 1 | ||
| NUT,POP,6MM | 92015 | 92015-1759 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-1505 | 6 | ||
| CLAMP | 92037A | 92037-2113 | 1 | ||
| BAND,L=186 | 92072 | 92072-056 | 3 | ||
| DAMPER,FUEL FILTER | 92075 | 92075-1853 | 1 | ||
| CLAMP | 92171 | 92171-0515 | 3 | ||
| TUBE,7.5X12.5X200 | 92192 | 92192-0243 | 1 | ||
| TUBE,FILTER FUEL-PUMP FUEL | 92192A | 92192-1453 | 1 | ||
| TUBE,CRAB.INSULATOR-PUMP | 92192B | 92192-1613 | 2 | ||
| TUBE,PUMP FUEL-CARB. | 92192C | 92192-1614 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 3 |
| BRACKET,PUMP FUEL | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL | |
| REF # | 49019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PUMP-FUEL | |
| REF # | 49040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL FILTER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| TUBE,7.5X12.5X200 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FILTER FUEL-PUMP FUEL | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,CRAB.INSULATOR-PUMP | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,PUMP FUEL-CARB. | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
