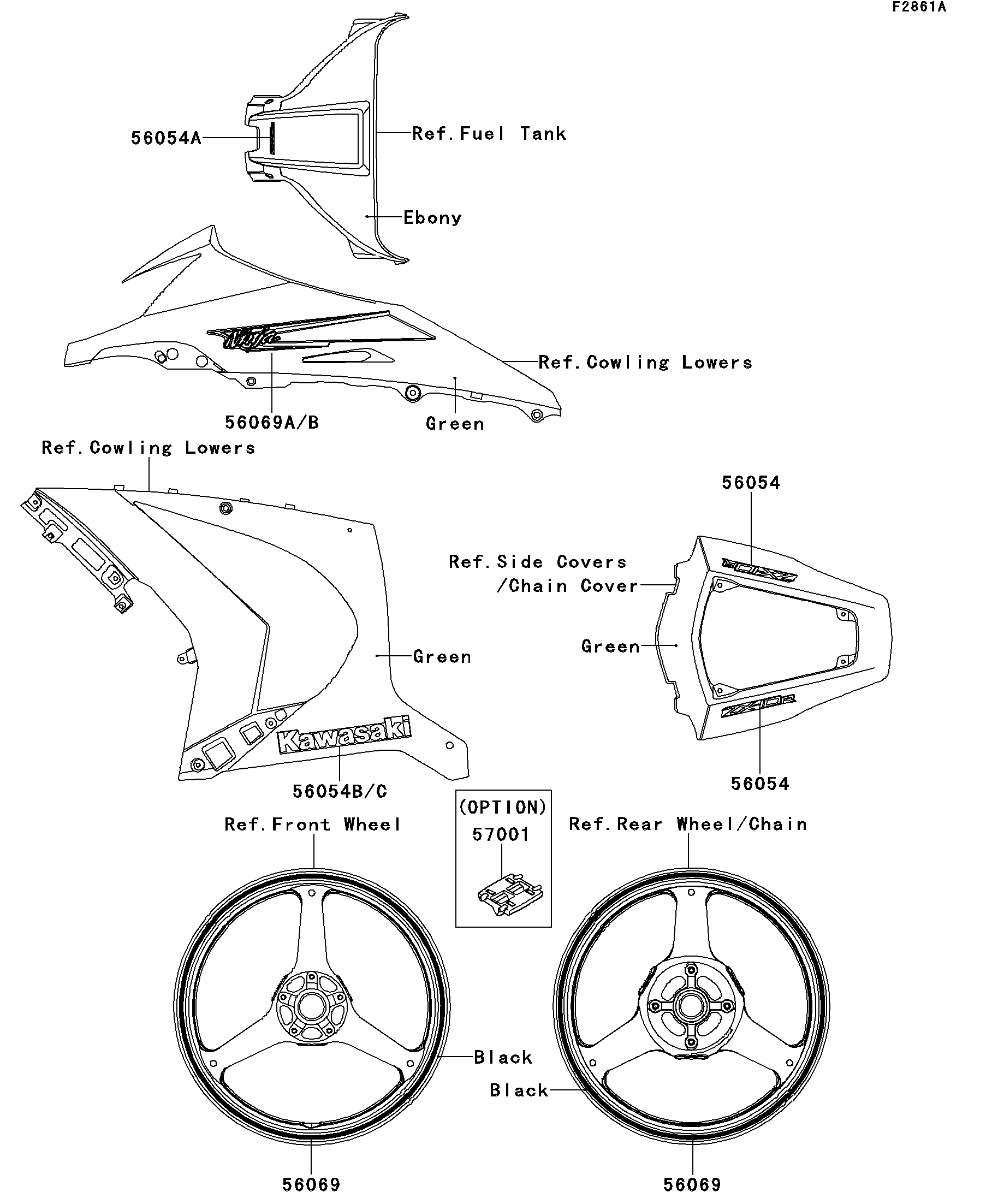

2011 NINJA® ZX™-10R - Decals(Green)(JBF)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,TAIL COVER,ZX-10R | 56054 | 56054-0712 | 2 | ||
| MARK,FUEL TANK COVER,ZX-10R | 56054A | 56054-0713 | 1 | ||
| MARK,SIDE COWL.,LH,KAWASAKI | 56054B | 56054-0714 | 1 | ||
| MARK,SIDE COWL.,RH,KAWASAKI | 56054C | 56054-0715 | 1 | ||
| PATTERN,WHEEL,GREEN,4X1353 | 56069 | 56069-0103 | 4 | ||
| PATTERN,UPP COWL.,LH | 56069A | 56069-1013 | 1 | ||
| PATTERN,UPP COWL.,RH | 56069B | 56069-1014 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
| MARK,TAIL COVER,ZX-10R | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK COVER,ZX-10R | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,LH,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COWL.,RH,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,GREEN,4X1353 | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
