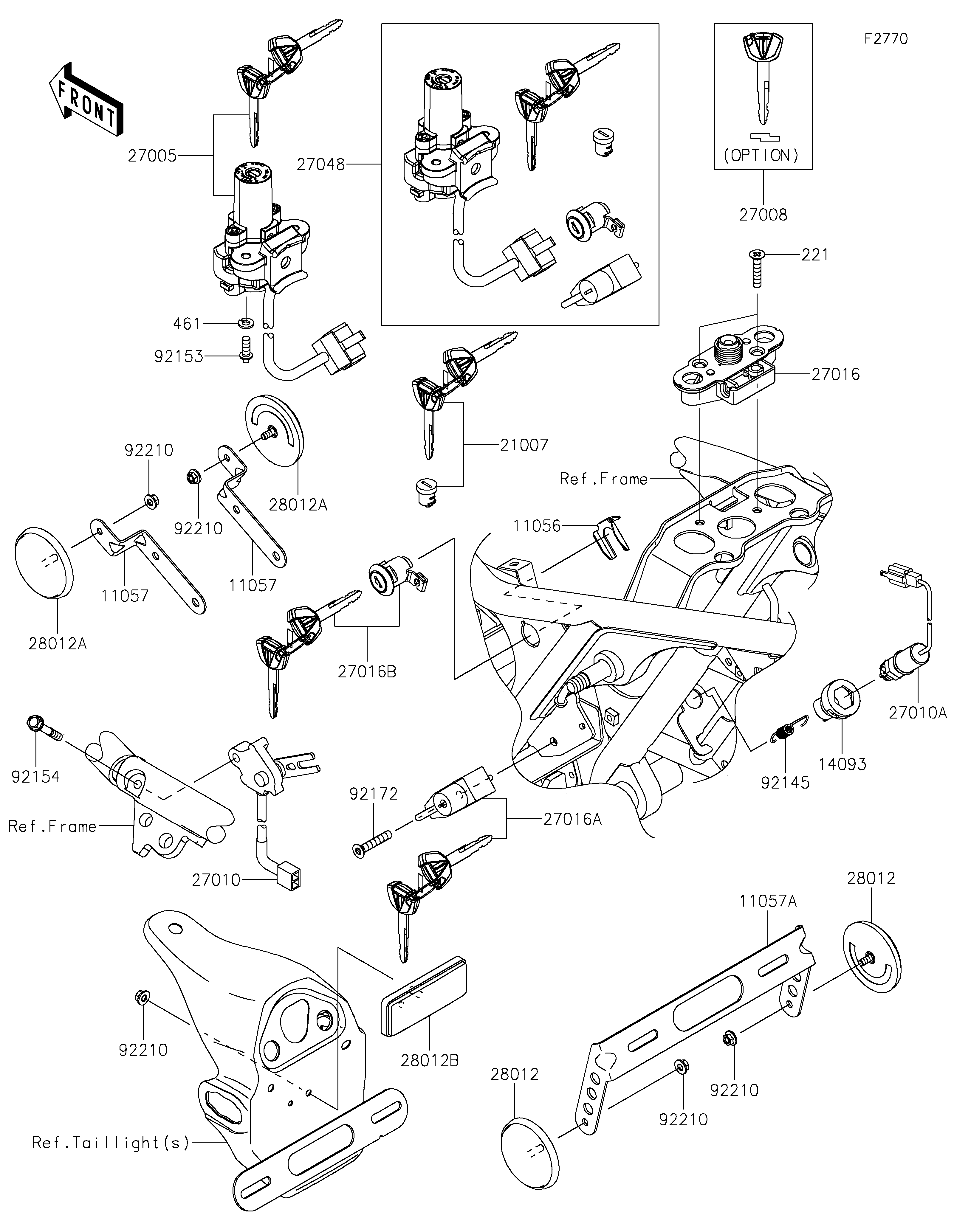

2019 W800 CAFE - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11057
11057
11057A
14093
21007
27005
27008
27010
27010A
27016
27016A
27016B
27048
28012
28012
28012A
28012A
28012B
92145
92153
92154
92172
92210
92210
92210
92210
92210
221
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-1084 1
BRACKET,FR REFLECTOR 11057 11057-1989 2
BRACKET,RR REFLECTOR 11057A 11057-2762 1
COVER,BRAKE SW. 14093 14093-0666 1
ROTOR,LOCK,TANK CAP 21007 21007-5086 1
SWITCH-ASSY-IGNITION 27005 27005-0678 1
KEY-LOCK,BLANK 27008 27008-0648 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0856 1
SWITCH,BRAKE 27010A 27010-0899 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1098 1
LOCK-ASSY,HELMET 27016A 27016-5411 1
LOCK-ASSY,SEAT 27016B 27016-5412 1
SWITCH-ASSY 27048 27048-5202 1
REFLECTOR-REFLEX 28012 28012-0002 2
REFLECTOR-REFLEX 28012A 28012-0008 2
REFLECTOR-REFLEX 28012B 28012-1077 1
SPRING,BRAKE LAMP SWITCH 92145 92145-0761 1
BOLT,TORX,6X16 92153 92153-0967 2
BOLT,FLANGED,6X40 92154 92154-0859 1
SCREW,HEXLOBE,6X35 92172 92172-0835 1
NUT,FLANGED,5MM 92210 92210-0007 5
SCREW-CSK-CROS,6X30 221 221AB0630 2
WASHER-SPRING,6MM 461 461DA0600 2
