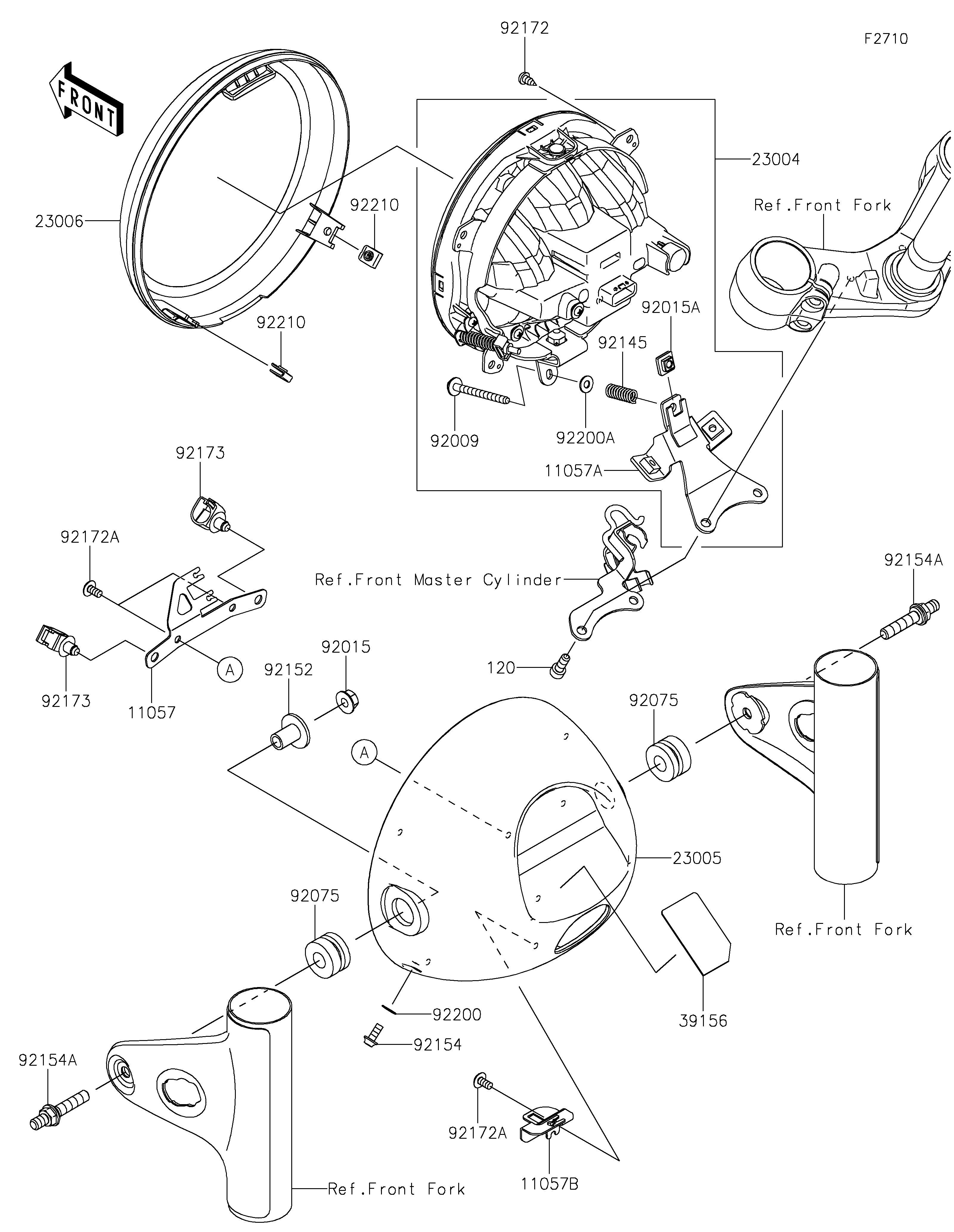

2019 W800 CAFE - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
23004
23005
23006
39156
92009
92015
92015A
92075
92075
92145
92152
92154
92154A
92154A
92172
92172A
92172A
92173
92173
92200
92200A
92210
92210
120
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2298 1
BRACKET,HEAD LAMP AIMING 11057A 11057-2698 1
BRACKET,ABS SENSOR 11057B 11057-2856 1
LAMP-HEAD,LED 23004 23004-0394 1
BODY-COMP-HEAD LAMP,M.F.S.BLK 23005 23005-0049-739 1
RIM-LAMP 23006 23006-0019 1
PAD 39156 39156-2565 1
SCREW,ADJUST,5X55 92009 92009-1683 1
NUT,FLANGED,8MM 92015 92015-1014 2
NUT,5MM 92015A 92015-1897 1
DAMPER 92075 92075-1736 2
SPRING 92145 92145-1887 1
COLLAR,8X12X20.3 92152 92152-2433 2
BOLT,SOCKET,5X12 92154 92154-0917 2
BOLT 92154A 92154-4017 2
SCREW,TAPPING,5X12 92172 92172-0239 4
SCREW,TAPPING,5X10 92172A 92172-0262 3
CLAMP,12MM DIA. 92173 92173-0736 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
WASHER 92200A 92200-2282 1
NUT 92210 92210-0571 2
BOLT-SOCKET,6X16 120 120CC0616 2
