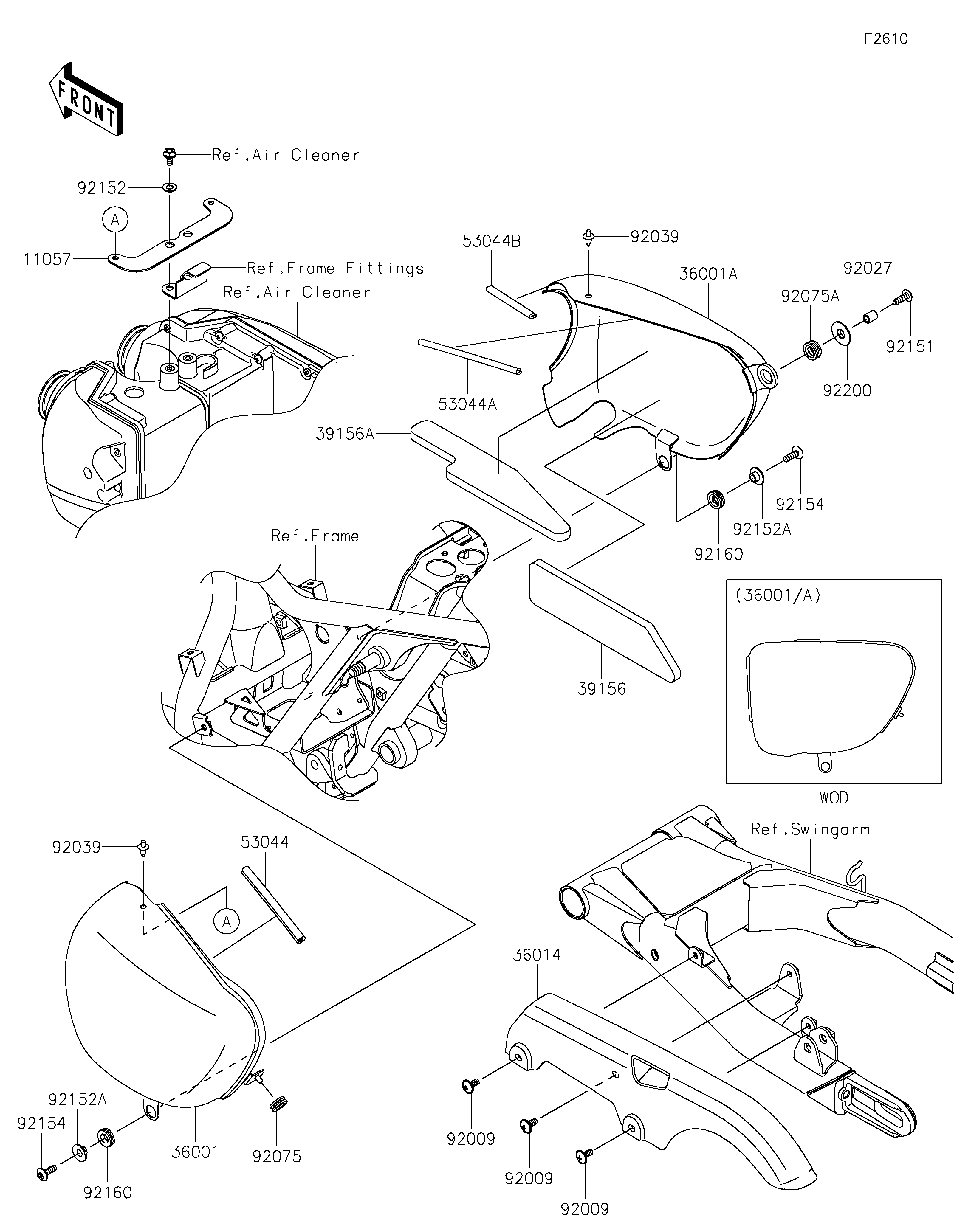

2020 W800 CAFE - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
11057
36001
36001A
36014
39156
39156A
53044
53044A
53044B
92009
92009
92009
92027
92039
92039
92075
92075A
92151
92152
92152A
92152A
92154
92154
92160
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2999 1
COVER-SIDE,LH,G.SILVER 36001 36001-0694-474 1
COVER-SIDE,RH,G.SILVER 36001A 36001-0696-474 1
CASE-CHAIN 36014 36014-1234 1
PAD,SIDE COVER,RH,LWR 39156 39156-0676 1
PAD,SIDE COVER,RH,UPP 39156A 39156-2533 1
TRIM 53044 53044-0667 1
TRIM,FUEL TANK 53044A 53044-1171 1
TRIM,L=80 53044B 53044-1218 1
SCREW,6X14 92009 92009-1662 3
COLLAR,6.8X10X12 92027 92027-162 1
RIVET 92039 92039-0023 2
DAMPER 92075 92075-1629 1
DAMPER 92075A 92075-1634 1
BOLT,SOCKET,6X20 92151 92151-1750 1
COLLAR 92152 92152-0275 2
COLLAR,L=7.4 92152A 92152-2538 2
BOLT,SOCKET,6X18 92154 92154-2438 2
DAMPER 92160 92160-1278 2
WASHER 92200 92200-1153 1
