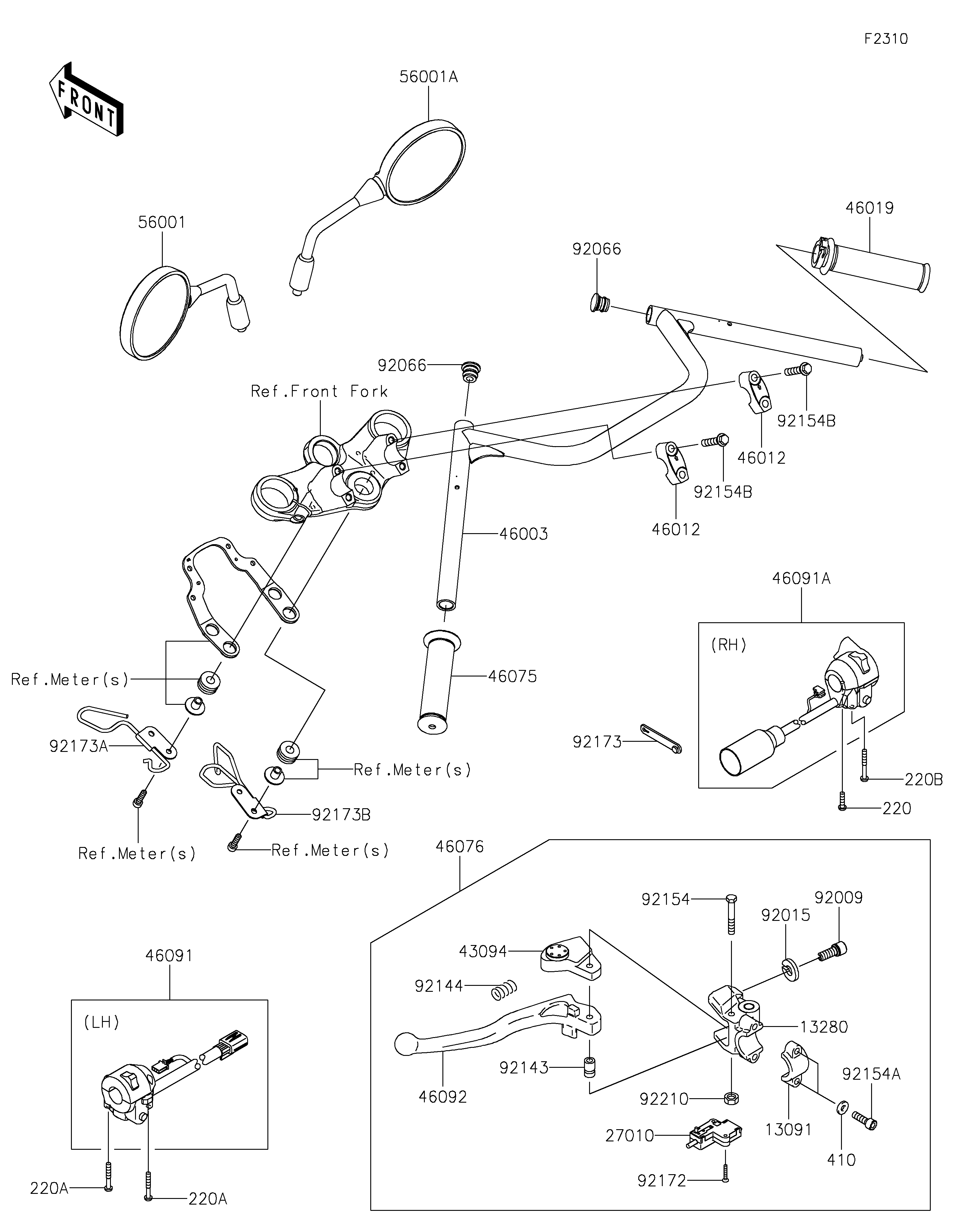

2019 W800 CAFE - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13091
13280
27010
43094
46003
46012
46012
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92066
92066
92143
92144
92154
92154A
92154B
92154B
92172
92173
92173A
92173B
92210
220
220A
220A
220B
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0248 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE 46003 46003-0777 1
HOLDER-HANDLE,UPP 46012 46012-1267 2
GRIP-ASSY,THROTTLE 46019 46019-1110 1
GRIP,LH 46075 46075-1175 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0159 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0458 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0498 1
LEVER-GRIP,CLUTCH 46092 46092-1162 1
MIRROR-ASSY,LH 56001 56001-0399 1
MIRROR-ASSY,RH 56001A 56001-0400 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
PLUG 92066 92066-1550 2
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT 92154 92154-2318 1
BOLT,SOCKET,6X20 92154A 92154-2644 2
BOLT,FLANGED,8X35 92154B 92154-3964 4
SCREW,3X16 92172 92172-0183 2
CLAMP 92173 92173-1526 1
CLAMP,HOUSING,LH 92173A 92173-2033 1
CLAMP,HOUSING,RH 92173B 92173-2132 1
NUT,LOCK,6MM 92210 92210-0006 1
SCREW-PAN-CROS,5X20 220 220AB0520 1
SCREW-PAN-CROS,5X35 220A 220AB0535 2
SCREW-PAN-CROS,5X40 220B 220AB0540 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
