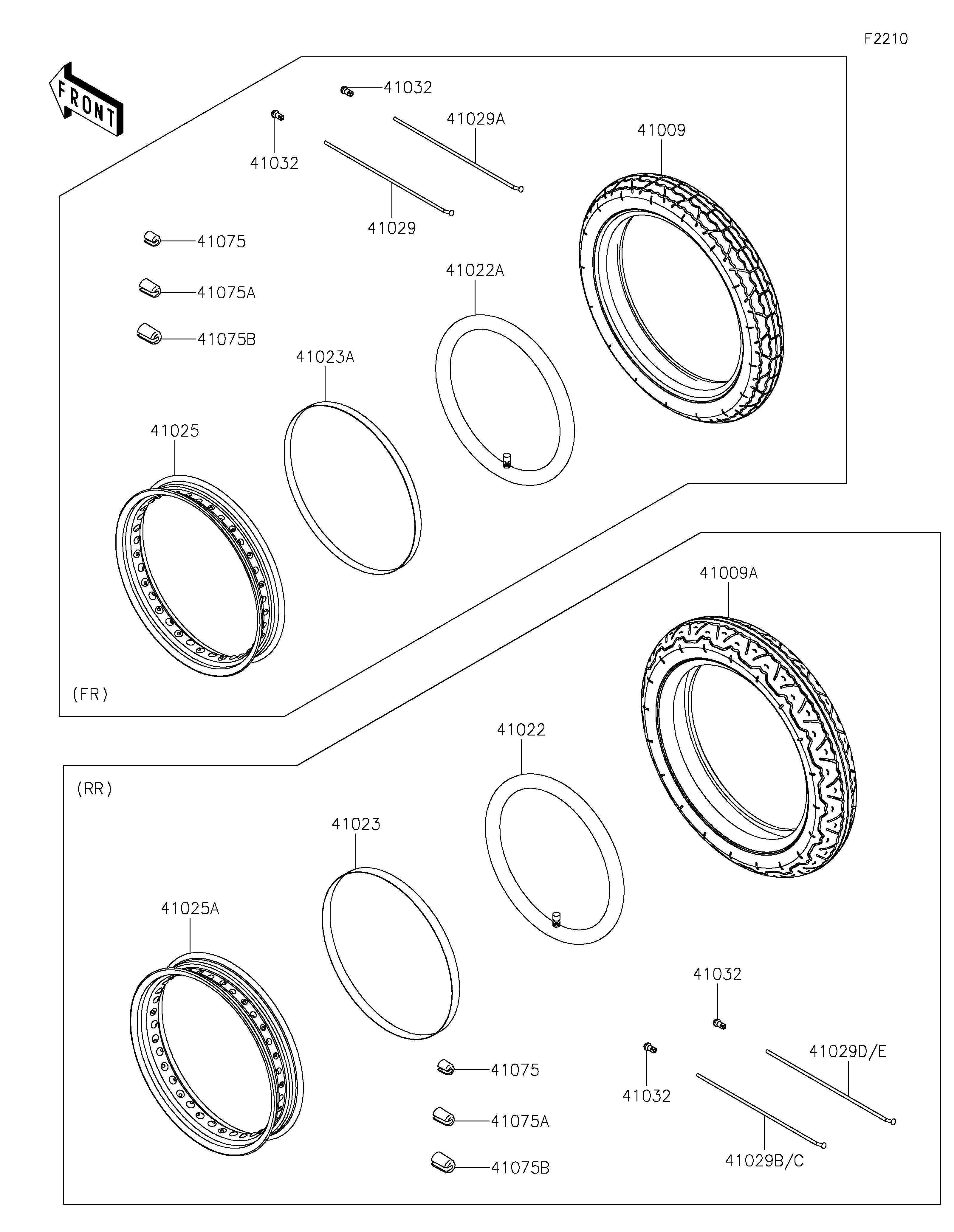

2019 W800 CAFE - Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41025
41025A
41029
41029A
41029B
41029C
41029D
41029E
41032
41032
41032
41032
41075
41075
41075A
41075A
41075B
41075B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,100/90-18 56H,K300F GP 41009 41009-0808 1
TIRE,RR,130/80-18 66H,K300 GP 41009A 41009-0809 1
TUBE-TIRE,RR,130/80-18(D) 41022 41022-0016 1
TUBE-TIRE,FR,3.25/4.10-18(DUNLOP) 41022A 41022-1004 1
BAND-RIM,RR,100/100-18(D) 41023 41023-1070 1
BAND-RIM,FR,100/90-18(D) 41023A 41023-1076 1
RIM,FR,18M/CXMT2.50 41025 41025-0407 1
RIM,RR,18M/CXMT3.00 41025A 41025-0408 1
SPOKE-INNER,FR,LH,186MMX172D 41029 41029-0099 18
SPOKE-INNER,FR,RH,169MMX171D 41029A 41029-0100 18
SPOKE-INNER,RR,LH,167.5MMX168D 41029B 41029-0101 9
SPOKE-INNER,RR,RH,192X174.5D 41029C 41029-0102 9
SPOKE-OUTER,RR,LH,167X169.5D 41029D 41029-0103 9
SPOKE-OUTER,RR,RH,189X176D 41029E 41029-0104 9
NIPPLE-SPOKE 41032 41032-0005 72
BALANCER-WHEEL,10G 41075 41075-0011 AR
BALANCER-WHEEL,20G 41075A 41075-0012 AR
BALANCER-WHEEL,30G 41075B 41075-0013 AR
