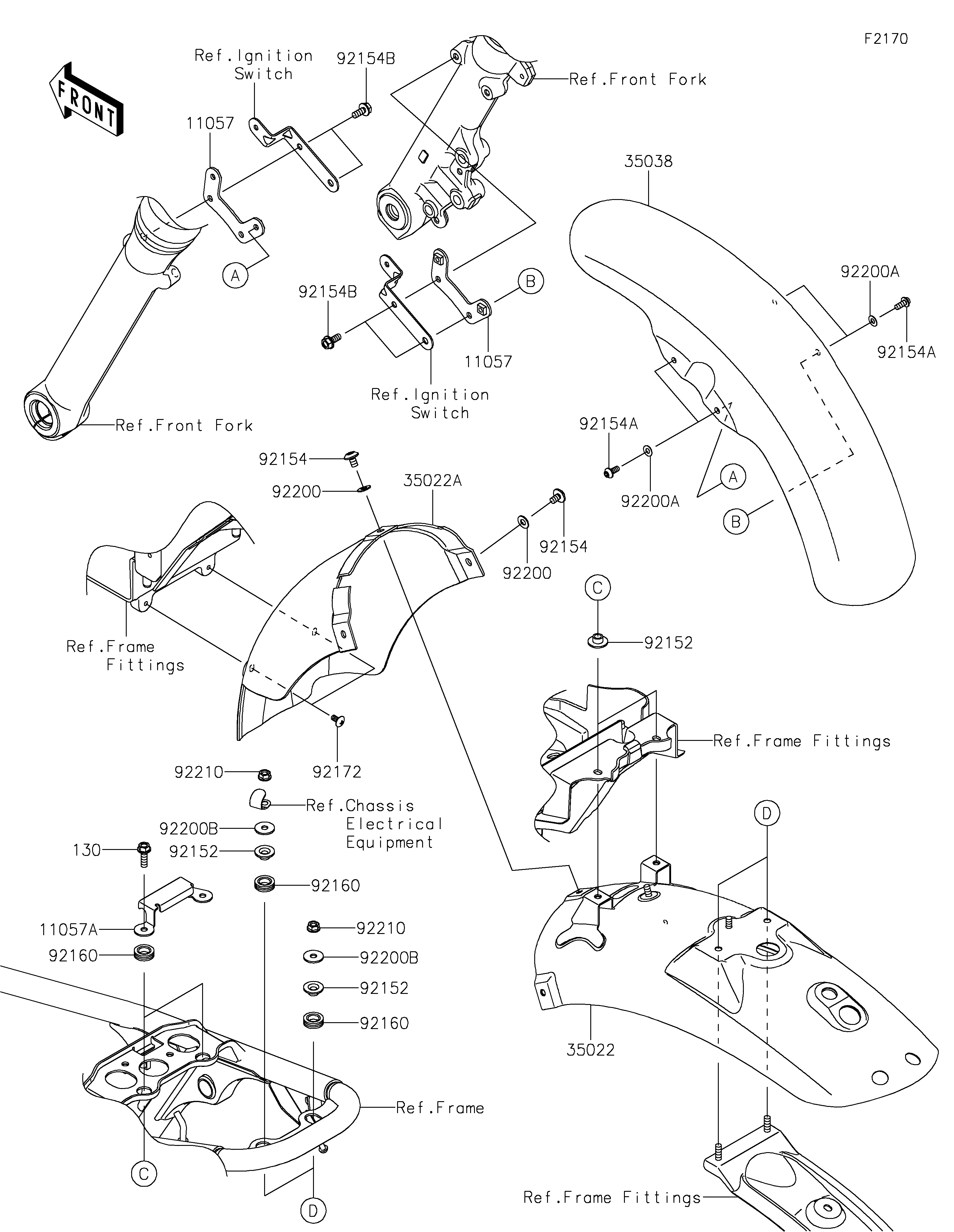

2019 W800 CAFE - Fenders

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
11057A
35022
35022A
35038
92152
92152
92152
92154
92154
92154A
92154A
92154B
92154B
92160
92160
92160
92172
92200
92200
92200A
92200A
92200B
92200B
92210
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1876 2
BRACKET 11057A 11057-2333 1
FENDER-COMP-REAR,M.F.S.BLACK 35022 35022-0110-739 1
FENDER-COMP-REAR,F.BLACK 35022A 35022-0112-6Z 1
FENDER-FRONT,M.F.S.BLACK 35038 35038-0020-739 1
COLLAR,L=7.4 92152 92152-2539 4
BOLT,SOCKET,6X10 92154 92154-0774 3
BOLT,SOCKET,5X12 92154A 92154-0917 4
BOLT,FLANGED,6X14 92154B 92154-3968 4
DAMPER 92160 92160-1278 4
SCREW,TAPPING,5X10 92172 92172-0335 2
WASHER,6.5X14X1 92200 92200-1388 3
WASHER,NYLON,5.3X11.5X0.5 92200A 92200-1480 4
WASHER,6.5X20X1.6 92200B 92200-2231 2
NUT,FLANGED,6MM 92210 92210-1671 2
BOLT-FLANGED,6X20 130 130BC0620 2
