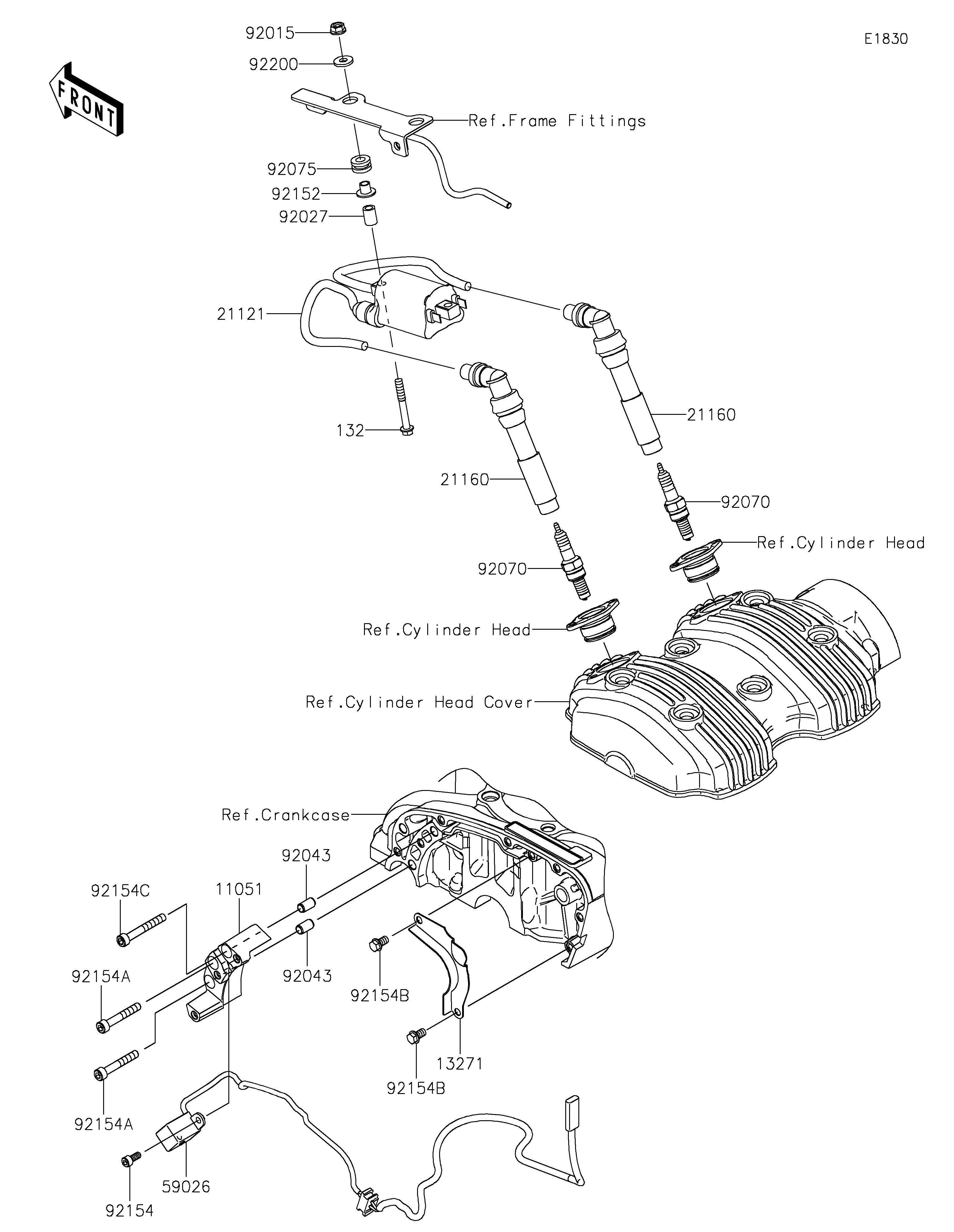

2019 W800 CAFE - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
11051
13271
21121
21160
21160
59026
92015
92027
92043
92043
92070
92070
92075
92152
92154
92154A
92154A
92154B
92154B
92154C
92200
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PULSING COIL 11051 11051-1213 1
PLATE 13271 13271-1189 1
COIL-IGNITION 21121 21121-1283 1
CAP-ASSY-PLUG 21160 21160-0016 2
COIL-PULSING 59026 59026-0556 1
NUT,FLANGED,6MM 92015 92015-1367 2
COLLAR,6.3X10X14 92027 92027-1453 2
PIN,6.2X8X14 92043 92043-1263 2
PLUG-SPARK,CR8E(NGK) 92070 92070-0019 2
DAMPER 92075 92075-1912 2
COLLAR,6.3X8.3X9.2 92152 92152-0237 2
BOLT,SOCKET,5X12 92154 92154-0503 2
BOLT,SOCKET,6X40 92154A 92154-0505 2
BOLT,FLANGED,6X10 92154B 92154-0507 2
BOLT,SOCKET,6X45 92154C 92154-0508 1
WASHER,6.5X16X2 92200 92200-0312 2
BOLT-FLANGED-SMALL,6X45 132 132BB0645 2
