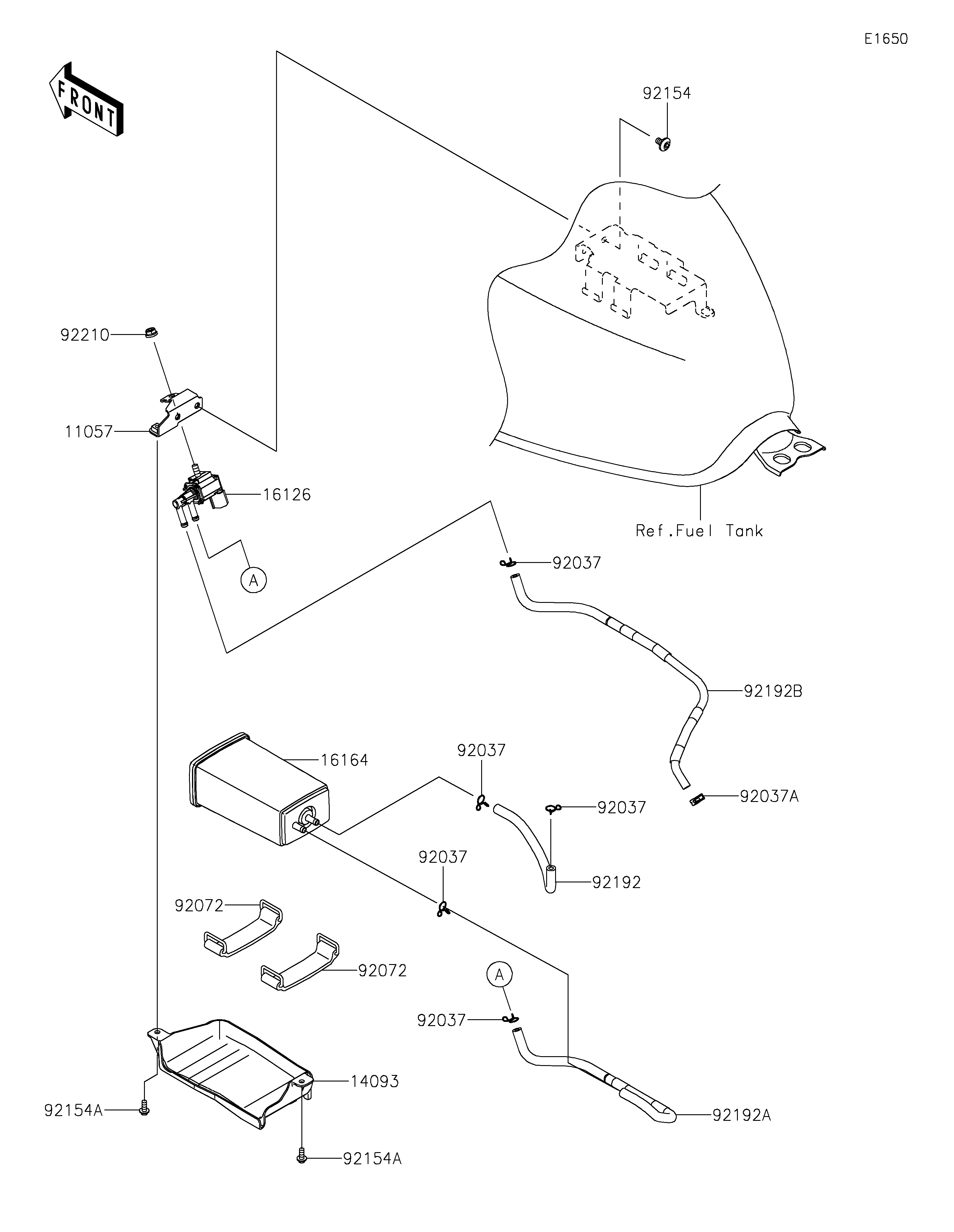

2019 W800 CAFE - Fuel Evaporative System(CA)
11057
14093
16126
16164
92037
92037
92037
92037
92037
92037A
92072
92072
92154
92154A
92154A
92192
92192A
92192B
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CANISTER | 11057 | 11057-2071 | 1 | CA | |
| COVER,CANISTER | 14093 | 14093-0791 | 1 | CA | |
| VALVE,SOLENOID | 16126 | 16126-0705 | 1 | CA | |
| CANISTER | 16164 | 16164-0012 | 1 | CA | |
| CLAMP | 92037 | 92037-1712 | 5 | CA | |
| CLAMP,7.8MM | 92037A | 92037-2116 | 1 | CA | |
| BAND,L=90 | 92072 | 92072-045 | 2 | CA | |
| BOLT,SOCKET,6X10 | 92154 | 92154-1834 | 2 | CA | |
| BOLT,SOCKET,5X12,MEC | 92154A | 92154-2678 | 2 | CA | |
| TUBE,TANK-CANISTER | 92192 | 92192-1932 | 1 | CA | |
| TUBE,CANISTER-VALVE | 92192A | 92192-1933 | 1 | CA | |
| TUBE,VALVE-THROTTLE | 92192B | 92192-1934 | 1 | CA | |
| NUT,LOCK,FLANGED,6MM | 92210 | 92210-0303 | 1 | CA |
| BRACKET,CANISTER | |
| REF # | 11057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| COVER,CANISTER | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| VALVE,SOLENOID | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,7.8MM | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND,L=90 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| BOLT,SOCKET,5X12,MEC | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-CANISTER | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-VALVE | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,VALVE-THROTTLE | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
