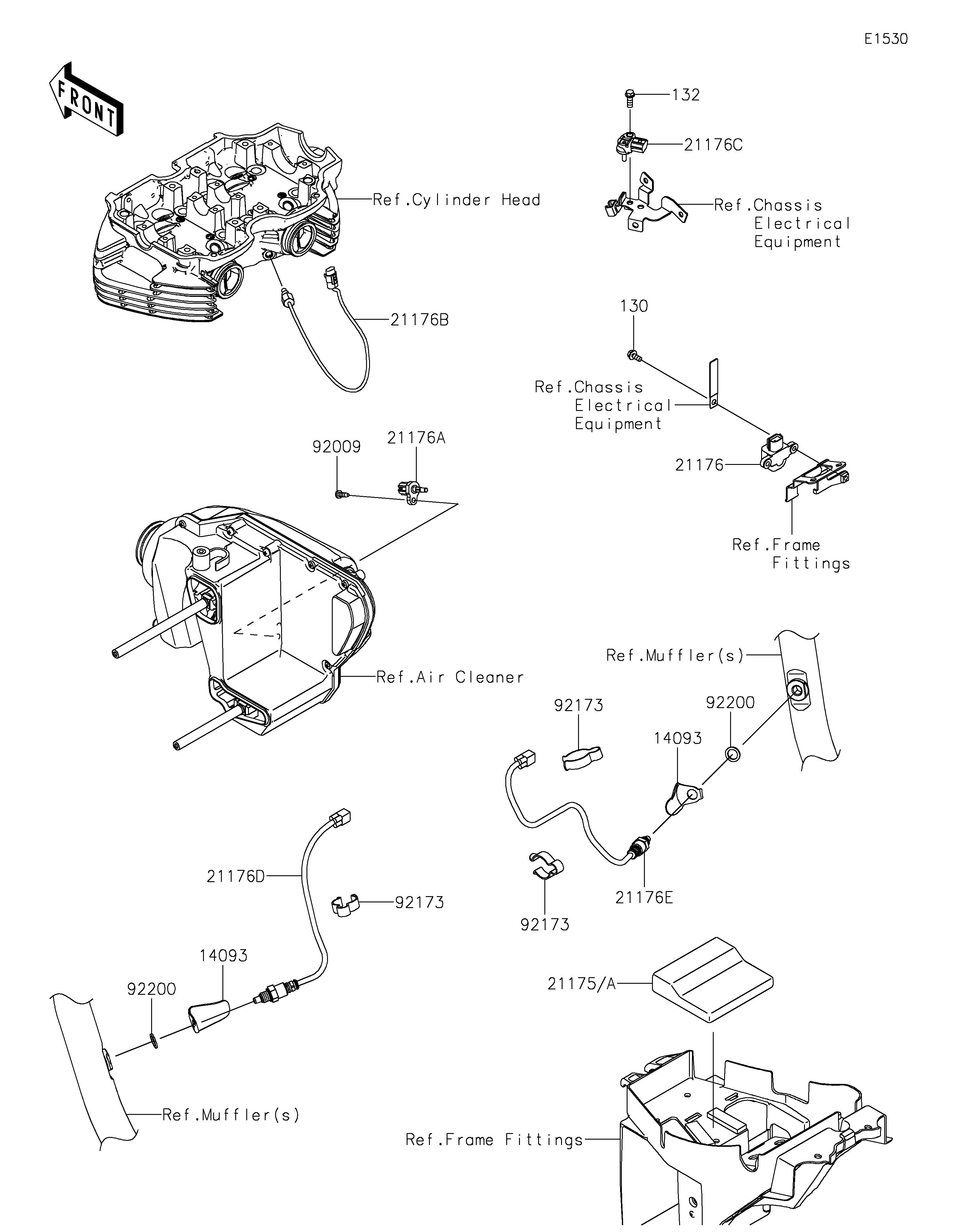

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
14093
14093
21175
21175A
21176
21176A
21176B
21176C
21176D
21176E
92009
92173
92173
92173
92200
92200
130
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,OXYGEN SENSOR | 14093 | 14093-0790 | 2 | ||
| CONTROL UNIT-ELECTRONIC | 21175 | 21175-1489 | 1 | CN,US | |
| CONTROL UNIT-ELECTRONIC | 21175A | 21175-1490 | 1 | CA | |
| SENSOR,VEHICLE-DOWN | 21176 | 21176-0026 | 1 | ||
| SENSOR,AIR TEMPERATURE | 21176A | 21176-0048 | 1 | ||
| SENSOR,TEMP | 21176B | 21176-0072 | 1 | ||
| SENSOR,PRESSURE | 21176C | 21176-0111 | 1 | ||
| SENSOR,OXYGEN,LH | 21176D | 21176-0895 | 1 | ||
| SENSOR,OXYGEN,RH | 21176E | 21176-0897 | 1 | ||
| SCREW,TAPPING,5X16 | 92009 | 92009-1984 | 1 | ||
| CLAMP | 92173 | 92173-0018 | 3 | ||
| WASHER,12.5X18X1.6 | 92200 | 92200-0087 | 2 | ||
| BOLT-FLANGED,5X12 | 130 | 130BA0512 | 1 | ||
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 1 |
