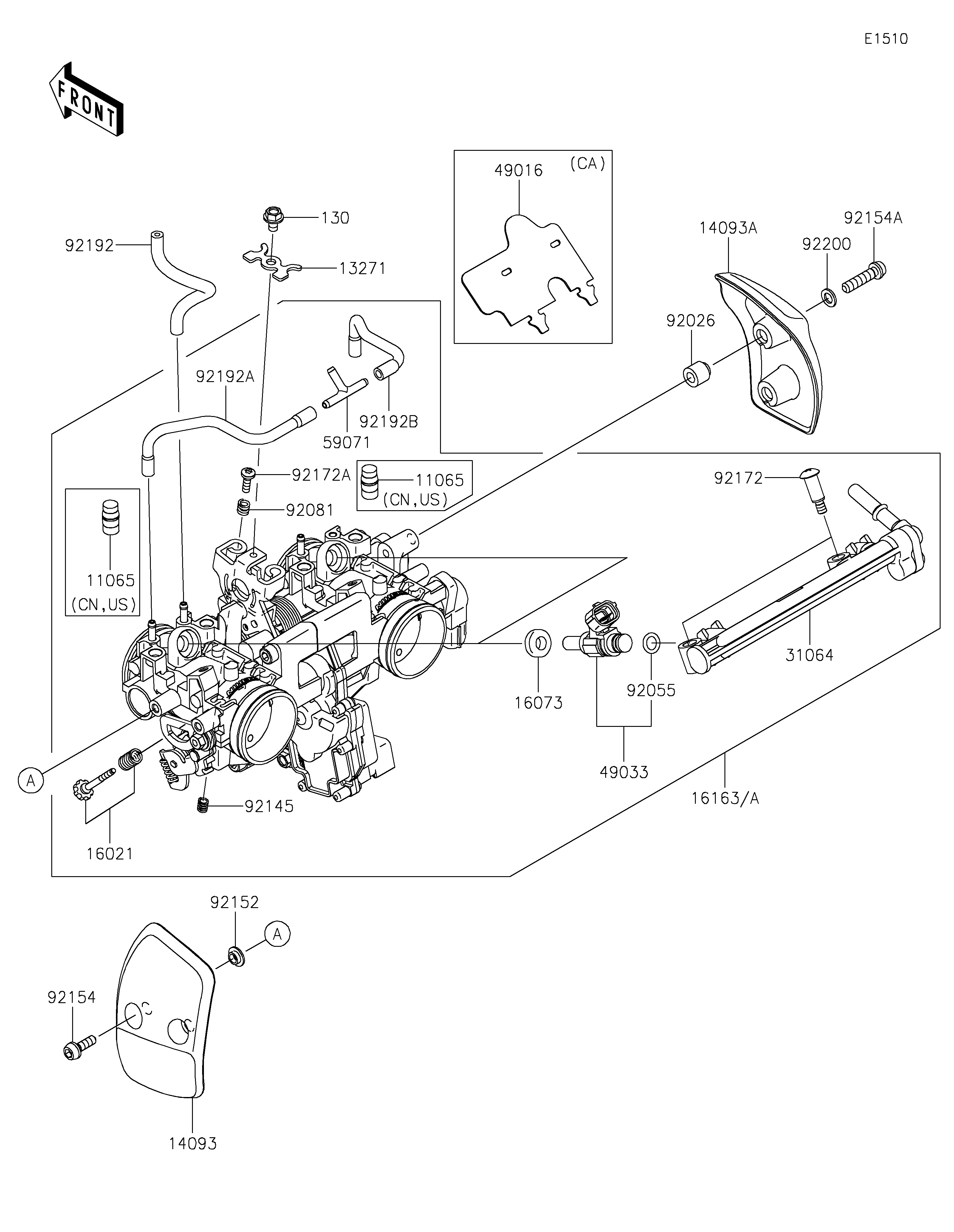

2019 W800 CAFE - Throttle

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13271
14093
14093A
16021
16073
16163
16163A
31064
49016
49033
59071
92026
92055
92081
92145
92152
92154
92154A
92172
92172A
92192
92192A
92192B
92200
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0018 2 CN,US
PLATE 13271 13271-0056 1
COVER,LH 14093 14093-0788 1
COVER,RH 14093A 14093-0789 1
SCREW-THROTTLE STOP 16021 16021-0054 1
INSULATOR 16073 16073-0129 2
THROTTLE-ASSY,TTK34 16163 16163-0950 1 CA
THROTTLE-ASSY,TTK34 16163A 16163-0997 1 CN,US
PIPE-COMP,FUEL 31064 31064-0591 1
COVER-SEAL 49016 49016-0674 1 CA
NOZZLE-INJECTION 49033 49033-0571 2
JOINT 59071 59071-0749 1 CA
SPACER 92026 92026-0869 2
RING-O,INJECTION NOZZLE 92055 92055-0124 2
SPRING 92081 92081-1620 1
SPRING 92145 92145-0816 1
COLLAR 92152 92152-2599 2
BOLT,SOCKET,5X16 92154 92154-1449 2
BOLT,SOCKET,6X25 92154A 92154-1457 2
SCREW,PIPE INJECTION 92172 92172-0064 2
SCREW 92172A 92172-0505 1
TUBE,3X7X110 92192 92192-0931 1
TUBE,3X6X138 92192A 92192-1783 1 CA
TUBE,3X6X101 92192B 92192-1784 1 CA
WASHER,6.5X11X1.2 92200 92200-1964 2
BOLT-FLANGED,5X8 130 130BA0508 1
