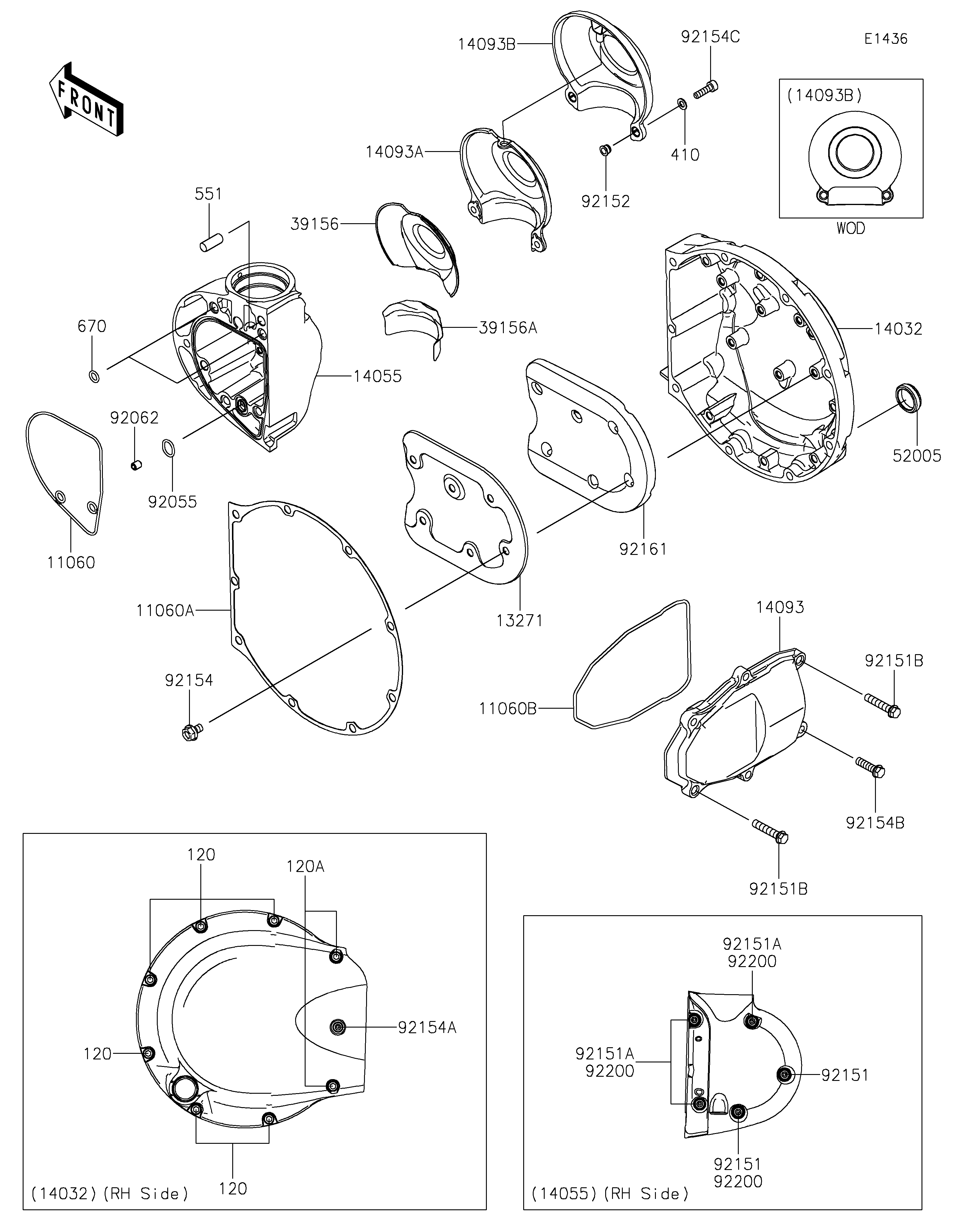

2019 W800 CAFE - Right Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060A
11060B
13271
14032
14055
14093
14093A
14093B
39156
39156A
52005
92055
92062
92151
92151
92151A
92151A
92151B
92151B
92152
92154
92154A
92154B
92154C
92161
92200
92200
92200
120
120
120
120A
410
551
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GEAR CASE 11060 11060-1890 1
GASKET,CLUTCH COVER 11060A 11060-1891 1
GASKET,KICK COVER 11060B 11060-1896 1
PLATE,SOUND ARRESTER 13271 13271-1215 1
COVER-CLUTCH 14032 14032-0647 1
CASE-GEAR 14055 14055-0646 1
COVER,KICK 14093 14093-0700 1
COVER,BEVEL GEAR,INNER 14093A 14093-0787 1
COVER,BEVEL GEAR,OUTER 14093B 14093-0792 1
PAD,BEVEL COVER,UPP 39156 39156-2455 1
PAD,BEVEL COVER,LWR 39156A 39156-2456 1
GAUGE,OIL LEVEL 52005 52005-1009 1
RING-O,12.3X1.9 92055 92055-1594 1
NOZZLE,6X8,BLACK 92062 92062-1079 1
BOLT,SOCKET,6X55 92151 92151-1496 2
BOLT,SOCKET,6X60 92151A 92151-1497 3
BOLT,6X30 92151B 92151-1873 2
COLLAR 92152 92152-2604 2
BOLT,FLANGED,6X10 92154 92154-0492 6
BOLT,SOCKET,6X70 92154A 92154-0493 1
BOLT,FLANGED,6X22 92154B 92154-0794 4
BOLT,SOCKET,5X18 92154C 92154-3981 2
DAMPER 92161 92161-0953 1
WASHER,6.8X11.5X1.0 92200 92200-1461 4
BOLT-SOCKET,6X25 120 120CC0625 6
BOLT-SOCKET,6X50 120A 120CC0650 2
WASHER-PLAIN-SMALL 410 410AA0500 2
PIN-DOWEL,8X20 551 551A0820 1
O RING,7MM 670 670D1507 2
