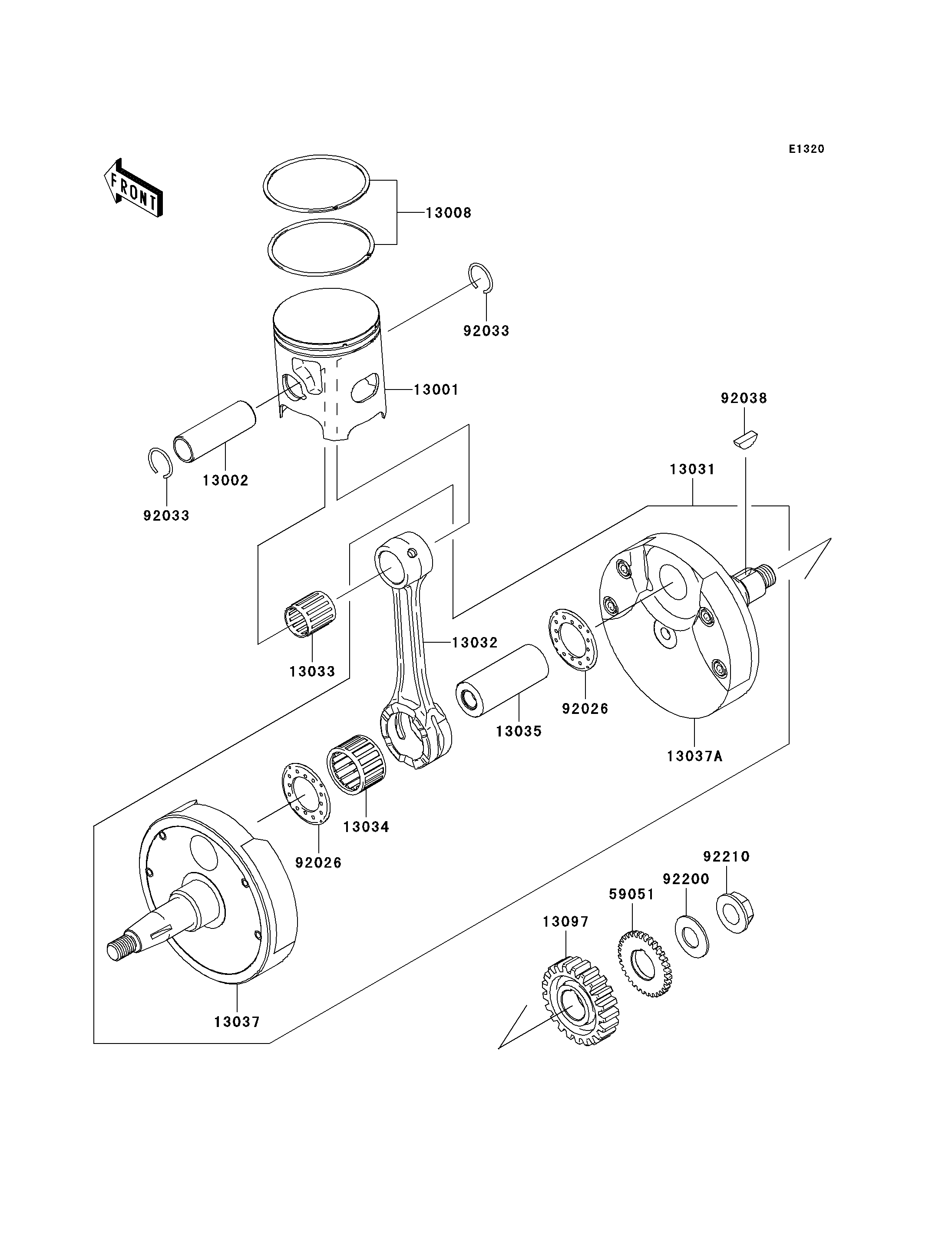

2007 KX250 - Crankshaft/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
13001
13002
13008
13031
13032
13033
13034
13035
13037
13037A
13097
59051
92026
92026
92033
92033
92038
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON-ENGINE,SIZE B 13001 13001-0058 1
PIN-PISTON 13002 13002-1098 1
RING-SET-PISTON 13008 13008-0013 1
CRANKSHAFT-COMP 13031 13031-0050 1
ROD-CONNECTING,WHITE 13032 13032-1279 1
BEARING-NEEDLE,KBK18X22X23.8X 13033 13033-1010 1
BEARING-BIG END,B4 13034 13034-0005 1
PIN-CRANK 13035 13035-1089 1
CRANKSHAFT,LH 13037 13037-0032 1
CRANKSHAFT,RH 13037A 13037-0062 1
GEAR-PRIMARY SPUR,21T 13097 13097-0039 1
GEAR-SPUR,32T 59051 59051-0050 1
SPACER,24X42X1.6 92026 92026-1607 2
RING-SNAP,PISTON PIN 92033 92033-1336 2
KEY,WOODRUFF 92038 92038-0001 1
WASHER,14.2X28X1.5 92200 92200-0217 1
NUT,14MM,LEFT HANDED 92210 92210-0216 1
