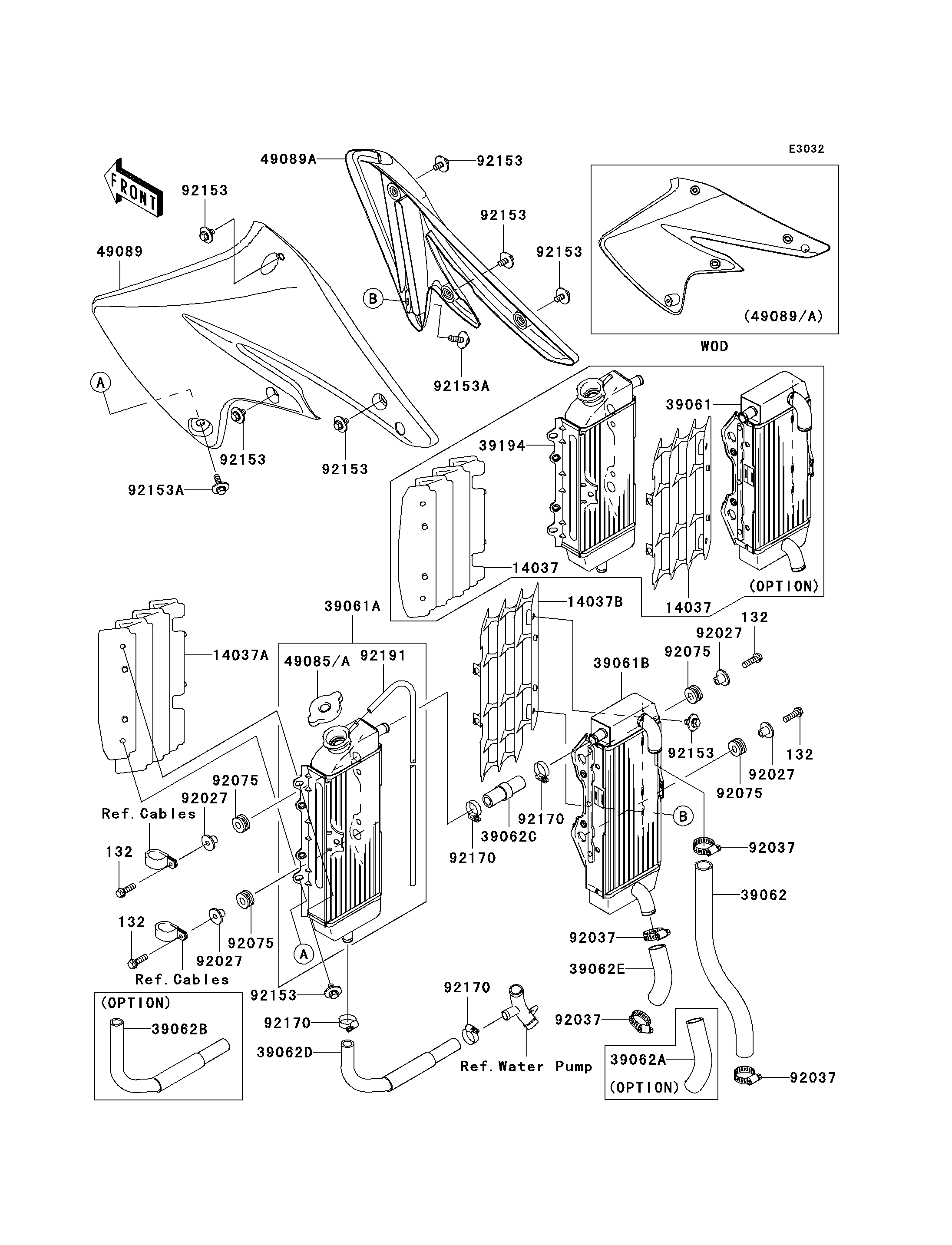

2005 KX250F - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132
14037
14037
14037A
14037B
39061
39061A
39061B
39062
39062A
39062B
39062C
39062D
39062E
39194
49085
49085A
49089
49089A
92027
92027
92027
92027
92037
92037
92037
92037
92075
92075
92075
92075
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92170
92170
92170
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132L0620 4
SCREEN,WHITE 14037 14037-0012-RZ 2 (OPTION)
SCREEN,LH,WHITE 14037A 14037-0029-RZ 1
SCREEN,RH,WHITE 14037B 14037-0030-RZ 1
RADIATOR-ASSY,RH,CORE:220MM 39061 39061-0004 1 (OPTION)
RADIATOR-ASSY,LH,CORE:260MM 39061A 39061-0044 1
RADIATOR-ASSY,RH,CORE:260MM 39061B 39061-0045 1
HOSE-COOLING,HEAD-RADIATOR RH 39062 39062-0012 1
HOSE-COOLING,RADIATOR RH-P/W 39062A 39062-0040 1 (OPTION)
HOSE-COOLING,RADIATOR LH-P/W 39062B 39062-0041 1 (OPTION)
HOSE-COOLING,RADIATOR L-R HIGH 39062C 39062-0044 1
HOSE-COOLING,CORE:260MM 39062D 39062-0076 1
HOSE-COOLING,CORE:260MM 39062E 39062-0082 1
RADIATOR-ASSY,LH,CORE:220MM 39194 39194-0006 1 (OPTION)
CAP-ASSY-PRESSURE,P1.1 49085 49085-1070 1
CAP-ASSY-PRESSURE,P1.6 49085A 49085-1073 1 (OPTION)
SHROUD-ENGINE,LH,L.GREEN 49089 49089-0020-290 1
SHROUD-ENGINE,RH,L.GREEN 49089A 49089-0021-290 1
COLLAR,L=11.1 92027 92027-194 4
CLAMP,COOLING HOSE 92037 92037-1589 4
DAMPER 92075 92075-209 4
BOLT,6X12 92153 92153-0503 8
BOLT,6X20 92153A 92153-0864 2
CLAMP 92170 92170-1283 4
TUBE,6X9X700 92191 92191-1211 1
