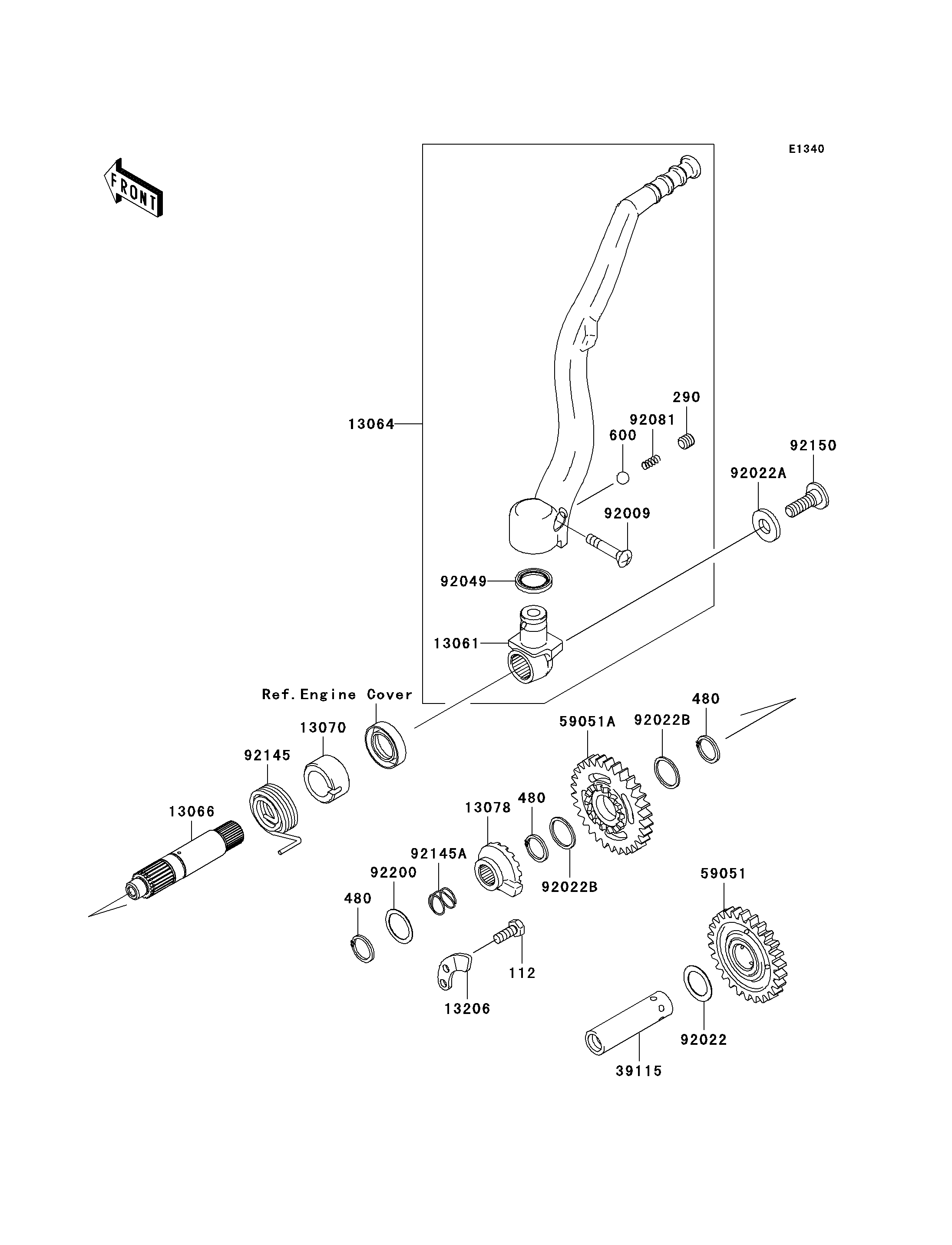

2004 KX250F - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
112
290
480
480
480
600
13061
13064
13066
13070
13078
13206
39115
59051
59051A
92009
92022
92022A
92022B
92022B
92049
92081
92145
92145A
92150
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET 112 112G0616 1
SCREW-SET-SOCKET 290 290P0808 1
CIRCLIP-TYPE-C,18MM 480 480J1800 3
BALL-STEEL,1/4" 600 600A0800 1
BOSS 13061 13061-0052 1
LEVER-ASSY-KICK 13064 13064-0015 1
SHAFT-KICK 13066 13066-0004 1
GUIDE 13070 13070-0011 1
RATCHET 13078 13078-0005 1
GUIDE-KICK 13206 13206-0003 1
SHAFT-IDLER,KICK 39115 39115-0005 1
GEAR-SPUR,KICK STARTER,26T 59051 59051-0006 1
GEAR-SPUR,KICK STARTER,28T 59051A 59051-0033 1
SCREW,6X27 92009 92009-1607 1
WASHER,17.3X25X0.5 92022 92022-1614 1
WASHER 92022A 92022-1944 1
WASHER,18.3X22X0.5 92022B 92022-271 2
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,KICK STARTER 92145 92145-0051 1
SPRING 92145A 92145-0162 1
BOLT,8X25 92150 92150-1858 1
WASHER,18.3X24X0.5 92200 92200-0075 1
