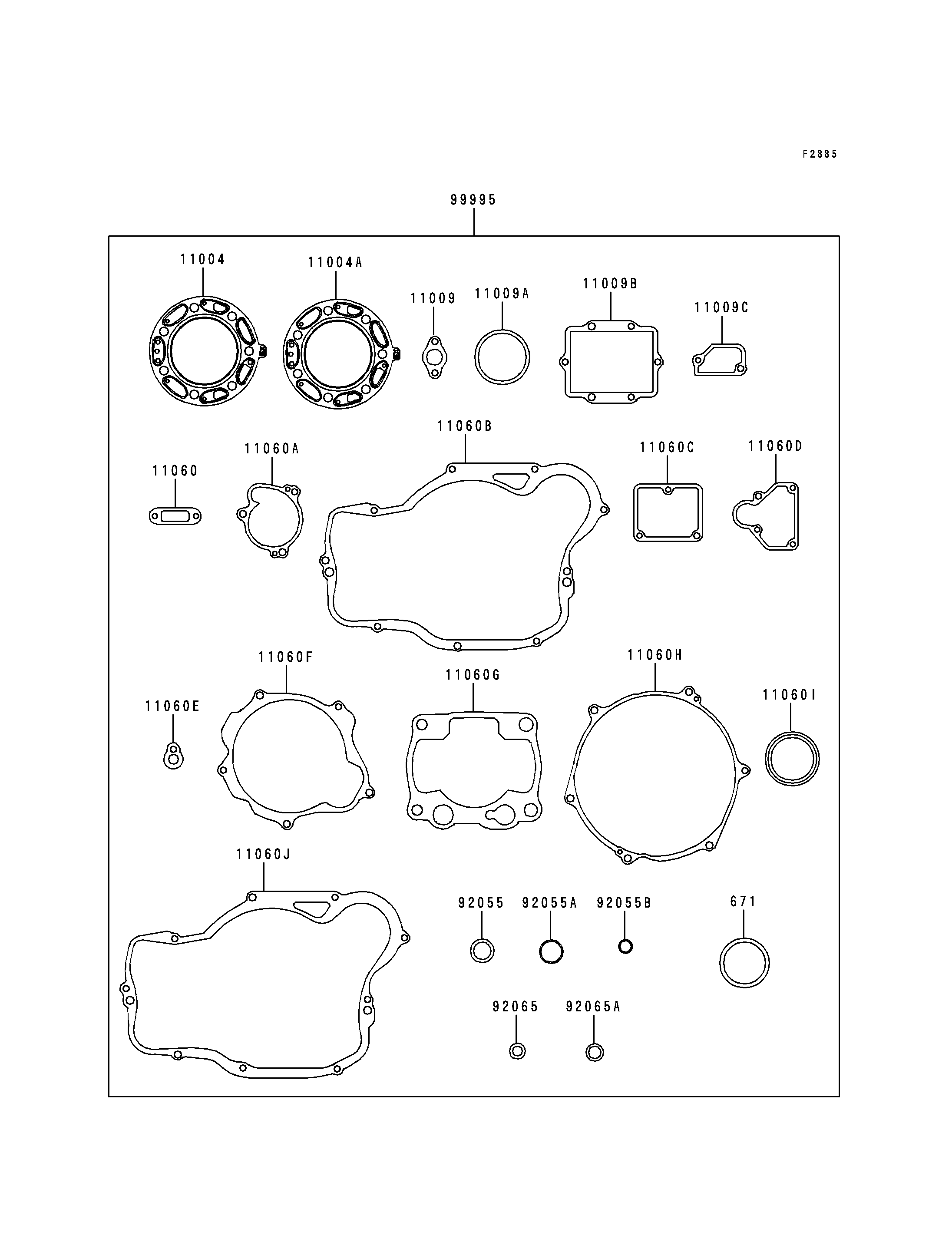

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING,50MM | 671 | 671E2550 | 2 | ||
| GASKET-HEAD,T=0.26 | 11004 | 11004-1240 | 1 | ||
| GASKET-HEAD,T=0.46 | 11004A | 11004-1241 | 1 | ||
| GASKET,ELBOW | 11009 | 11009-1935 | 1 | ||
| GASKET,EXHAUST PIPE | 11009A | 11009-1949 | 1 | ||
| GASKET,REED VALVE | 11009B | 11009-1950 | 1 | ||
| GASKET,GOVERNOR COVER | 11009C | 11009-1960 | 1 | ||
| GASKET | 11060 | 11060-1183 | 1 | ||
| GASKET,PUMP COVER | 11060A | 11060-1184 | 1 | ||
| GASKET,CLUTCH COVER,IN | 11060B | 11060-1185 | 1 | ||
| GASKET,VALVE COVER | 11060C | 11060-1289 | 1 | ||
| GASKET,RESONATOR | 11060D | 11060-1290 | 1 | ||
| GASKET,GOVERNOR ROD | 11060E | 11060-1346 | 1 | ||
| GASKET,GENERATOR COVER | 11060F | 11060-1352 | 1 | ||
| GASKET,CYLINDER BASE | 11060G | 11060-1493 | 1 | ||
| GASKET,CLUTCH COVER,OUT | 11060H | 11060-1494 | 1 | ||
| GASKET,EXHAUST PIPE | 11060I | 11060-1689 | 1 | ||
| GASKET,CLUTCH COVER,IN | 11060J | 11060-1749 | 1 | ||
| RING-O,17.5X1.5 | 92055 | 92055-022 | 2 | ||
| RING-O | 92055A | 92055-035 | 2 | ||
| RING-O,11.5X1.5 | 92055B | 92055-1387 | 1 | ||
| GASKET,10.5X16X1,DRAIN PLUG | 92065 | 92065-058 | 1 | ||
| GASKET,12.5X18X1,DRAIN PLUG | 92065A | 92065-073 | 1 | ||
| GASKET-SET,KX250K | 99995 | 99995-1399 | 1 |
