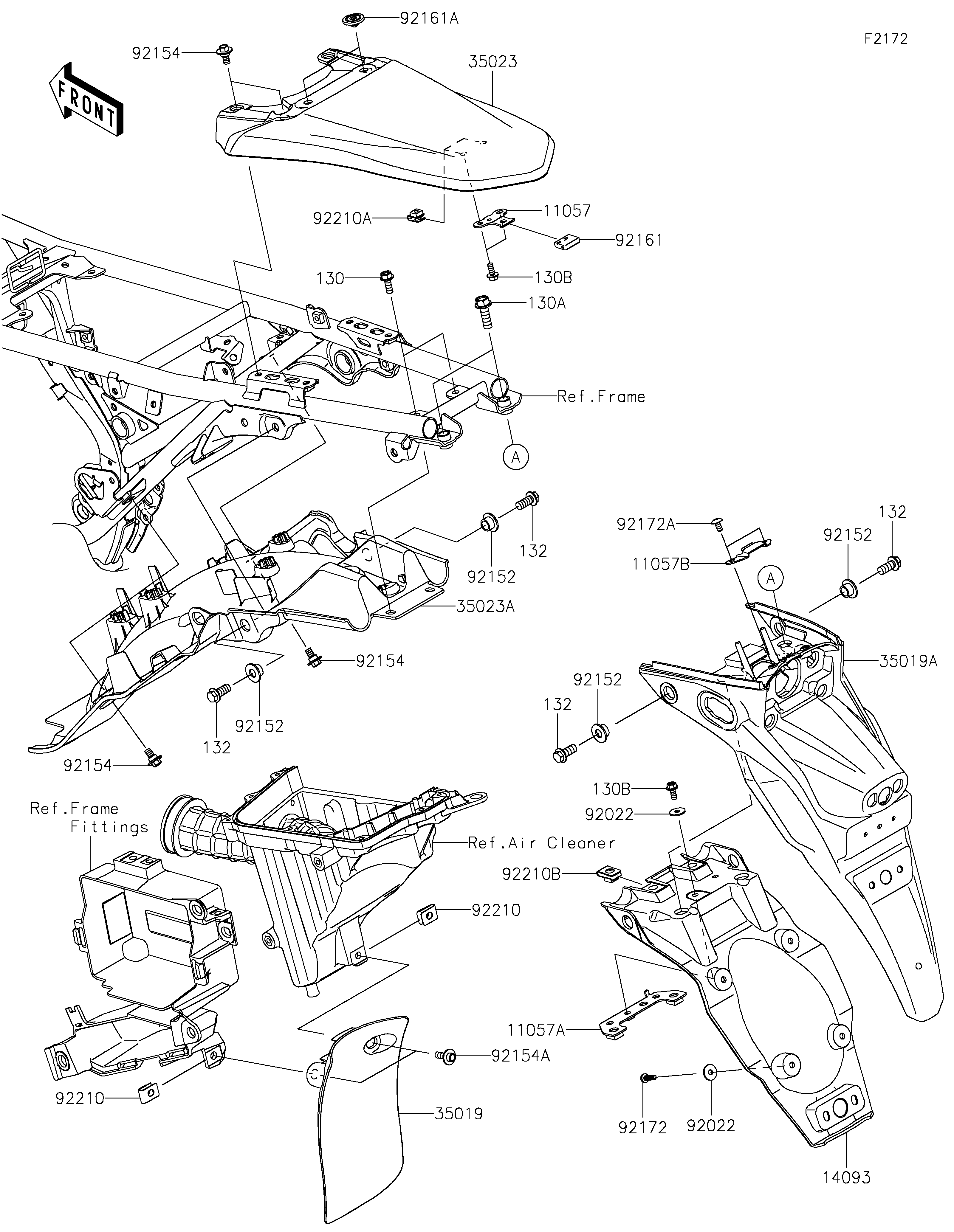

2021 KLX®230 ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
130
130A
130B
130B
132
132
132
132
14093
35019
35019A
35023
35023A
92022
92022
92152
92152
92152
92152
92154
92154
92154
92154A
92161
92161A
92172
92172A
92210
92210
92210A
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-2330 1
BRACKET 11057A 11057-2331 1
BRACKET 11057B 11057-2332 1
BOLT-FLANGED,6X16 130 130BA0616 2
BOLT-FLANGED,8X25 130A 130BA0825 2
BOLT-FLANGED,5X12 130B 130BB0512 3
BOLT-FLANGED-SMALL,8X18 132 132BA0818 4
COVER 14093 14093-0860 1
FLAP 35019 35019-0664 1
FLAP,RR FENDER 35019A 35019-0666 1
FENDER-REAR,L.GREEN 35023 35023-0451-290 1
FENDER-REAR 35023A 35023-0459 1
WASHER,5.2X16X1.2 92022 92022-263 5
COLLAR 92152 92152-2542 4
BOLT,FLANGED,6X9 92154 92154-0546 6
BOLT,FLANGED,6X28 92154A 92154-1739 2
DAMPER,15X21X5.5 92161 92161-1472 1
DAMPER,8X22X10 92161A 92161-1685 2
SCREW,TAPPING,5X16 92172 92172-0790 4
SCREW,CROS,5X10 92172A 92172-1255 2
NUT,6MM 92210 92210-0218 2
NUT,PLATE,5MM 92210A 92210-0262 2
NUT,6MM 92210B 92210-0474 2
