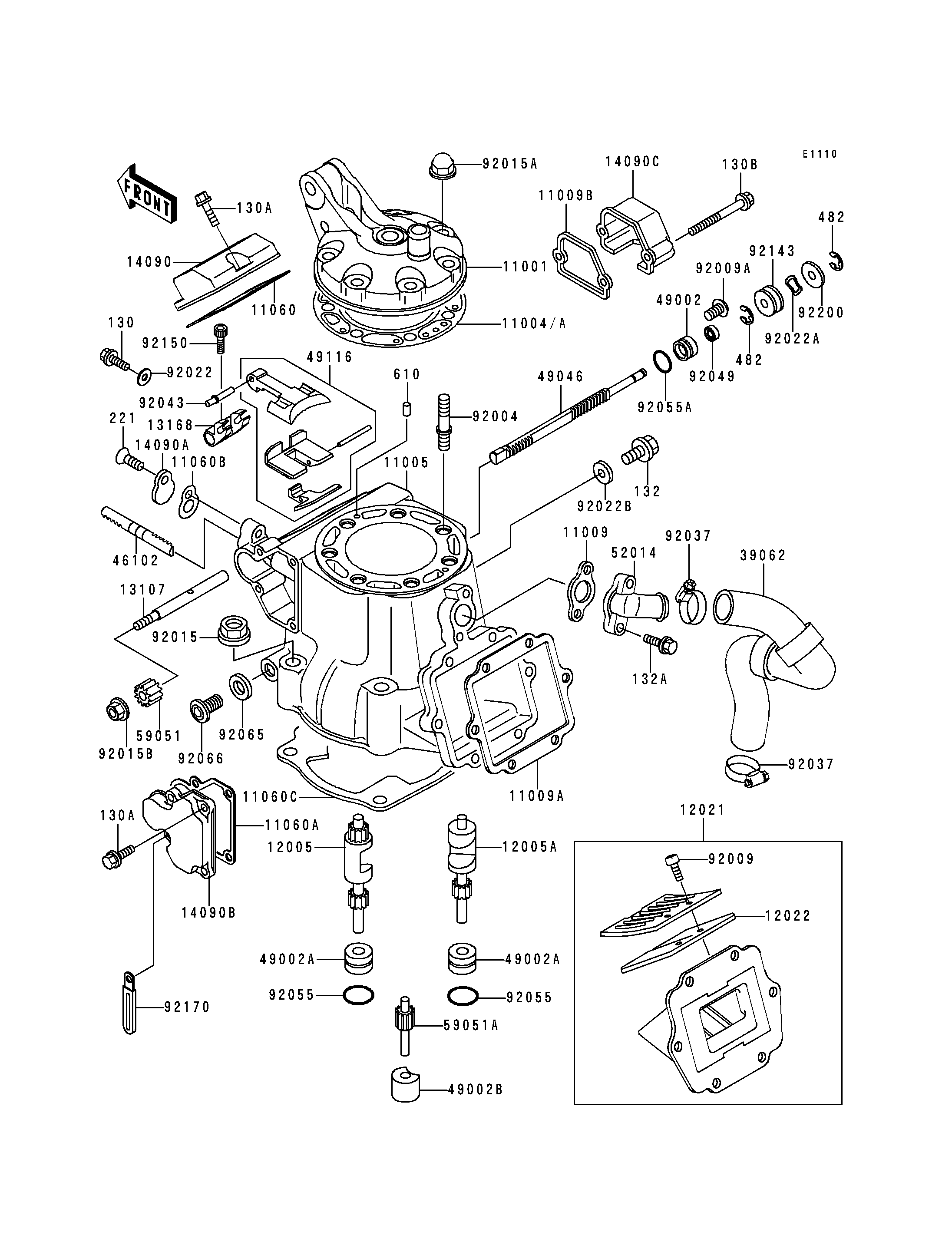

1998 KX250 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-CYLINDER 11001 11001-1425 1
GASKET-HEAD,T=0.26 11004 11004-1240 1
GASKET-HEAD,T=0.46 11004A 11004-1241 1 (OPTION)
CYLINDER-ENGINE 11005 11005-1851 1
GASKET,ELBOW 11009 11009-1935 1
GASKET,REED VALVE 11009A 11009-1950 1
GASKET,GOVERNOR COVER 11009B 11009-1960 1
GASKET,VALVE COVER 11060 11060-1289 1
GASKET,RESONATOR 11060A 11060-1290 1
GASKET,GOVERNOR ROD 11060B 11060-1346 1
GASKET,CYLINDER BASE 11060C 11060-1493 1
VALVE-EXHAUST,LH 12005 12005-1252 1
VALVE-EXHAUST,RH 12005A 12005-1253 1
VALVE-ASSY-REED 12021 12021-1112 1
VALVE-REED 12022 12022-1081 2
SHAFT,MAIN 13107 13107-1284 1
LEVER,MAIN VALVE 13168 13168-1499 1
COVER,VALVE COVER 14090 14090-1219 1
COVER,ROD 14090A 14090-1220 1
COVER,RESONATOR 14090B 14090-1226 1
COVER,GOVERNOR 14090C 14090-1249 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1478 1
ROD 46102 46102-1332 1
GUIDE-VALVE 49002 49002-1087 1
GUIDE-VALVE 49002A 49002-1117 2
GUIDE-VALVE 49002B 49002-1118 1
ROD-GOVERNOR 49046 49046-1072 1
VALVE-ASSY,EXHAUST 49116 49116-1159 1
ELBOW 52014 52014-1077 1
GEAR-SPUR,MAIN VALVE 59051 59051-1252 1
GEAR-SPUR,IDLE 59051A 59051-1275 1
STUD,8X28 92004 92004-1236 7
SCREW,REED VALVE 92009 92009-1014 4
SCREW,5X10 92009A 92009-1502 1
NUT,FLANGED,10MM 92015 92015-077 4
NUT,CAP,8MM 92015A 92015-1151 7
NUT,6MM 92015B 92015-1572 1
WASHER,5.2X13X1 92022 92022-1380 2
WASHER,WAVE 92022A 92022-1978 1
BOLT-FLANGED 130 130G0510 2
BOLT-FLANGED 130A 130G0514 7
BOLT-FLANGED 130B 130G0535 2
BOLT-FLANGED-SMALL 132 132G0608 1
BOLT-FLANGED-SMALL 132A 132G0625 2
SCREW-CSK-CROS,6X12 221 221B0612 1
CIRCLIP-TYPE-E,4MM 482 482J4000 2
ROLLER,4X8 610 610A0408 2
WASHER,6.2X11X1 92022B 92022-304 1
CLAMP,COOLING HOSE 92037 92037-1589 2
PIN,MAIN VALVE 92043 92043-1470 1
SEAL-OIL,RSO-5.5X11X4 92049 92049-1206 1
RING-O,17.5X1.5 92055 92055-022 2
RING-O,11.5X1.5 92055A 92055-1387 1
GASKET,12.5X18X1,DRAIN PLUG 92065 92065-073 1
PLUG,12X10 92066 92066-1222 1
COLLAR 92143 92143-1056 1
BOLT,SOCKET,4X8 92150 92150-1888 1
CLAMP 92170 92170-1514 1
WASHER,5.6X18X1.2 92200 92200-1129 1
