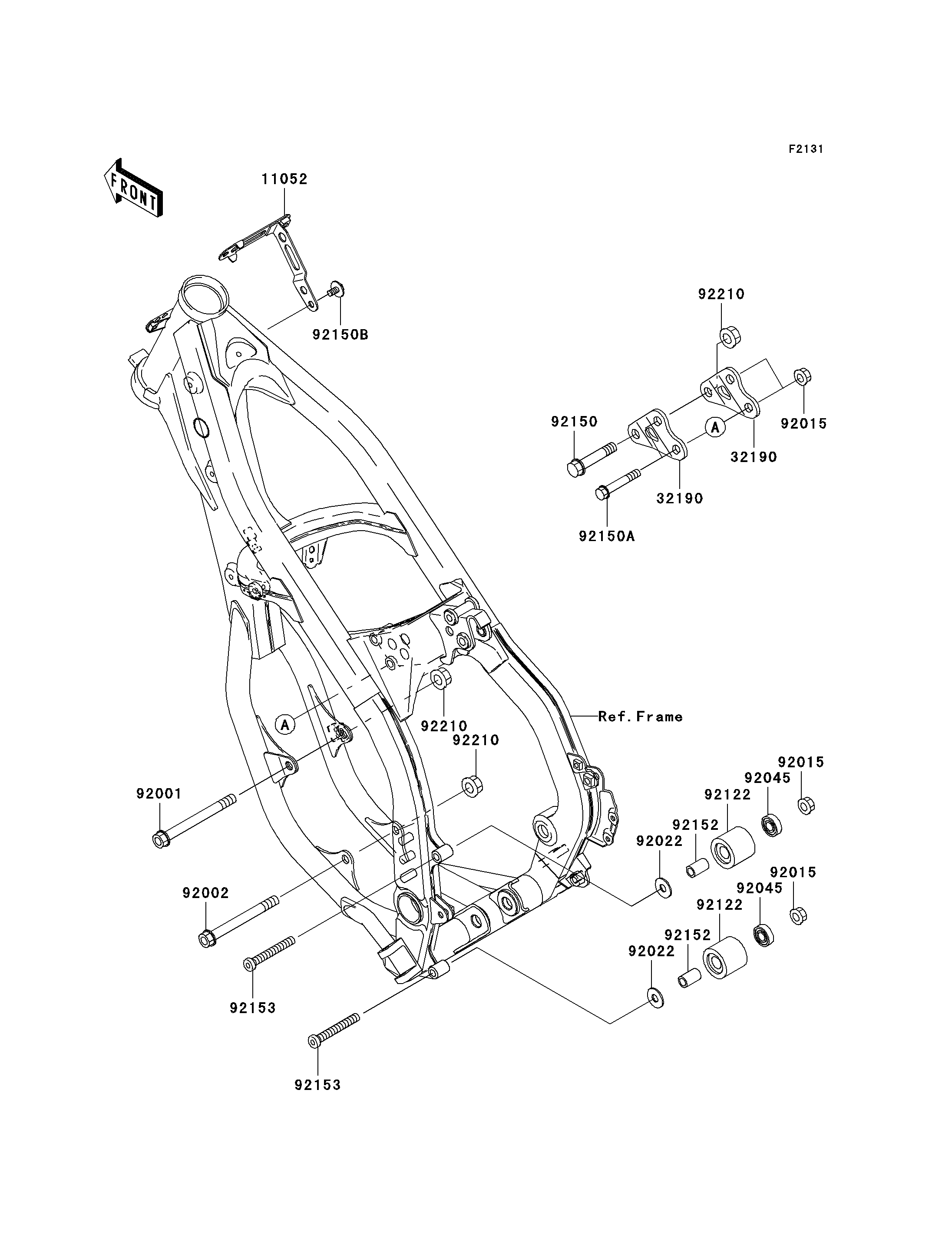

Parts Diagrams |
11052
32190
32190
92001
92002
92015
92015
92015
92022
92022
92045
92045
92122
92122
92150
92150A
92150B
92152
92152
92153
92153
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,IGNITER | 11052 | 11052-1812 | 1 | ||
| BRACKET-ENGINE | 32190 | 32190-1265 | 2 | ||
| BOLT,FLANGED,10X110 | 92001 | 92001-1602 | 1 | ||
| BOLT,FLANGED,10X105 | 92002 | 92002-1491 | 1 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| WASHER,8.5X22X1.5 | 92022 | 92022-1629 | 2 | ||
| BEARING-BALL,608LLU/2A | 92045 | 92045-1009 | 2 | ||
| ROLLER,CHAIN GUIDE | 92122 | 92122-1216 | 2 | ||
| BOLT,FLANGED,10X50 | 92150 | 92150-1125 | 1 | ||
| BOLT,FLANGED,8X50 | 92150A | 92150-1214 | 2 | ||
| BOLT,6X12 | 92150B | 92150-1435 | 1 | ||
| COLLAR,8.5X12.5X20.5 | 92152 | 92152-1340 | 2 | ||
| BOLT,SOCKET,8X60 | 92153 | 92153-1259 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 3 |
