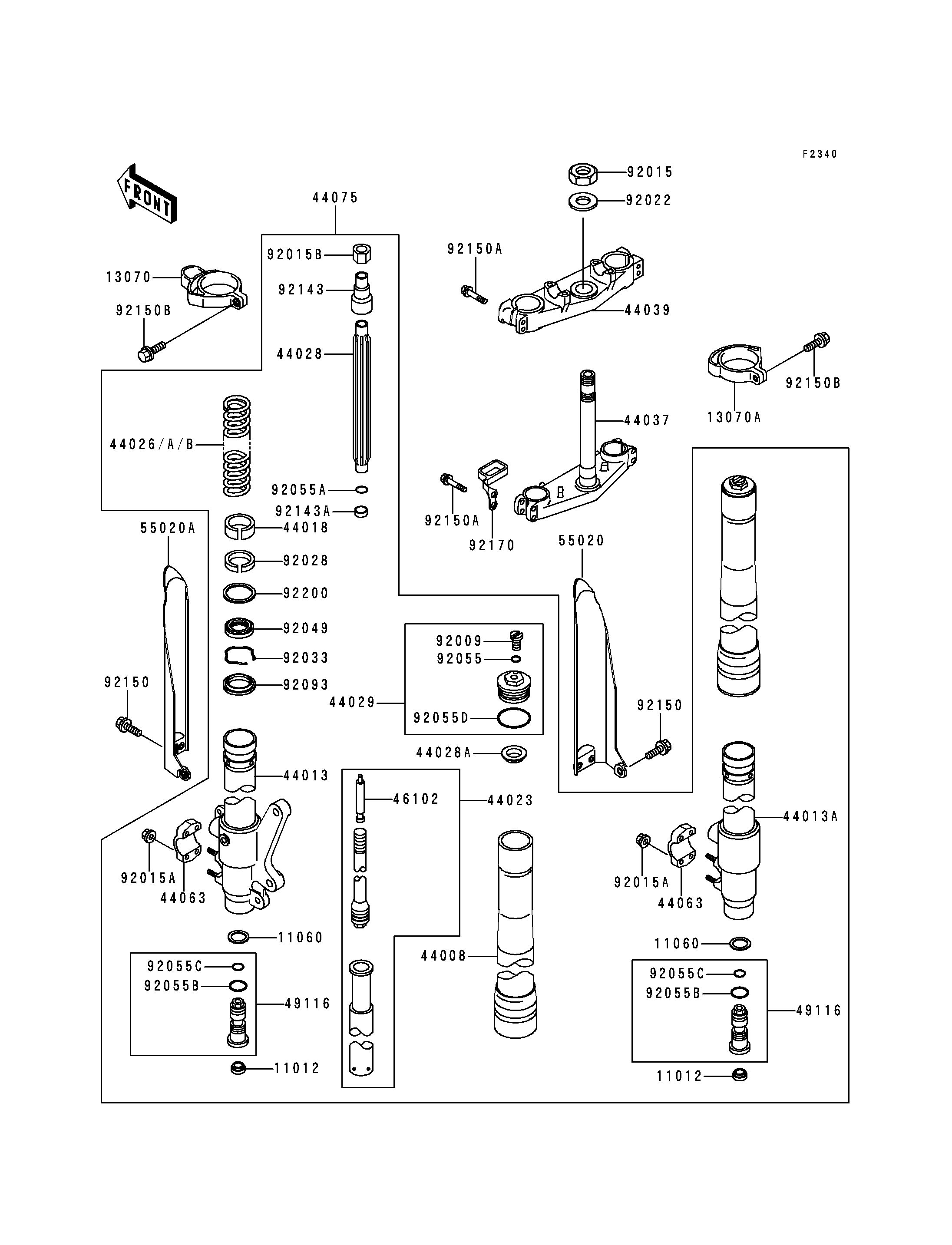

1998 KX125 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1692 2
GASKET 11060 11060-1707 2
GUIDE,PROTECTOR,LH,WHITE 13070 13070-1289-RZ 1
GUIDE,PROTECTOR,RH,WHITE 13070A 13070-1290-RZ 1
PIPE-FORK OUTER,A.N.GOLD 44008 44008-1042-14 2
PIPE-FORK INNER,LH 44013 44013-1447 1
PIPE-FORK INNER,RH 44013A 44013-1448 1
PISTON-FORK,INNER PIPE 44018 44018-1059 2
CYLINDER-SET-FORK 44023 44023-1124 2
SPRING-FRONT FORK,K=0.39 44026 44026-1660 2
SPRING-FRONT FORK,K=0.38 44026A 44026-1666 2 (OPTION)
SPRING-FRONT FORK,K=0.40 44026B 44026-1668 2 (OPTION)
GUIDE-FORK SPRING 44028 44028-1096 2
GUIDE-FORK SPRING 44028A 44028-1097 2
SEAT-FORK SPRING 44029 44029-1159 2
HOLDER-FORK UNDER 44037 44037-1371 1
HOLDER-FORK UPPER 44039 44039-1263 1
HOLDER-FRONT AXLE 44063 44063-1060 2
DAMPER-SET-FORK,A.N.GOLD 44075 44075-1062-14 1
ROD,FORK,INNER 46102 46102-1403 2
VALVE-ASSY,FORK 49116 49116-1155 2
GUARD,FORK,RH,WHITE 55020 55020-1493-RZ 1
GUARD,FORK,LH,WHITE 55020A 55020-1554-RZ 1
SCREW 92009 92009-1568 2
NUT,24MM 92015 92015-1057 1
NUT,FLANGED,6MM 92015A 92015-1078 8
NUT 92015B 92015-1905 2
WASHER,25X36X2.3 92022 92022-250 1
BUSHING 92028 92028-1755 2
RING-SNAP 92033 92033-1264 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1440 2
RING-O 92055 92055-1441 2
RING-O 92055A 92055-1442 2
RING-O,FORK VALVE 92055B 92055-1547 2
RING-O,FORK VALVE 92055C 92055-1548 2
RING-O 92055D 92055-1549 2
SEAL,FORK OUTER TUBE 92093 92093-1392 2
COLLAR,FORK 92143 92143-1793 2
COLLAR,FORK 92143A 92143-1913 2
BOLT,6X12 92150 92150-1435 6
BOLT,FLANGED,8X40 92150A 92150-1516 8
BOLT,5X16 92150B 92150-1802 2
CLAMP,HOSE 92170 92170-1604 1
WASHER 92200 92200-1006 2
