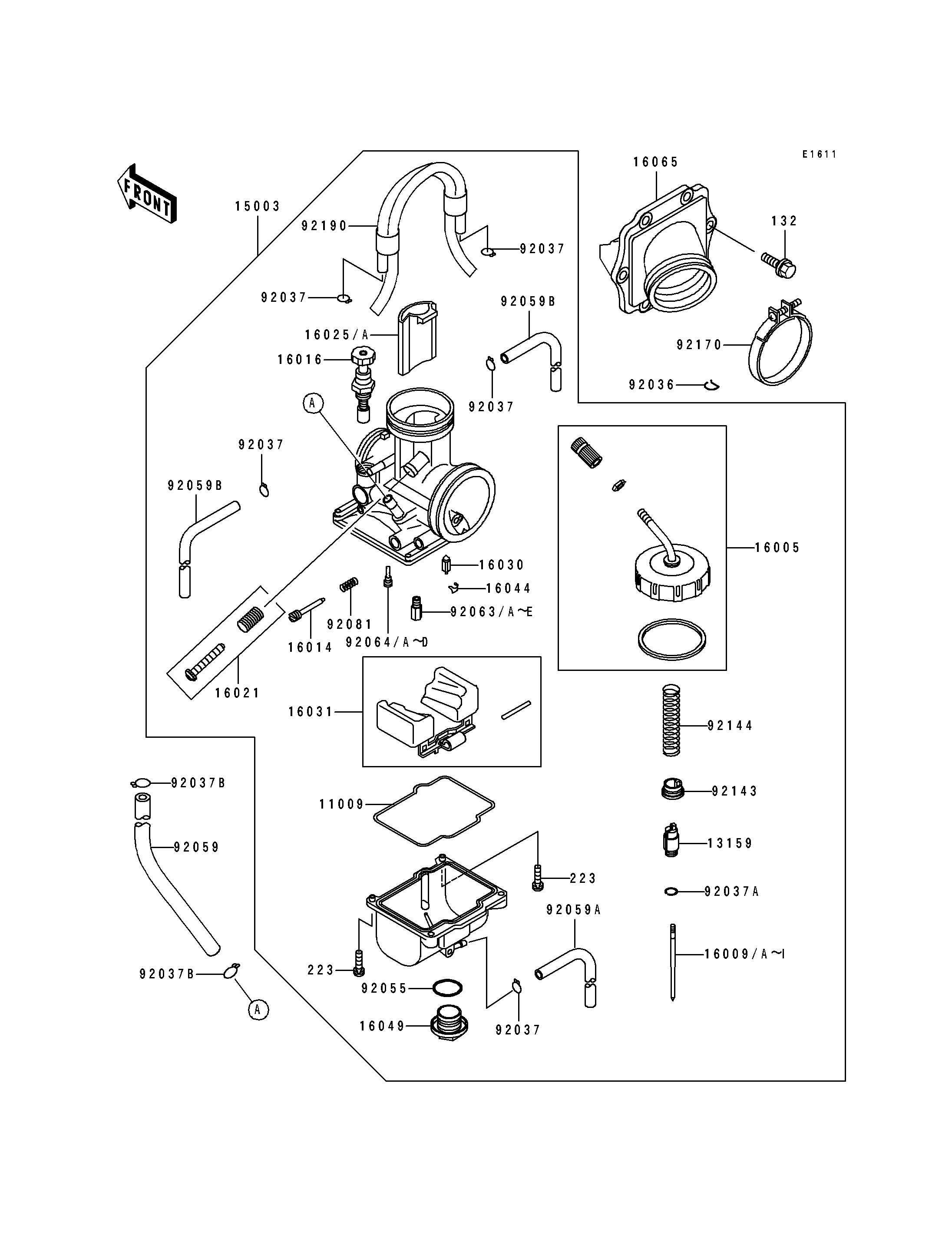

1997 KX125 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1716 1
CONNECTOR,THROTTLE CABLE 13159 13159-1063 1
CARBURETOR-ASSY 15003 15003-1275 1
TOP-CHAMBER 16005 16005-1071 1
NEEDLE-JET,N2DJ 16009 16009-1835 1 (OPTION)
NEEDLE-JET,N2DK 16009A 16009-1836 1 (OPTION)
NEEDLE-JET,N2DL 16009B 16009-1837 1 (OPTION)
NEEDLE-JET,N2EJ 16009C 16009-1840 1
NEEDLE-JET,N2EK 16009D 16009-1841 1 (OPTION)
NEEDLE-JET,N2EL 16009E 16009-1842 1 (OPTION)
NEEDLE-JET,N2DH 16009F 16009-1876 1 (OPTION)
NEEDLE-JET,N2DW 16009G 16009-1877 1 (OPTION)
NEEDLE-JET,N2EH 16009H 16009-1878 1 (OPTION)
NEEDLE-JET,N2EW 16009I 16009-1879 1 (OPTION)
SCREW-PILOT AIR 16014 16014-1058 1
PLUNGER 16016 16016-1085 1
SCREW-THROTTLE STOP 16021 16021-1198 1
VALVE-THROTTLE,CA 5 16025 16025-1199 1
VALVE-THROTTLE,CA 6 16025A 16025-1200 1 (OPTION)
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1084 1
CLAMP,FLOAT VALVE 16044 16044-007 1
COVER-MAIN JET 16049 16049-1051 1
HOLDER-CARBURETOR 16065 16065-1341 1
RING-SNAP 92036 92036-018 1
CLAMP,TUBE 92037 92037-1396 5
CLAMP,JET NEEDLE 92037A 92037-1401 1
CLAMP,TUBE 92037B 92037-147 2
RING-O,MAIN JET COVER 92055 92055-1167 1
TUBE,5.3X10.5X130 92059 92059-1393 1
TUBE,3.5X6.5X330 92059A 92059-1897 1
BOLT-FLANGED-SMALL 132 132G0620 6
SCREW-PAN-WS-CROS 223 223C0416 4
TUBE,4X7X480 92059B 92059-1898 2
JET-MAIN,#155 92063 92063-1366 1 (OPTION)
JET-MAIN,#158 92063A 92063-1367 1 (OPTION)
JET-MAIN,#160 92063B 92063-1368 1
JET-MAIN,#162 92063C 92063-1369 1 (OPTION)
JET-MAIN,#165 92063D 92063-1370 1 (OPTION)
JET-MAIN,#170 92063E 92063-1372 1 (OPTION)
JET-PILOT,#35 92064 92064-1138 1 (OPTION)
JET-PILOT,#38 92064A 92064-1139 1 (OPTION)
JET-PILOT,#40 92064B 92064-1140 1
JET-PILOT,#42 92064C 92064-1141 1 (OPTION)
JET-PILOT,#45 92064D 92064-1142 1 (OPTION)
SPRING,ADJUST SCREW 92081 92081-1555 1
COLLAR,THROTTLE VALVE 92143 92143-1201 1
SPRING,THROTTLE VALVE 92144 92144-1284 1
CLAMP 92170 92170-1686 1
TUBE,4X7X580 92190 92190-1609 1
