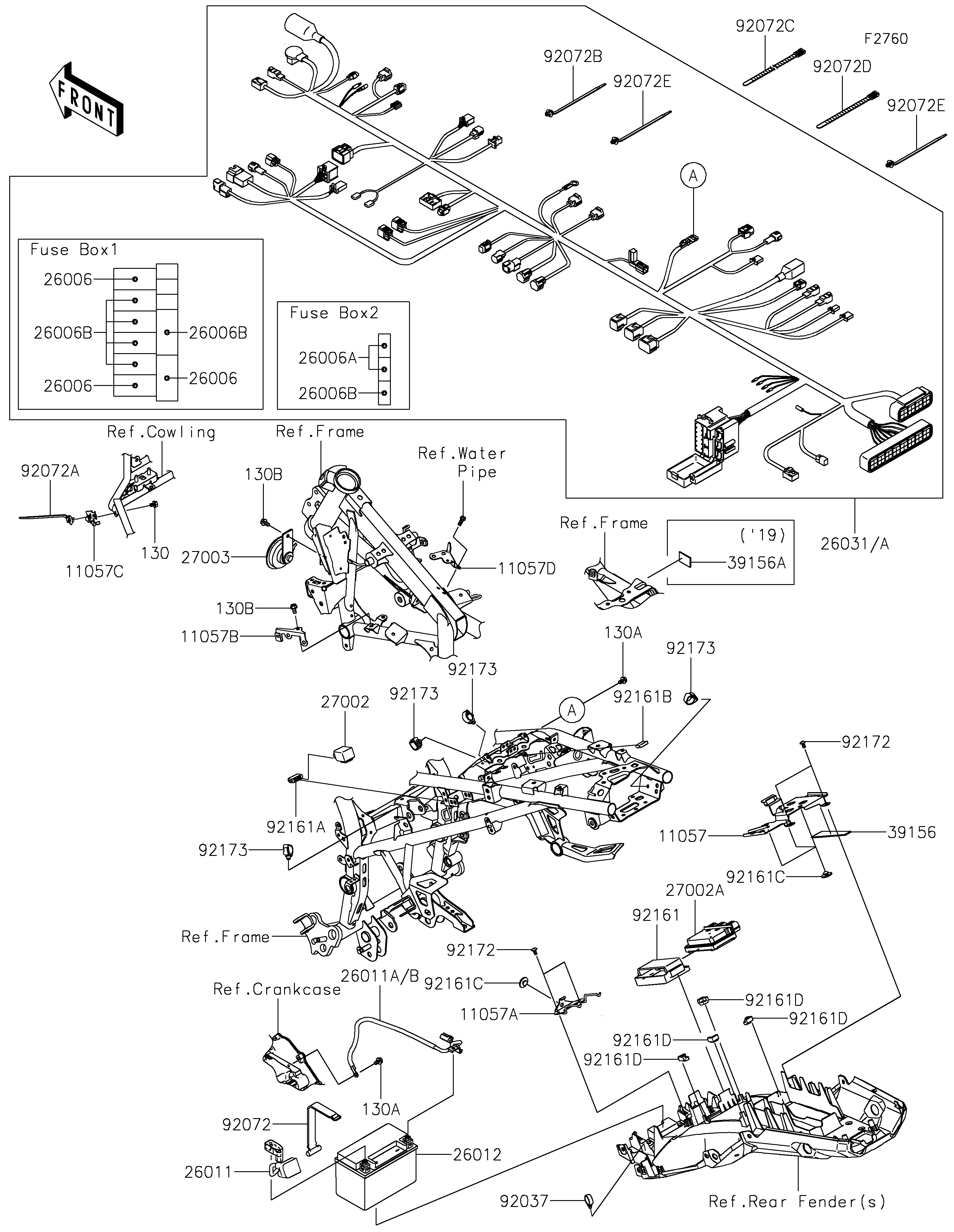

2020 VERSYS®-X 300 - Chassis Electrical Equipment
11057
11057A
11057B
11057C
11057D
130
130A
130A
130B
130B
26006
26006
26006
26006A
26006B
26006B
26006B
26011
26011B
26012
26031
26031A
27002
27002A
27003
39156
39156A
92037
92072
92072A
92072B
92072C
92072D
92072E
92072E
92161
92161A
92161B
92161C
92161C
92161D
92161D
92161D
92161D
92172
92172
92173
92173
92173
92173
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ECU,UPP | 11057 | 11057-0558 | 1 | ||
| BRACKET,RR FENDER | 11057A | 11057-0559 | 1 | ||
| BRACKET,FRM PIPE,LH | 11057B | 11057-0566 | 1 | ||
| BRACKET,RELAY | 11057C | 11057-0703 | 1 | ||
| BRACKET,FRM PIPE,RH | 11057D | 11057-1220 | 1 | ||
| BOLT-FLANGED,6X8 | 130 | 130BA0608 | 1 | ||
| BOLT-FLANGED,6X10 | 130A | 130BA0610 | 2 | ||
| BOLT-FLANGED,6X12 | 130B | 130BA0612 | 2 | ||
| FUSE,MINI BLADE,15A,BLUE | 26006 | 26006-0001 | 3 | ||
| FUSE,MINI BLADE,5A,TAN | 26006A | 26006-1077 | 2 | ||
| FUSE,MINI BLADE,10A,RED | 26006B | 26006-1078 | 6 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-0960 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011B | 26011-1886 | 1 | ||
| BATTERY,FTX9-BS,12V 8AH | 26012 | 26012-0608 | 1 | ||
| HARNESS,MAIN | 26031 | 26031-2374 | 1 | US | |
| HARNESS,MAIN | 26031A | 26031-2375 | 1 | CA | |
| RELAY-ASSY,SIGNAL LAMP | 27002 | 27002-0006 | 1 | ||
| RELAY-ASSY | 27002A | 27002-0028 | 1 | ||
| HORN | 27003 | 27003-0124 | 1 | ||
| PAD,28X112X2 | 39156 | 39156-2145 | 1 | ||
| PAD,31X23X2 | 39156A | 39156-2462 | 1 | ||
| CLAMP,HOSE | 92037 | 92037-1827 | 1 | ||
| BAND | 92072 | 92072-0749 | 1 | ||
| BAND | 92072A | 92072-0807 | 1 | ||
| BAND,POP-2763 | 92072B | 92072-0813 | 11 | ||
| BAND,L=250 | 92072C | 92072-1237 | 1 | ||
| BAND,L=140 | 92072D | 92072-1293 | 6 | ||
| BAND,OS170-FT7(BLACK) | 92072E | 92072-1414 | 11 | US 1 | |
| DAMPER,RELAY BOX | 92161 | 92161-0203 | 1 | ||
| DAMPER,15X25X8.5 | 92161A | 92161-1443 | 1 | ||
| DAMPER,15X21X5.5 | 92161B | 92161-1472 | 1 | ||
| DAMPER,8X22X10 | 92161C | 92161-1685 | 4 | ||
| DAMPER,ECU CORNER | 92161D | 92161-1909 | 4 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 4 | ||
| CLAMP,HOLDER CLIP | 92173 | 92173-0868 | 4 | ||
| BAND,OS170-FT7(BLACK) | 92072E | 92072-1414 | 12 | CA 1 |
