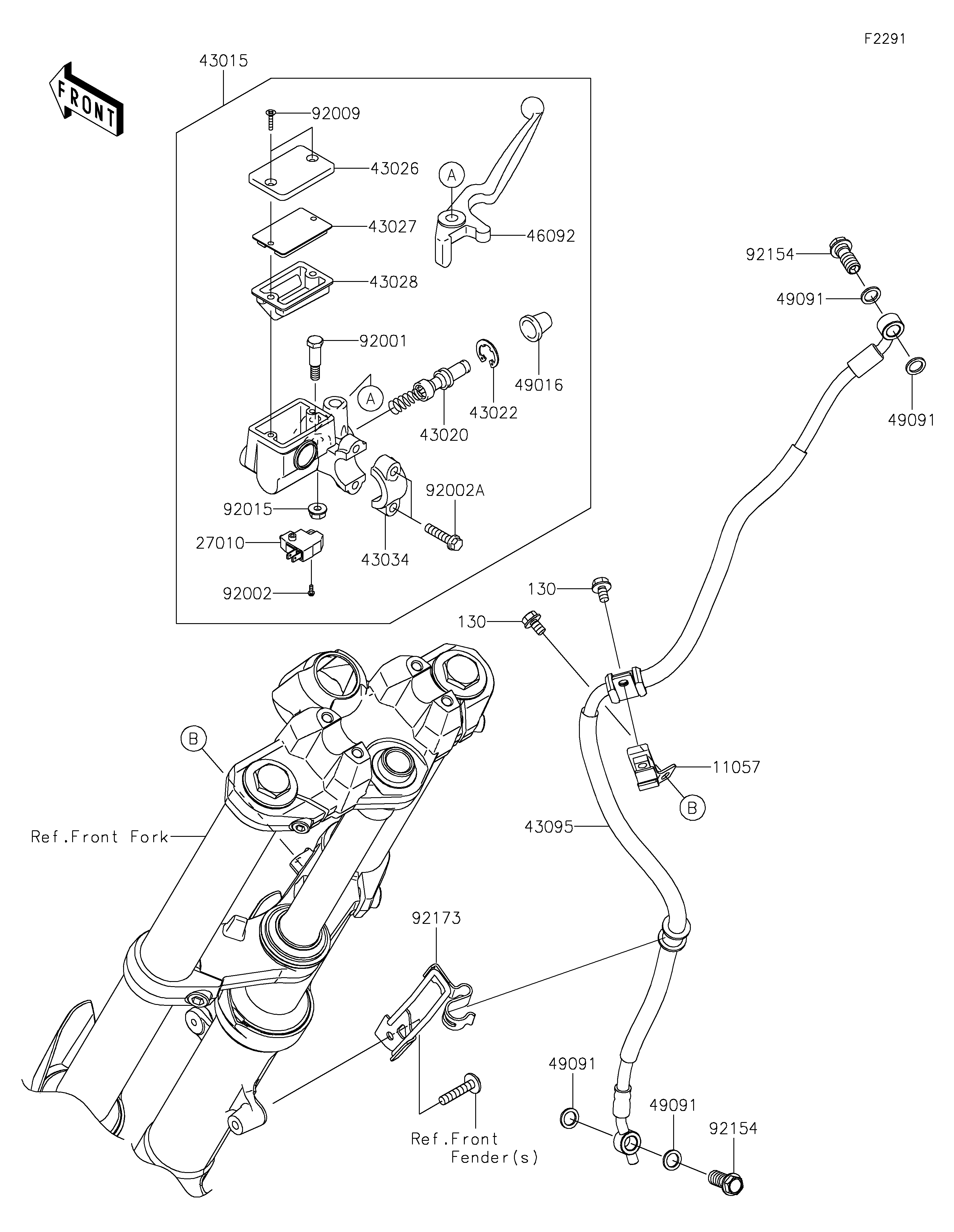

2020 VERSYS®-X 300 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
130
130
27010
43015
43020
43022
43026
43027
43028
43034
43095
46092
49016
49091
49091
49091
49091
92001
92002
92002A
92009
92015
92154
92154
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-0629 1
BOLT-FLANGED,6X10 130 130BA0610 2
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0731 1
PISTON-COMP-BRAKE 43020 43020-0022 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-1057 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR,916MM 43095 43095-1445 1
LEVER-GRIP,FRONT BRAKE 46092 46092-1203 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT,BANJO,10X23 92154 92154-2560 2
CLAMP,FORK OUTER TUBE 92173 92173-1654 1
