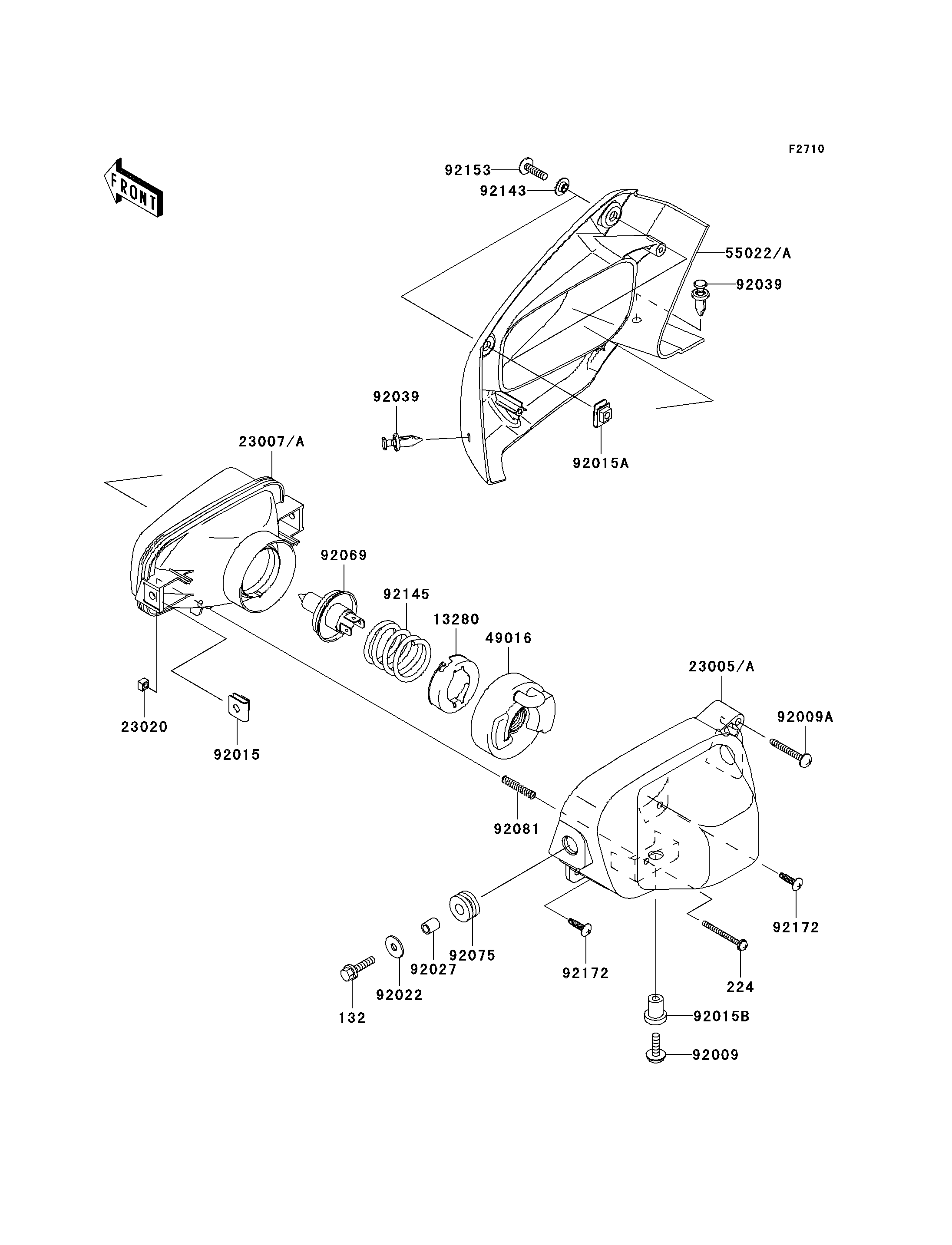

2007 Brute Force 650 4x4 Hardwoods Green HD - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
132
224
13280
23005
23005A
23007
23007A
23020
49016
55022
55022A
92009
92009A
92015
92015A
92015B
92022
92027
92039
92039
92069
92075
92081
92143
92145
92153
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BA0625 4
SCREW-PAN-WP-CROS,4X45 224 224AA0445 2
HOLDER,BULB SETTING 13280 13280-1198 2
BODY-COMP-HEAD LAMP,LH 23005 23005-1180 1
BODY-COMP-HEAD LAMP,RH 23005A 23005-1181 1
LENS-COMP,HEAD LAMP,LH 23007 23007-1389 1
LENS-COMP,HEAD LAMP,RH 23007A 23007-1390 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
COVER-SEAL,HEAD LAMP 49016 49016-1213 2
COVER-HEAD LAMP,LH,F.BLACK 55022 55022-0017-6Z 1
COVER-HEAD LAMP,RH,F.BLACK 55022A 55022-0018-6Z 1
SCREW,6X22 92009 92009-1664 2
SCREW,TAPPING,5X40 92009A 92009-1928 2
NUT,6MM 92015 92015-1094 4
NUT,6MM 92015A 92015-1602 4
NUT,RUBBER,6MM 92015B 92015-1692 2
WASHER,6.5X20X1.6 92022 92022-125 4
COLLAR,6.8X10X12 92027 92027-162 4
RIVET 92039 92039-1229 4
BULB,12V 45/45W,T15 92069 92069-1114 2
DAMPER 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR 92143 92143-1087 4
SPRING,BULB SETTING 92145 92145-1346 2
BOLT,SOCKET,6X22 92153 92153-0574 4
SCREW 92172 92172-1072 4
