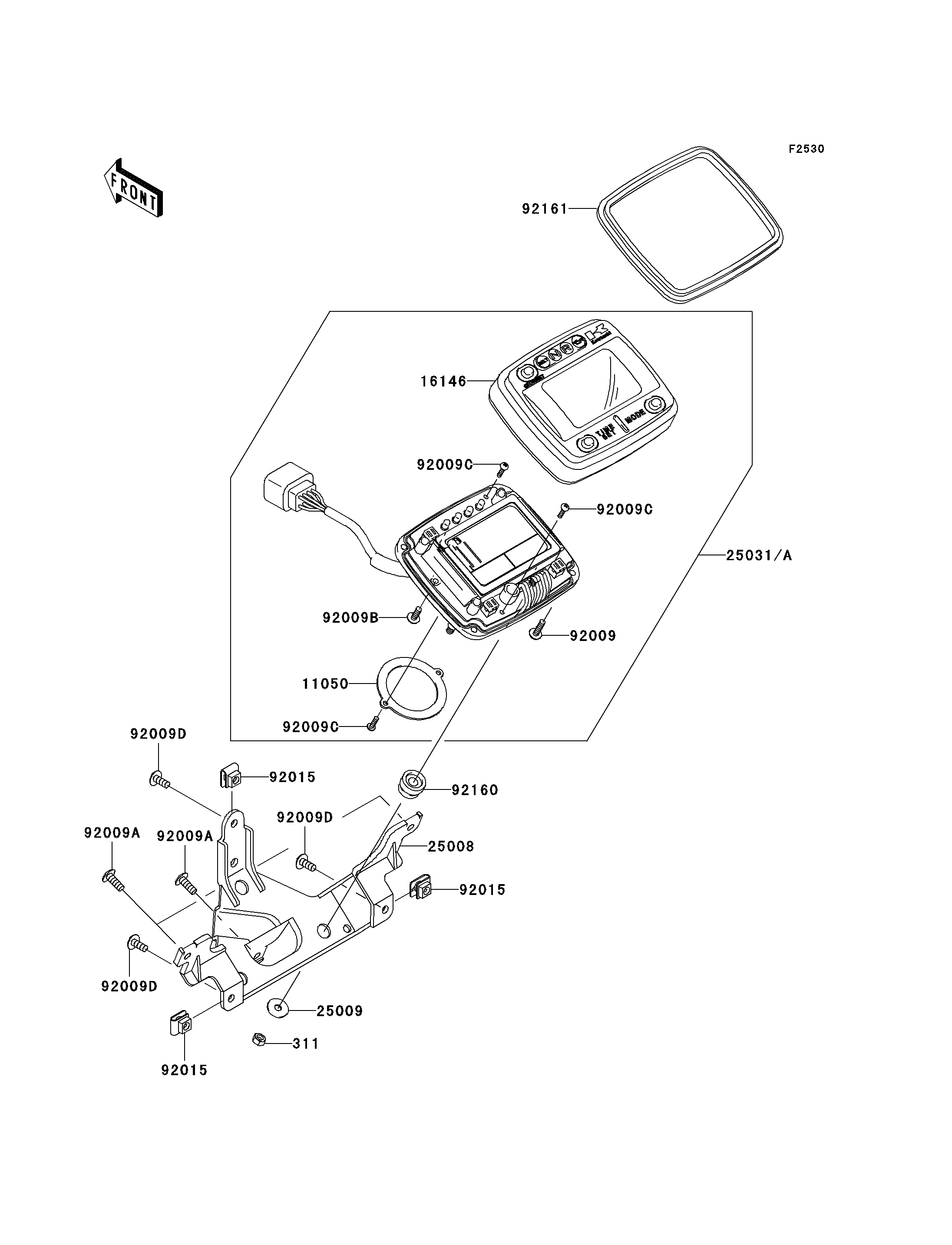

2007 Brute Force 650 4x4 Hardwoods Green HD - Meter(s)
311
11050
16146
25008
25009
92009
92009A
92009A
92009B
92009C
92009C
92009C
92009D
92009D
92009D
92015
92015
92015
92160
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT-HEX | 311 | 311AB0500 | 3 | ||
| BRACKET,METER | 11050 | 11050-1932 | 1 | ||
| COVER-ASSY,UPPER | 16146 | 16146-0011 | 1 | ||
| BRACKET-METER | 25008 | 25008-0003 | 1 | ||
| WASHER,5.2X16X1.2 | 25009 | 25009-004 | 3 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-1163 | 4 | ||
| SCREW,TAPPING,5X14 | 92009A | 92009-1197 | 3 | ||
| SCREW,TAPPING,4X12 | 92009B | 92009-1254 | 1 | ||
| SCREW,3X12 | 92009C | 92009-1326 | 4 | ||
| SCREW,5X12 | 92009D | 92009-1652 | 3 | ||
| NUT,5MM | 92015 | 92015-1573 | 3 | ||
| DAMPER | 92160 | 92160-1460 | 3 | ||
| DAMPER,METER,UPP | 92161 | 92161-1114 | 1 | ||
| METER-ASSY,MPH | 25031 | 25031-0034 | 1 | US | |
| METER-ASSY,KPH | 25031A | 25031-0057 | 1 | CN |
