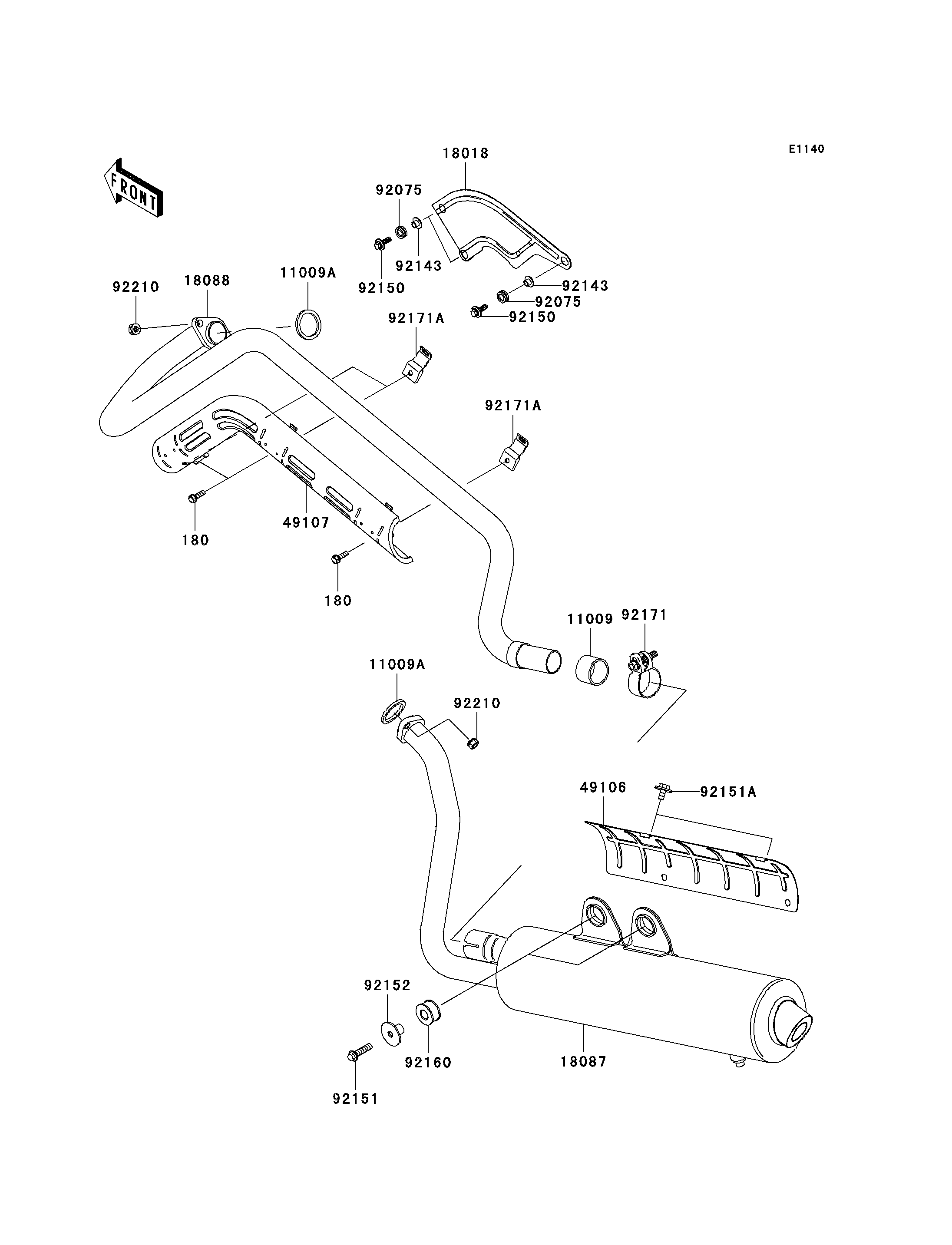

2007 Brute Force 650 4x4 Hardwoods Green HD - Muffler(s)
180
180
11009
11009A
11009A
18018
18087
18088
49106
49107
92075
92075
92143
92143
92150
92150
92151
92151A
92152
92160
92171
92171A
92171A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WS,6X20 | 180 | 180BD0620 | 3 | ||
| GASKET,MUFFLER CONNECTING | 11009 | 11009-1865 | 1 | ||
| GASKET,EXHAUST HOLDER | 11009A | 11009-1894 | 2 | ||
| PLATE-HEAT GUARD | 18018 | 18018-1134 | 1 | ||
| MUFFLER | 18087 | 18087-0077 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-1140 | 1 | ||
| COVER-MUFFLER | 49106 | 49106-1291 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1210 | 1 | ||
| DAMPER | 92075 | 92075-1947 | 3 | ||
| COLLAR | 92143 | 92143-1057 | 3 | ||
| BOLT,FLANGED,6X20 | 92150 | 92150-1633 | 3 | ||
| BOLT,8X32 | 92151 | 92151-1446 | 2 | ||
| BOLT,UPSET-WP,6X12 | 92151A | 92151-1944 | 4 | ||
| COLLAR,MUFFLER | 92152 | 92152-1152 | 2 | ||
| DAMPER,MUFFLER | 92160 | 92160-1990 | 2 | ||
| CLAMP | 92171 | 92171-1330 | 1 | ||
| CLAMP | 92171A | 92171-1357 | 3 | ||
| NUT,8MM | 92210 | 92210-1242 | 4 |
