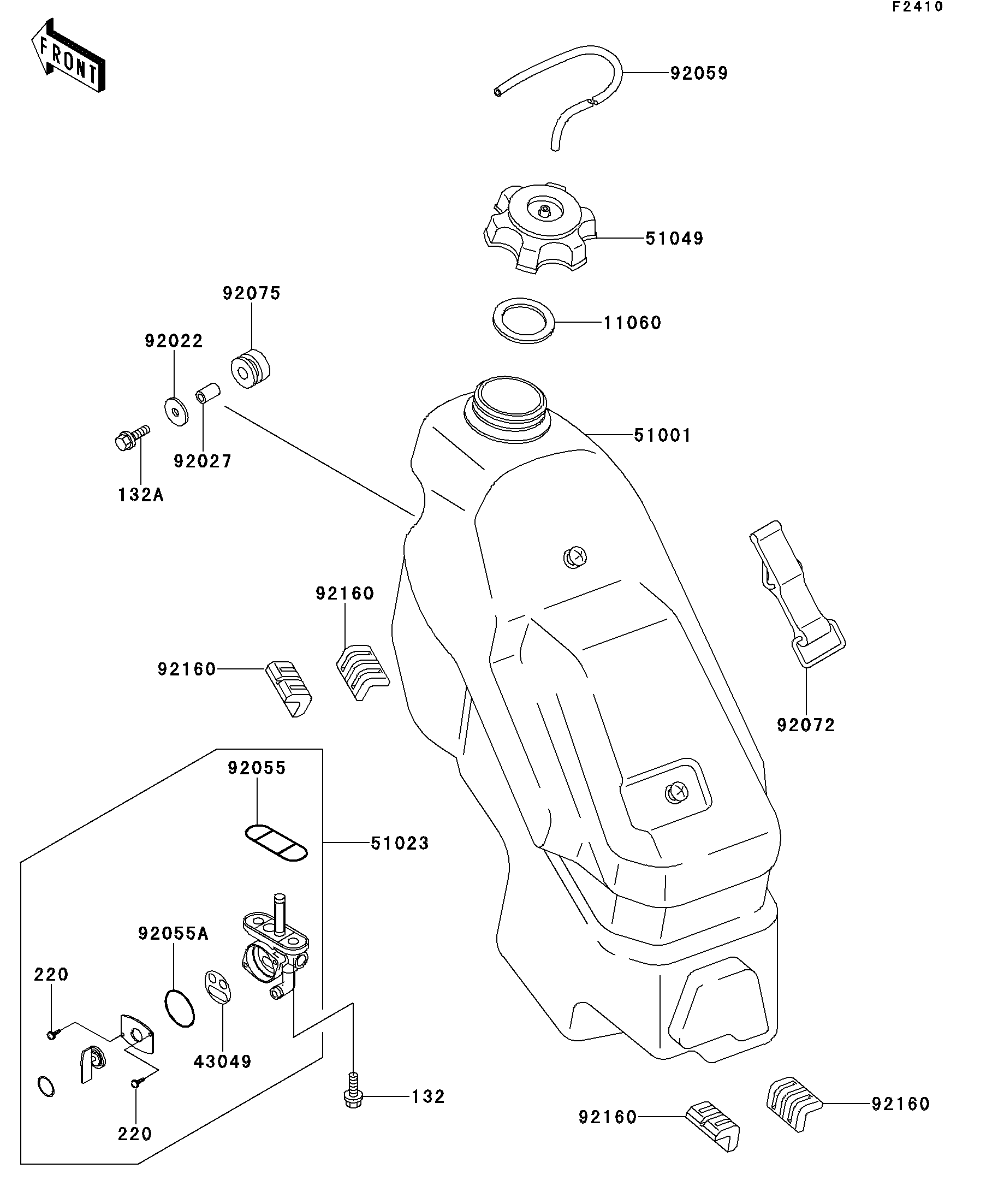

Parts Diagrams |
11060
132
132A
220
220
43049
51001
51023
51049
92022
92027
92055
92055A
92059
92072
92075
92160
92160
92160
92160
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,FUEL TANK CAP | 11060 | 11060-1340 | 1 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0612 | 2 | ||
| BOLT-FLANGED-SMALL | 132A | 132G0625 | 1 | ||
| SCREW-PAN-CROS | 220 | 220B0308 | 2 | ||
| PACKING,TAP VALVE | 43049 | 43049-1066 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-1360 | 1 | ||
| TAP-ASSY,FUEL | 51023 | 51023-1182 | 1 | ||
| CAP-TANK,FUEL | 51049 | 51049-1089 | 1 | ||
| WASHER,6.5X24X2 | 92022 | 92022-1690 | 1 | ||
| COLLAR,6.8X10X14 | 92027 | 92027-1966 | 1 | ||
| RING-O,FUEL TAP PACKING | 92055 | 92055-1112 | 1 | ||
| RING-O,TAP LEVER | 92055A | 92055-1419 | 1 | ||
| TUBE,5X9X350 | 92059 | 92059-1265 | 1 | ||
| BAND,FUEL TANK | 92072 | 92072-1229 | 1 | ||
| DAMPER | 92075 | 92075-1787 | 1 | ||
| DAMPER,FUEL TANK | 92160 | 92160-1328 | 4 |
