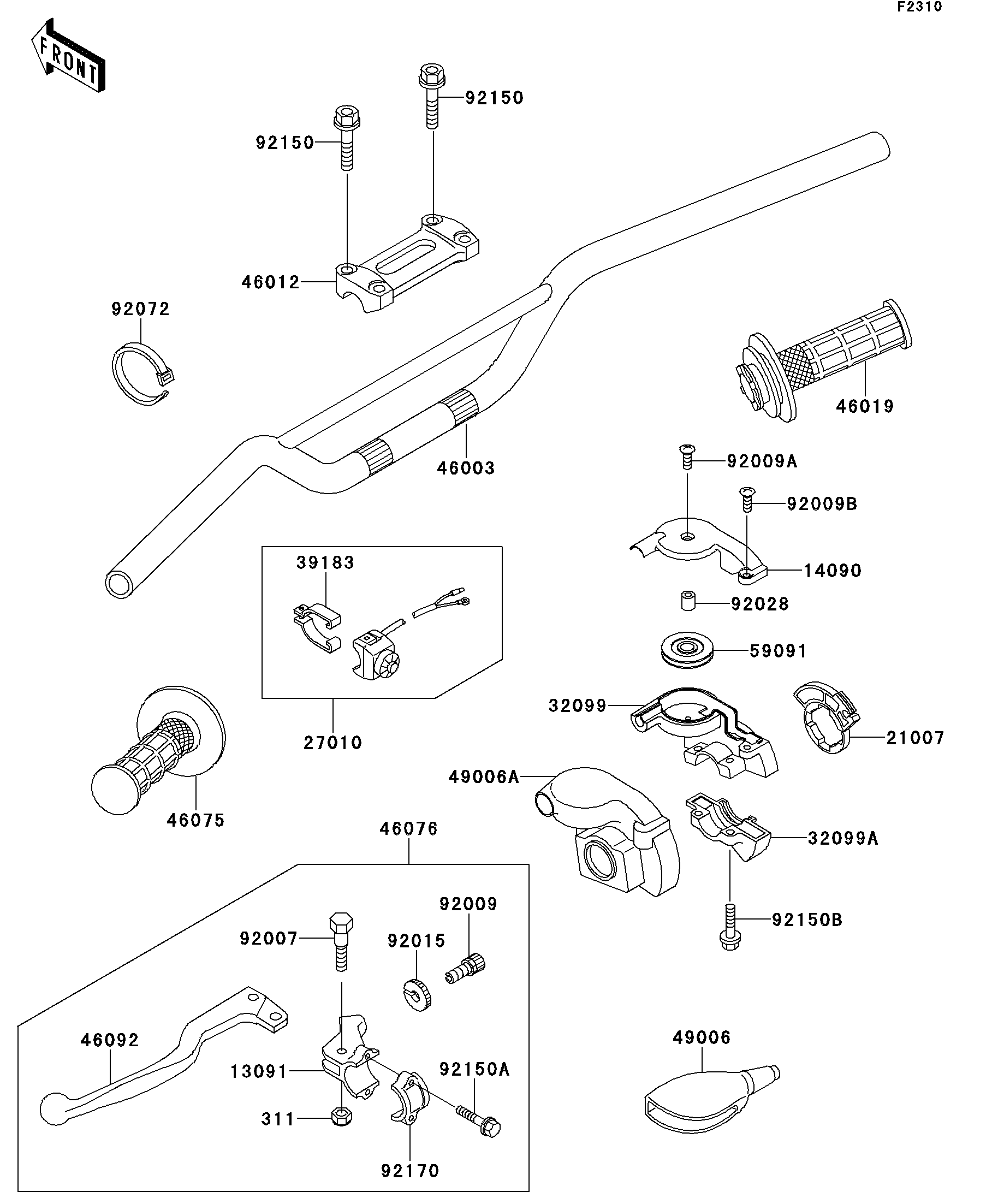

1993 KX250 - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13091
14090
21007
27010
311
32099
32099A
39183
46003
46012
46019
46075
46076
46092
49006
49006A
59091
92007
92009
92009A
92009B
92015
92028
92072
92150
92150
92150A
92150B
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CLUTCH LEVER 13091 13091-1728 1
COVER,THROTTLE CASE,UPP 14090 14090-1161 1
ROTOR,THROTTLE 21007 21007-1242 1
SWITCH,ENGINE STOP 27010 27010-1161 1
NUT-HEX 311 311C0500 1
CASE,THROTTLE,UPP 32099 32099-1137 1
CASE,THROTTLE,LWR 32099A 32099-1138 1
BAND-ASSY,ENGINE STOP SWITCH 39183 39183-1059 1
HANDLE,L.GREEN 46003 46003-1312-CC 1
HOLDER-HANDLE,UPP 46012 46012-1190 1
GRIP-ASSY,THROTTLE 46019 46019-1076 1
GRIP,LH 46075 46075-1024 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-1182 1
LEVER-GRIP,CLUTCH 46092 46092-1165 1
BOOT,LEVER HOLDER 49006 49006-1017 1
BOOT,THROTTLE 49006A 49006-1271 1
PULLEY,THROTTLE 59091 59091-1102 1
BOLT,5X22 92007 92007-046 1
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
SCREW 92009A 92009-1674 1
SCREW 92009B 92009-1675 1
NUT,CABLE ADJUST LOCK 92015 92015-1596 1
BUSHING,THROTTLE CASE 92028 92028-1658 1
BAND,L=123 92072 92072-030 1
BOLT,FLANGED,8X30 92150 92150-1455 4
BOLT 92150A 92150-1474 2
BOLT 92150B 92150-1559 2
CLAMP,LEVER HOLDER 92170 92170-1226 1
