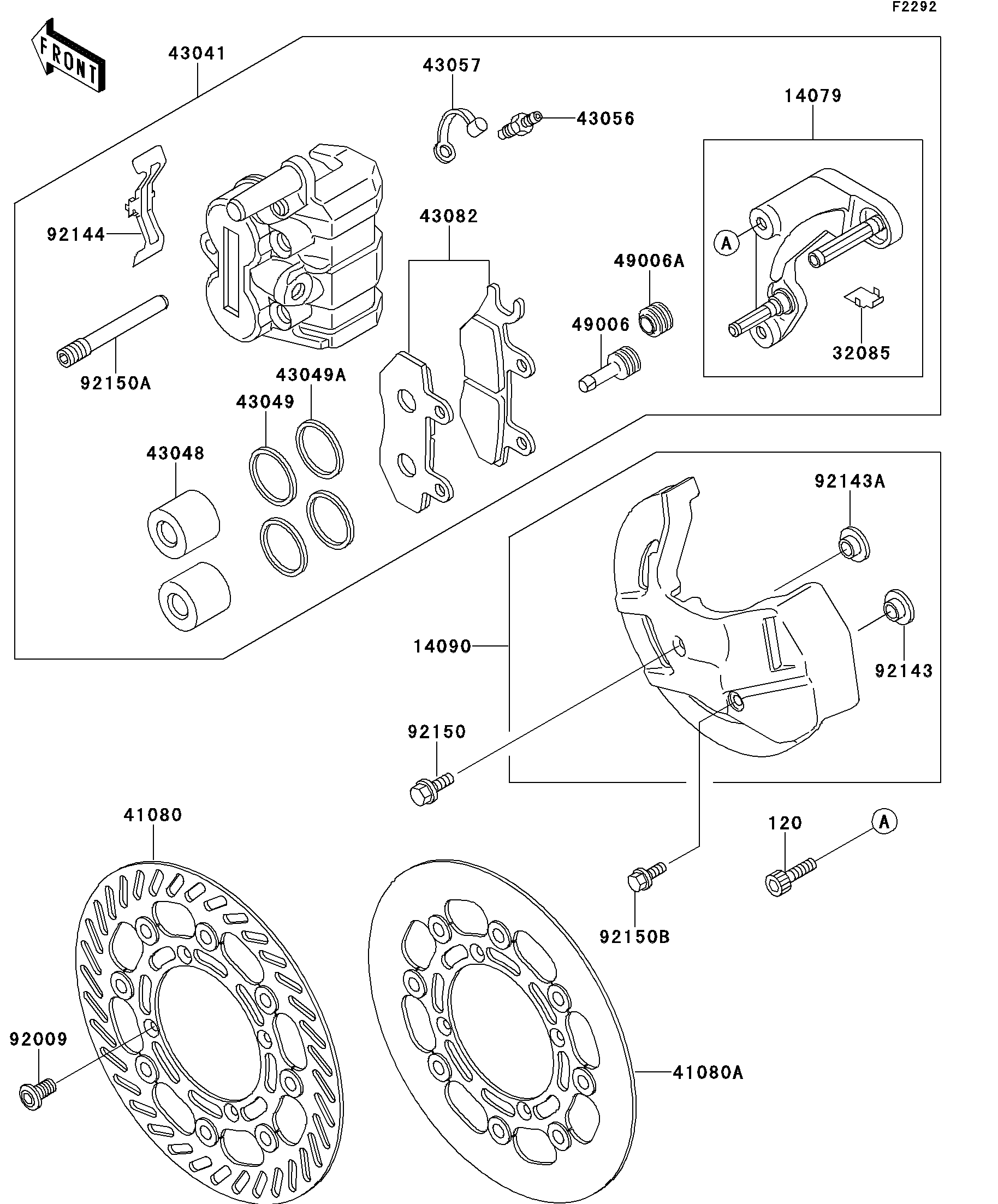

1993 KX250 - Front Caliper

DOWNLOAD PDF
SELECT A NEW PART
120
14079
14090
32085
41080
41080A
43041
43048
43049
43049A
43056
43057
43082
49006
49006A
92009
92143
92143A
92144
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X35 120 120P0835 2
HOLDER-ASSY,FRONT CALIPER 14079 14079-1088 1
COVER,DISC,P.WHITE 14090 14090-1272-6F 1
STOPPER,PAD 32085 32085-1314 1
DISC,FR 41080 41080-1354 1
DISC,FR 41080A 41080-1365 1 (OPTION)
CALIPER-ASSY,FR,LH 43041 43041-1462 1
PISTON-CALIPER 43048 43048-1064 2
PACKING,PISTON SEAL 43049 43049-1060 2
PACKING,PISTON SEAL 43049A 43049-1061 2
BREATHER-BRAKE 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
PAD-ASSY-BRAKE 43082 43082-1117 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
SCREW,6X14 92009 92009-1546 4
COLLAR 92143 92143-1196 1
COLLAR 92143A 92143-1612 1
SPRING,PAD 92144 92144-1636 1
BOLT,SOCKET,10X16 92150 92150-1111 1
BOLT 92150A 92150-1144 2
BOLT,6X14 92150B 92150-1340 1
