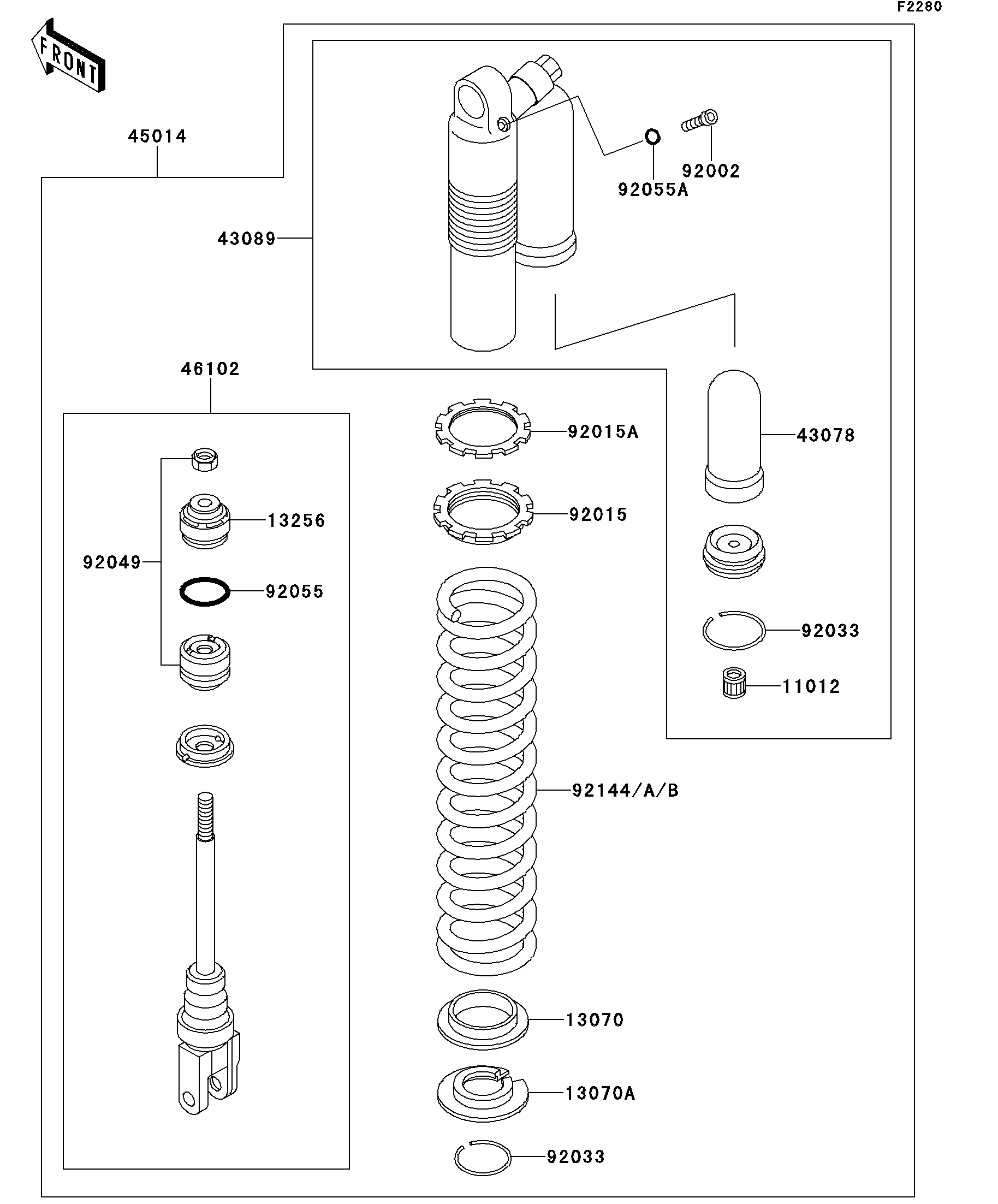

1993 KX250 - Shock Absorber

DOWNLOAD PDF
SELECT A NEW PART
11012
13070
13070A
13256
43078
43089
45014
46102
92002
92015
92015A
92033
92033
92049
92055
92055A
92144
92144A
92144B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1276 1
GUIDE,SPRING 13070 13070-1161 1
GUIDE,SPRING 13070A 13070-1165 1
PISTON,SHOCKABSORBER 13256 13256-1057 1
RESERVOIR,SHOCKABSORBER 43078 43078-1125 1
CYLINDER-SHOCKABSORBER 43089 43089-1150 1
SHOCKABSORBER,BLUE NO.1 45014 45014-1540-W1 1
ROD,SHOCKABSORBER 46102 46102-1337 1
BOLT,DRAIN 92002 92002-1955 1
NUT,SPRING ADJUST 92015 92015-1703 1
NUT,SPRING ADJUST LOCK 92015A 92015-1704 1
RING-SNAP 92033 92033-1209 2
SEAL-OIL 92049 92049-1407 1
RING-O,ROD 92055 92055-1346 1
RING-O 92055A 92055-1383 1
SPRING,SHOCKABSORBER,K=4.5,BLU 92144 92144-1501-W1 1 (OPTION)
SPRING,SHOCKABOSRBER,K=4.9,BLU 92144A 92144-1503-W1 1 (OPTION)
SPRING,SHOCKABSORBER,K=4.7,BLU 92144B 92144-1688-W1 1
