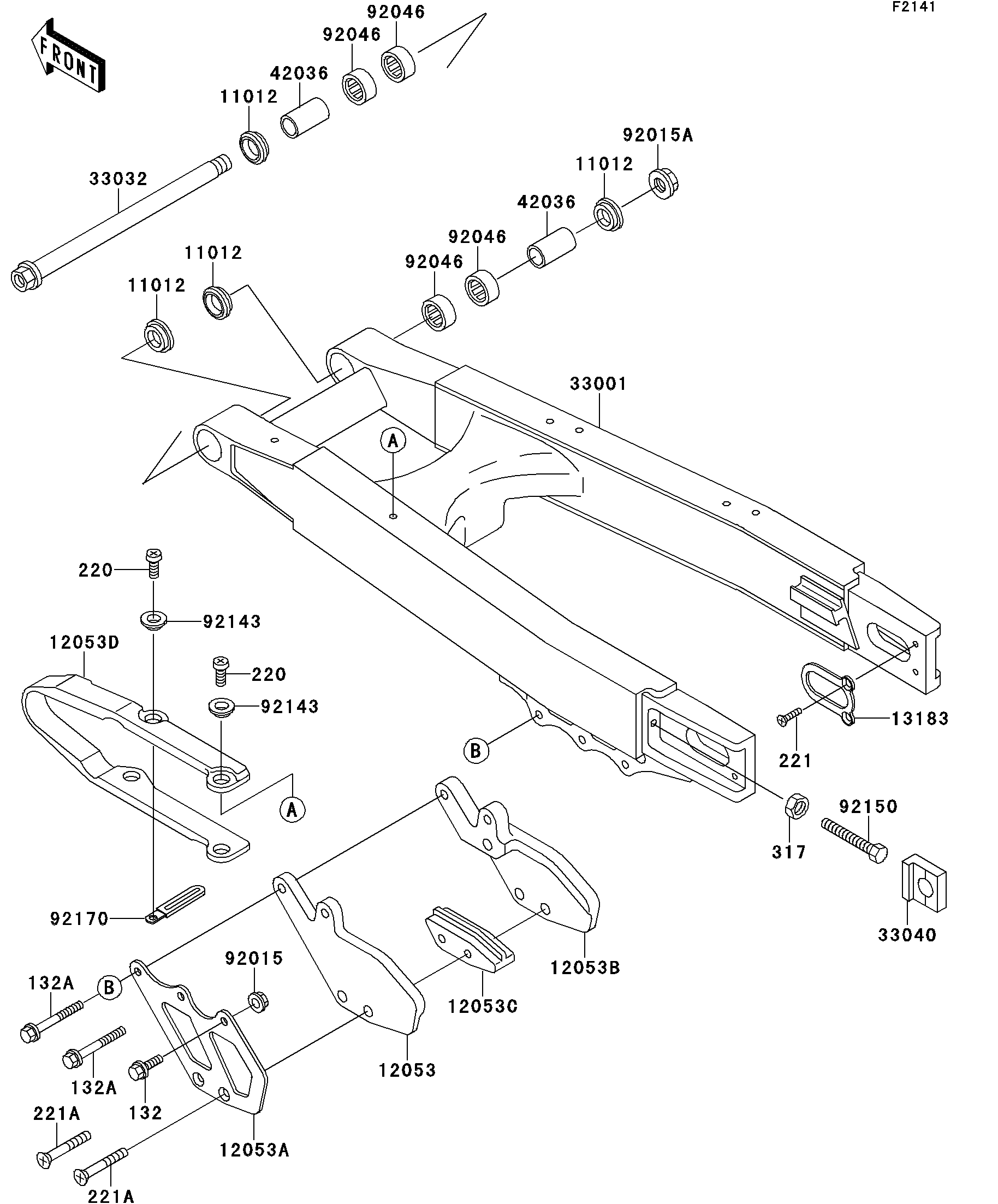

1993 KX250 - Swing Arm

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
12053
12053A
12053B
12053C
12053D
13183
132
132A
132A
220
220
221
221A
221A
317
33001
33032
33040
42036
42036
92015
92015A
92046
92046
92046
92046
92143
92143
92150
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM PIPOT 11012 11012-1790 4
GUIDE-CHAIN,RR,INSIDE 12053 12053-1234 1
GUIDE-CHAIN,RR,OUTSIDE 12053A 12053-1235 1
GUIDE-CHAIN,RR,OUTSIDE 12053B 12053-1236 1
GUIDE-CHAIN,DRIVE,RR,INSIDE 12053C 12053-1270 1
GUIDE-CHAIN,DRIVE,FR 12053D 12053-1278 1
PLATE 13183 13183-1867 2
BOLT-FLANGED-SMALL 132 132G0616 1
BOLT-FLANGED-SMALL 132A 132G0635 2
SCREW-PAN-CROS,6X10 220 220B0610 4
SCREW-CSK-CROS 221 221B0510 4
SCREW-CSK-CROS,6X45 221A 221B0645 2
NUT-HEX-SMALL,8MM 317 317G0800 2
ARM-COMP-SWING,SILVER NO.25 33001 33001-1406-CE 1
SHAFT-SWING ARM 33032 33032-1167 1
ADJUSTER-CHAIN 33040 33040-1129 2
SLEEVE,SWING ARM,L=43 42036 42036-1289 2
NUT,FLANGED,6MM 92015 92015-1078 1
NUT,FLANGED,16MM 92015A 92015-1316 1
BEARING-NEEDLE,HK2212/8A 92046 92046-1214 4
COLLAR 92143 92143-1156 4
BOLT,8X55 92150 92150-1385 2
CLAMP,CARBURETOR HOSE 92170 92170-1113 1
