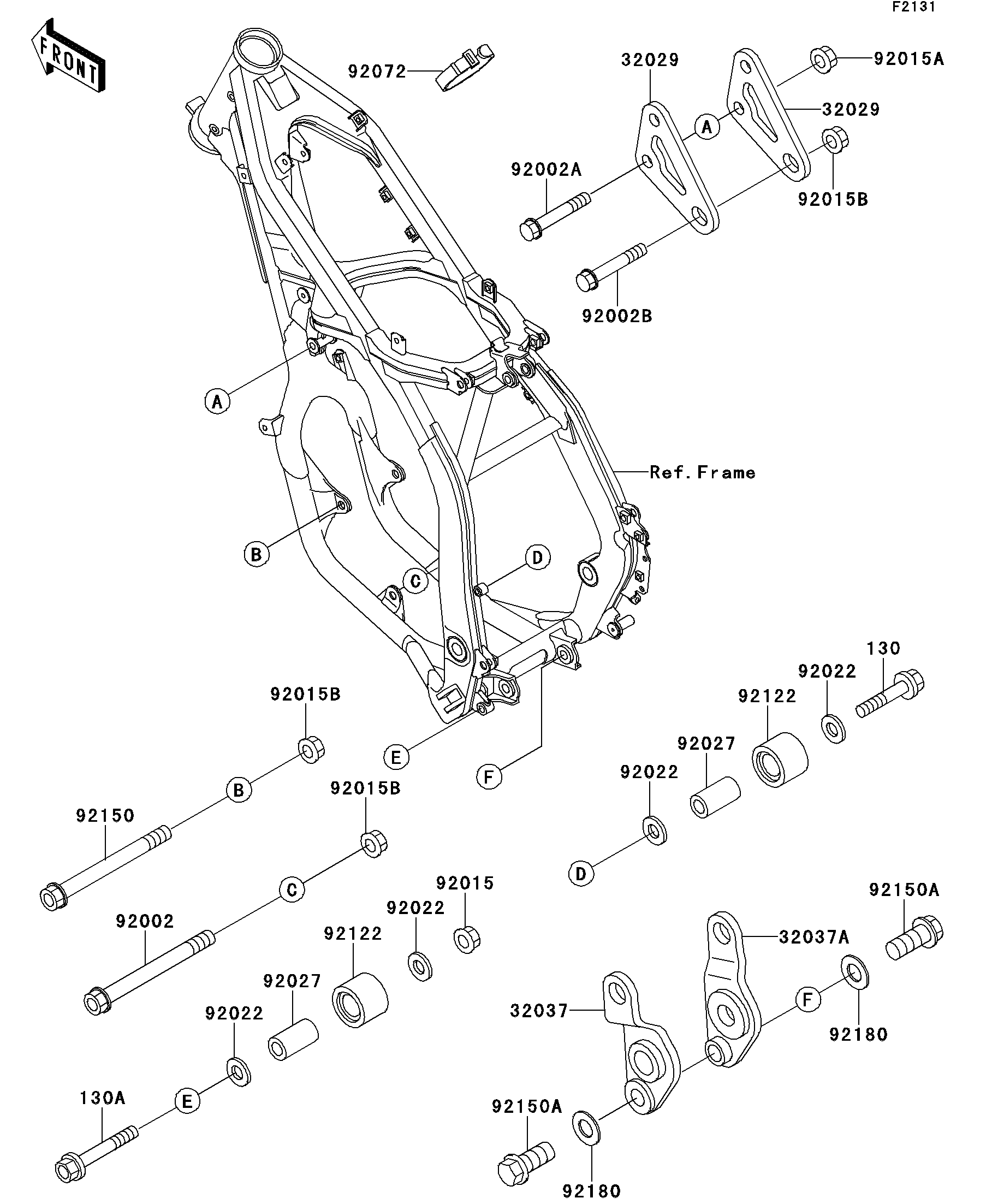

Parts Diagrams |
130
130A
32029
32029
32037
32037A
92002
92002A
92002B
92015
92015A
92015B
92015B
92015B
92022
92022
92022
92022
92027
92027
92072
92122
92122
92150
92150A
92150A
92180
92180
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X40 | 130 | 130G0840 | 1 | ||
| BOLT-FLANGED,8X55 | 130A | 130G0855 | 1 | ||
| BRACKET-ENGINE | 32029 | 32029-1791 | 2 | ||
| BRACKET-SHOCKABSORBER,LWR,LH | 32037 | 32037-1581 | 1 | ||
| BRACKET-SHOCKABSORBER,LWR,RH | 32037A | 32037-1582 | 1 | ||
| BOLT,FLANGED,10X105 | 92002 | 92002-1491 | 1 | ||
| BOLT,FLANGED,8X52 | 92002A | 92002-1857 | 2 | ||
| BOLT,FLANGED,10X53 | 92002B | 92002-1936 | 1 | ||
| NUT,8MM | 92015 | 92015-1143 | 1 | ||
| NUT,8MM | 92015A | 92015-1432 | 2 | ||
| NUT,FLANGED,10MM | 92015B | 92015-1502 | 3 | ||
| WASHER,8.5X22X1.5 | 92022 | 92022-1629 | 4 | ||
| COLLAR,CHAIN ROLLER | 92027 | 92027-1670 | 2 | ||
| BAND,L=186 | 92072 | 92072-056 | 3 | ||
| ROLLER,CHAIN GUIDE | 92122 | 92122-1153 | 2 | ||
| BOLT,FLANGED,10X95 | 92150 | 92150-1230 | 1 | ||
| BOLT,FLANGED,12X27 | 92150A | 92150-1359 | 2 | ||
| SHIM,12.5X24X0.5 | 92180 | 92180-1060 | 2 |
| BOLT-FLANGED,8X40 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X55 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE | |
| REF # | 32029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SHOCKABSORBER,LWR,LH | |
| REF # | 32037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SHOCKABSORBER,LWR,RH | |
| REF # | 32037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X105 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X52 | |
| REF # | 92002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X53 | |
| REF # | 92002B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,10MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X22X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,CHAIN ROLLER | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,L=186 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ROLLER,CHAIN GUIDE | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X95 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X27 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHIM,12.5X24X0.5 | |
| REF # | 92180 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
