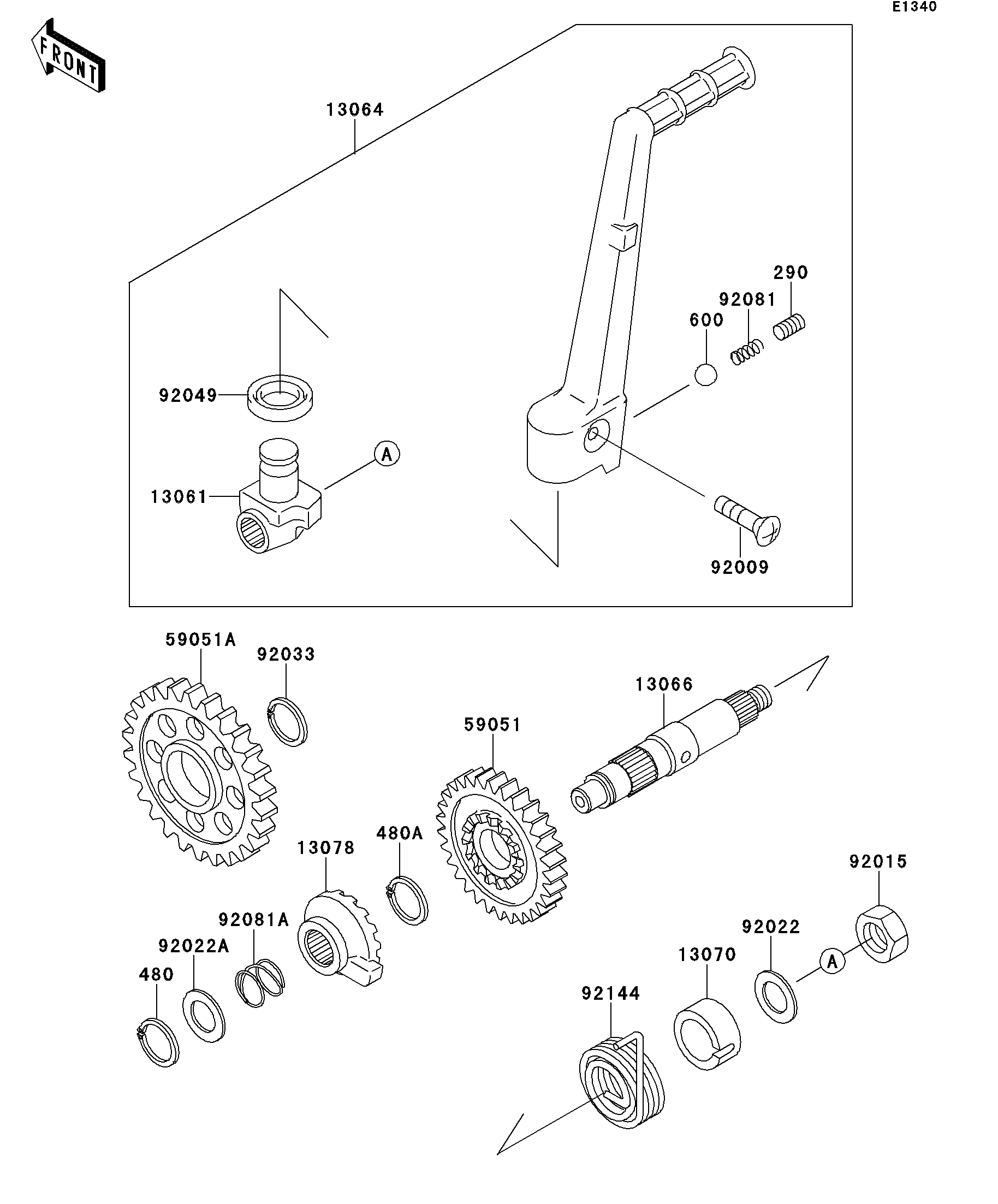

1993 KX250 - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13061
13064
13066
13070
13078
290
480
480A
59051
59051A
600
92009
92015
92022
92022A
92033
92049
92081
92081A
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOSS,KICK PEDAL 13061 13061-1366 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1161 1
SHAFT-KICK 13066 13066-1068 1
GUIDE,KICK SPRING 13070 13070-1063 1
RATCHET 13078 13078-1063 1
SCREW-SET-SOCKET 290 290P0812 1
CIRCLIP-TYPE-C,16MM 480 480J1600 1
CIRCLIP-TYPE-C,18MM 480A 480J1800 1
GEAR-SPUR 59051 59051-1223 1
GEAR,KICKSTARTER IDLE,26T 59051A 59051-1271 1
"BALL-STEEL,1/4",,2017-03-16 13:30: 600 600A0800 1
SCREW,6X30 92009 92009-1590 1
NUT 92015 92015-1902 1
WASHER,18.3X22X0.5 92022 92022-271 1
WASHER,16.8X22X0.5 92022A 92022-315 1
RING-SNAP,18MM 92033 92033-029 1
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICKSTARTER 92144 92144-1076 1
