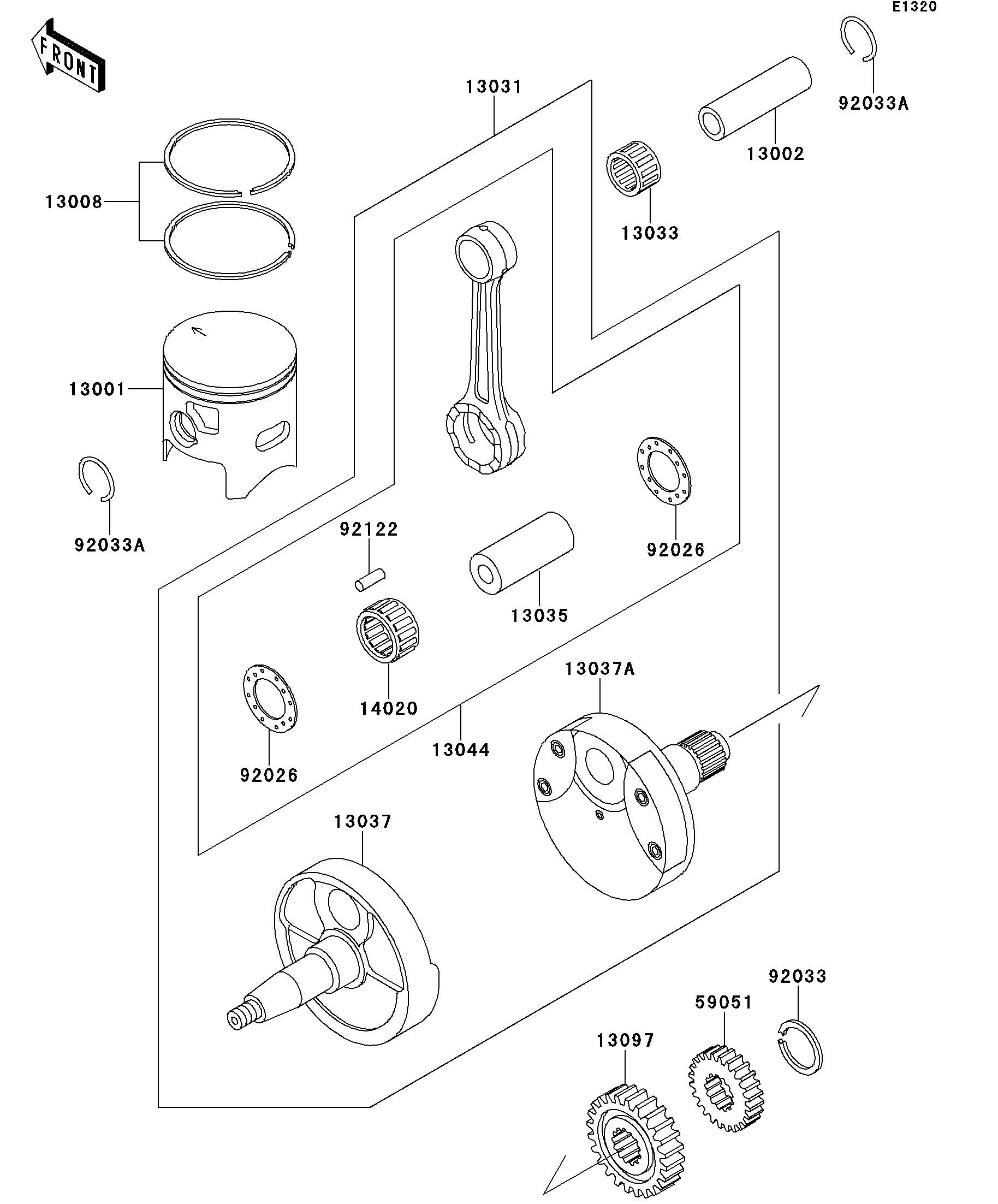

Parts Diagrams |
13001
13002
13008
13031
13033
13035
13037
13037A
13044
13097
14020
59051
92026
92026
92033
92033A
92033A
92122
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE,(B) | 13001 | 13001-1375 | 1 | ||
| PIN-PISTON | 13002 | 13002-1068 | 1 | ||
| RING-SET-PISTON | 13008 | 13008-1141 | 1 | ||
| CRANKSHAFT-COMP | 13031 | 13031-1347 | 1 | ||
| BEARING-NEEDLE,KBK18X22X23.8X | 13033 | 13033-1010 | 1 | ||
| PIN-CRANK | 13035 | 13035-034 | 1 | ||
| CRANKSHAFT,LH | 13037 | 13037-1434 | 1 | ||
| CRANKSHAFT,RH | 13037A | 13037-1435 | 1 | ||
| SET-CONNECTING ROD | 13044 | 13044-5056 | 1 | ||
| GEAR-PRIMARY SPUR,20T | 13097 | 13097-1308 | 1 | ||
| RETAINER | 14020 | 14020-1066 | 1 | ||
| GEAR-SPUR,27T | 59051 | 59051-1248 | 1 | ||
| SPACER,24X42X1.6 | 92026 | 92026-1241 | 2 | ||
| RING-SNAP,20X25.5X1.2 | 92033 | 92033-025 | 1 | ||
| RING-SNAP,PISTON PIN | 92033A | 92033-1267 | 2 | ||
| ROLLER | 92122 | 92122-1132 | 16 |
| PISTON-ENGINE,(B) | |
| REF # | 13001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 13002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SET-PISTON | |
| REF # | 13008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT-COMP | |
| REF # | 13031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,KBK18X22X23.8X | |
| REF # | 13033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-CRANK | |
| REF # | 13035 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,LH | |
| REF # | 13037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CRANKSHAFT,RH | |
| REF # | 13037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SET-CONNECTING ROD | |
| REF # | 13044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-PRIMARY SPUR,20T | |
| REF # | 13097 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER | |
| REF # | 14020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR-SPUR,27T | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,24X42X1.6 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,20X25.5X1.2 | |
| REF # | 92033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-SNAP,PISTON PIN | |
| REF # | 92033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 16 |
| DESTINATION | |
| REMARKS | |
