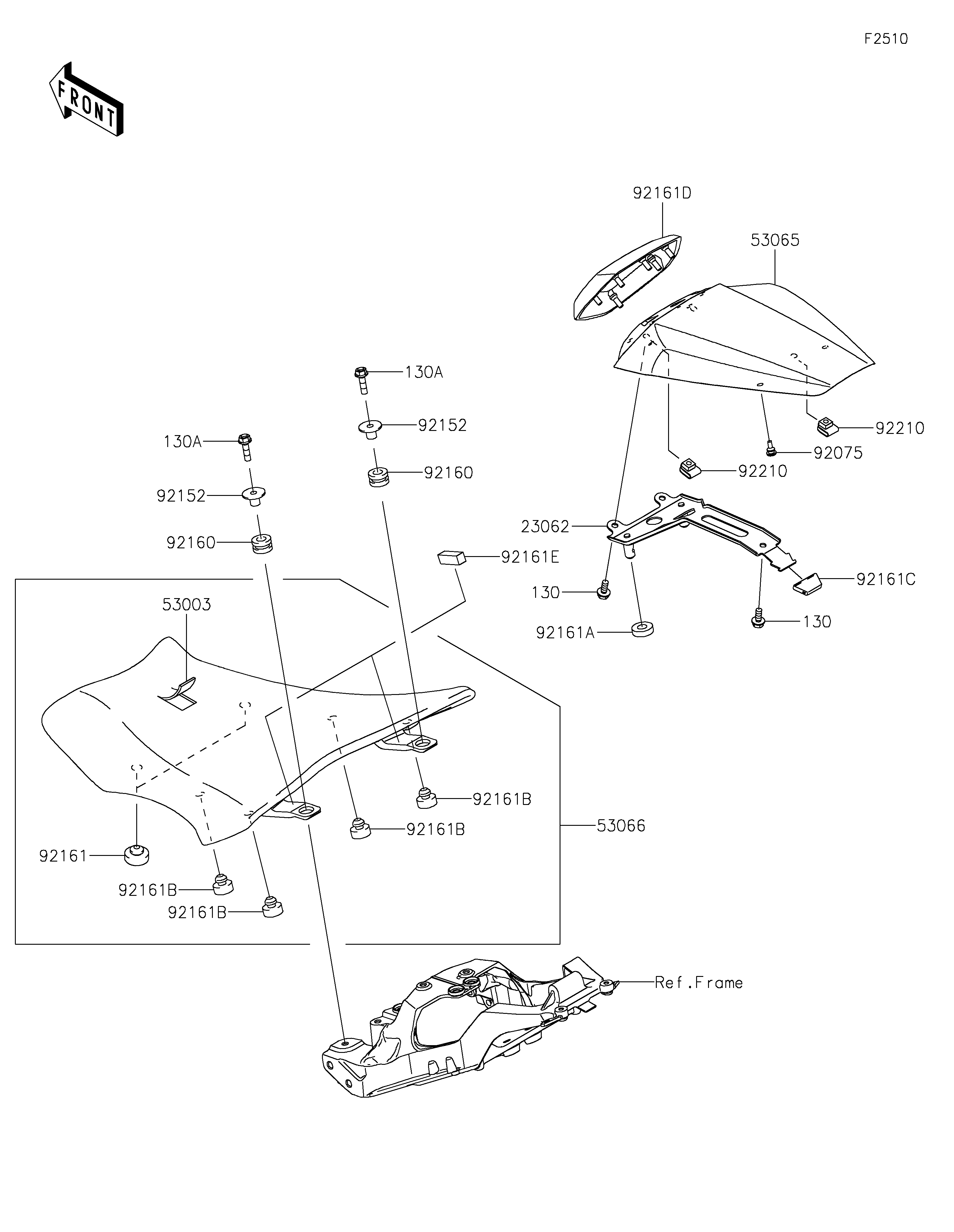

2019 NINJA® ZX™-10RR - Seat

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
23062
53003
53065
53066
92075
92152
92152
92160
92160
92161
92161A
92161B
92161B
92161B
92161B
92161C
92161D
92161E
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BA0614 3
BOLT-FLANGED,6X22 130A 130BA0622 2
BRACKET-COMP 23062 23062-0861 1
LEATHER,FR SEAT,BLACK 53003 53003-0209-MA 1
COVER SEAT,L.GREEN 53065 53065-0038-777 1
SEAT-ASSY,FR,BLACK 53066 53066-0601-MA 1
DAMPER,6X10X15 92075 92075-1808 2
COLLAR 92152 92152-0365 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER,SEAT,10X25X8 92161 92161-0095 2
DAMPER 92161A 92161-0174 2
DAMPER,8X20X8 92161B 92161-0223 4
DAMPER 92161C 92161-0629 1
DAMPER,SEAT PAD 92161D 92161-1812 1
DAMPER,10X30X10 92161E 92161-1835 2
NUT,6MM 92210 92210-0277 3
