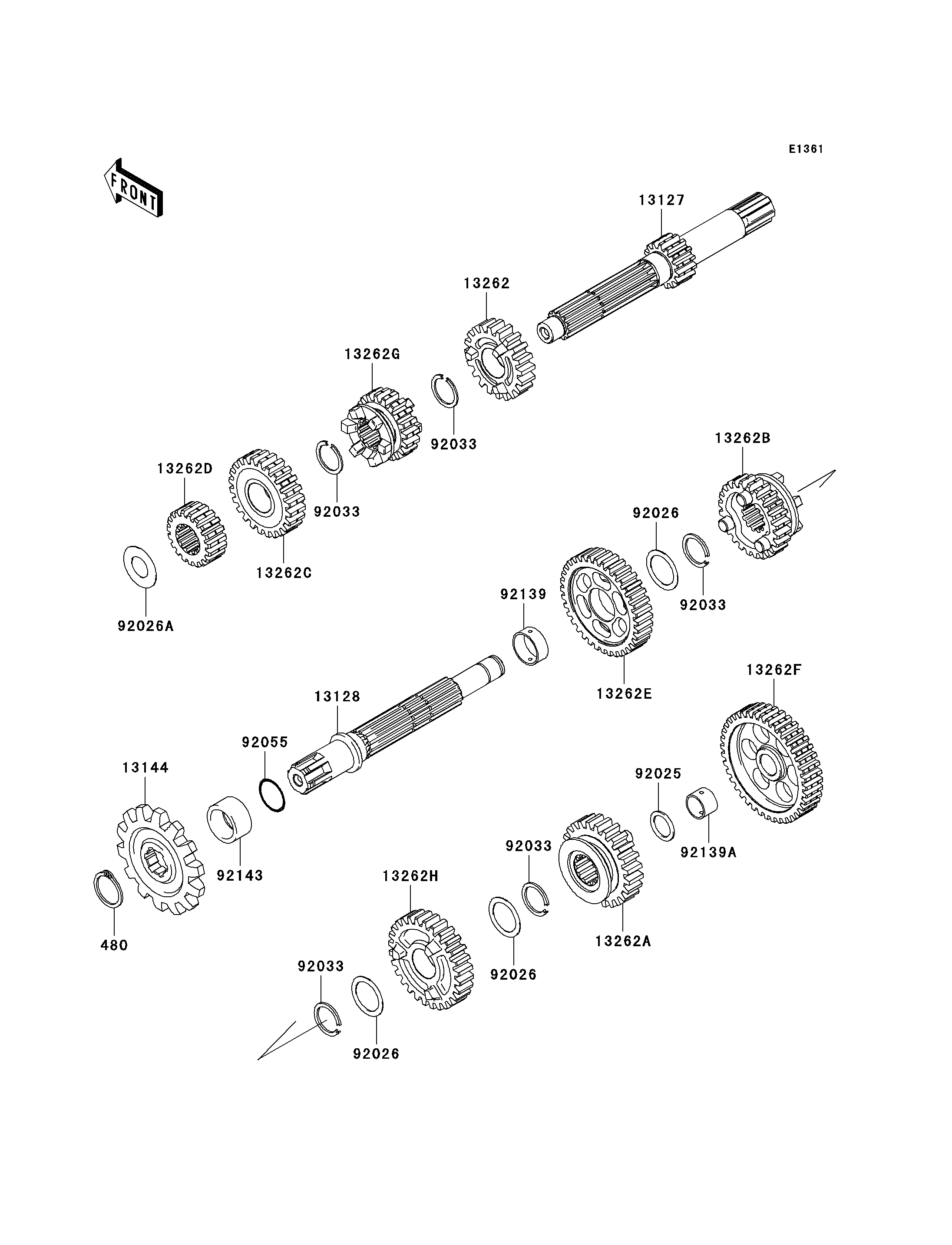

2009 KLX®140 - Transmission(A8F-A9FA)

DOWNLOAD PDF
SELECT A NEW PART
480
13127
13128
13144
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
13262H
92025
92026
92026
92026
92026A
92033
92033
92033
92033
92033
92055
92139
92139A
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,17MM 480 480J1700 1
SHAFT-TRANSMISSION INPUT,15T 13127 13127-0058 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1258 1
SPROCKET-OUTPUT,14T 13144 13144-0049 1
GEAR,INPUT 4TH,22T 13262 13262-0454 1
GEAR,OUTPUT 4TH,26T 13262A 13262-0459 1
GEAR,OUTPUT 5TH,24T 13262B 13262-0502 1
GEAR,INPUT 5TH,24T 13262C 13262-0552 1
GEAR,INPUT 2ND,19T 13262D 13262-0577 1
GEAR,OUTPUT 2ND,36T 13262E 13262-0578 1
GEAR,OUTPUT LOW,40T 13262F 13262-0579 1
GEAR,INPUT 3RD,19T 13262G 13262-0662 1
GEAR,OUTPUT 3RD,28T 13262H 13262-0663 1
SHIM 92025 92025-1280 1
SPACER,17.2X23X0.5 92026 92026-1037 3
SPACER 92026A 92026-1610 1
RING-SNAP,17MM 92033 92033-1060 5
RING-O,16.8X1.9 92055 92055-0151 1
BUSHING 92139 92139-0001 1
BUSHING 92139A 92139-0002 1
COLLAR,SPROCKET 92143 92143-1680 1
