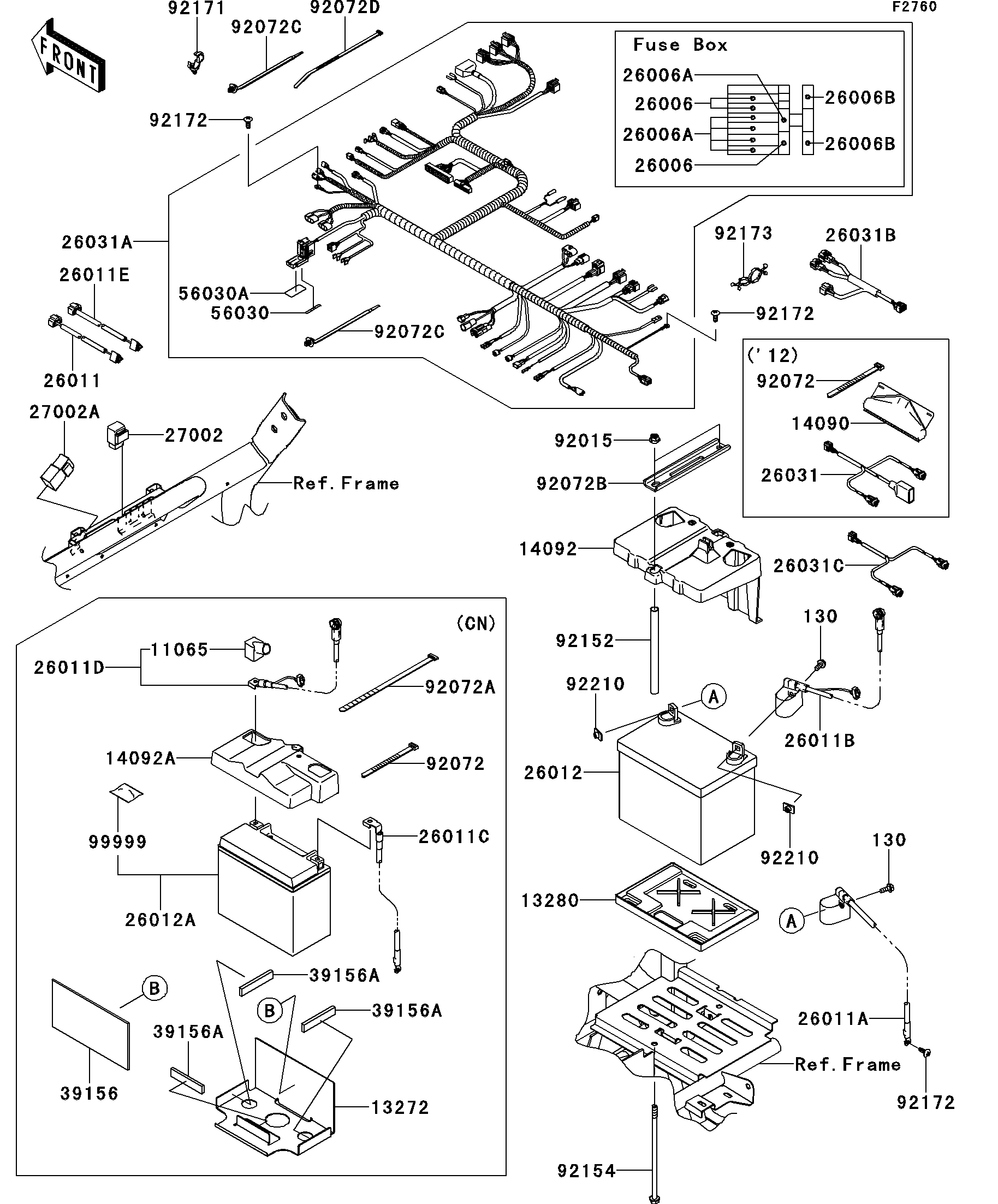

2013 TERYX4™ 750 4x4 (Canadian) - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13272
13272
13280
13280
14092
14092
14092A
14092A
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26011D
26011D
26011E
26011E
26012
26012
26012A
26012A
26031A
26031A
26031B
26031B
26031C
26031C
27002
27002
27002A
27002A
39156
39156
39156A
39156A
39156A
39156A
39156A
39156A
56030
56030
56030A
56030A
92015
92015
130
130
130
130
92072A
92072A
92072B
92072B
92072C
92072C
92072C
92072C
92072D
92072D
92152
92152
92154
92154
92171
92171
92172
92172
92172
92172
92172
92172
92173
92173
92210
92210
92210
92210
99999
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-0755 1 CN
PLATE,BATTERY BOTTOM 13272 13272-1322 1 CN
HOLDER,BATTERY 13280 13280-0709 1
COVER,BATTERY 14092 14092-0753 1 US
COVER,BATTERY 14092A 14092-0978 1 CN
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 3
FUSE,MINI BLADE,10A,RED 26006A 26006-0009 5
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
WIRE-LEAD,HEAD LAMP,LH 26011 26011-0276 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0713 1 US
WIRE-LEAD,BATTERY(+) 26011B 26011-0714 1 US
WIRE-LEAD,BATTERY(-) 26011C 26011-0725 1 CN
WIRE-LEAD,BATTERY(+) 26011D 26011-0726 1 CN
WIRE-LEAD,HEAD LAMP,RH 26011E 26011-0759 1
BATTERY,12V 14AH 26012 26012-0107 1 US
BATTERY,YTX20L-BS,12V 18AH 26012A 26012-3730 1 CN
HARNESS,MAIN 26031A 26031-1150 1
HARNESS,SUB,TPS 26031B 26031-1264 1
HARNESS,SUB 26031C 26031-1439 1
RELAY-ASSY 27002 27002-1062 1
RELAY-ASSY 27002A 27002-1086 1
PAD,175X94X3 39156 39156-0837 1 CN
PAD,15X72X5 39156A 39156-0838 3 CN
LABEL,FUSE BOX,30A 56030 56030-0404 1
LABEL,FUSE BOX 56030A 56030-0703 1
NUT,FLANGED,8MM 92015 92015-1406 2
BOLT-FLANGED,6X16 130 130BA0616 2 US
BAND,L=218 92072A 92072-032 1 CN
BAND 92072B 92072-0707 1
BAND 92072C 92072-1414 12
BAND,L=292.1 92072D 92072-3509 20
COLLAR,10.2X12.7X165.8 92152 92152-1555 2
BOLT,FLANGED,8X185 92154 92154-0889 2
CLAMP,DIA=13 92171 92171-1415 8
SCREW,TAPPING,6X16 92172 92172-0739 3
CLAMP,PURSE LOCK 92173 92173-0962 1
NUT,PLATE,6MM 92210 92210-1352 2 US
BOLT NUT KIT 99999 99999-0311 1 CN
BAND,L=123 92072 92072-030 1 CN
